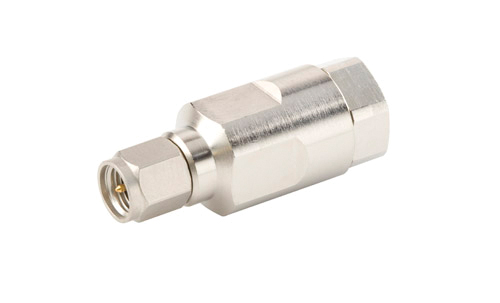

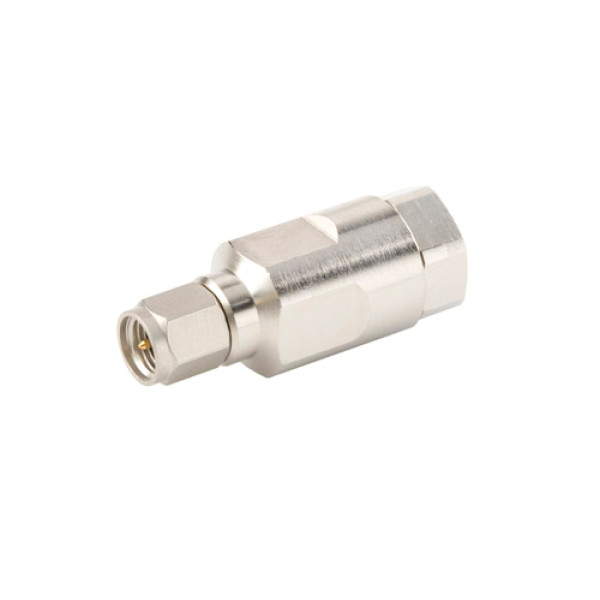

F1TSM-C Andrew SMA Male Connector for FSJ1-50 Cable 6 GHz
In Stock
$36.91
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 6000 MHz
- Cable Impedance: 50 ohm
MFR: Andrew / CommScope
SKU: F1TSM-C
Details
F1TSM-C Andrew SMA Male Connector for FSJ1-50 Cable 6 GHz
General Specifications
- Interface: SMA Male
- Body Style: Straight
- Brand: HELIAX®
- Mounting Angle: Straight
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 6000 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical: -112 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 500.00 V
- dc Test Voltage:1000 V
- Outer Contact Resistance, maximum: 2.50 mOhm
- Inner Contact Resistance, maximum: 3.00 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Average Power: 0.4 kW @ 900 MHz
- Peak Power, maximum: 5.00 kW
- Shielding Effectiveness: -110 dB
MFR: Andrew / CommScope
