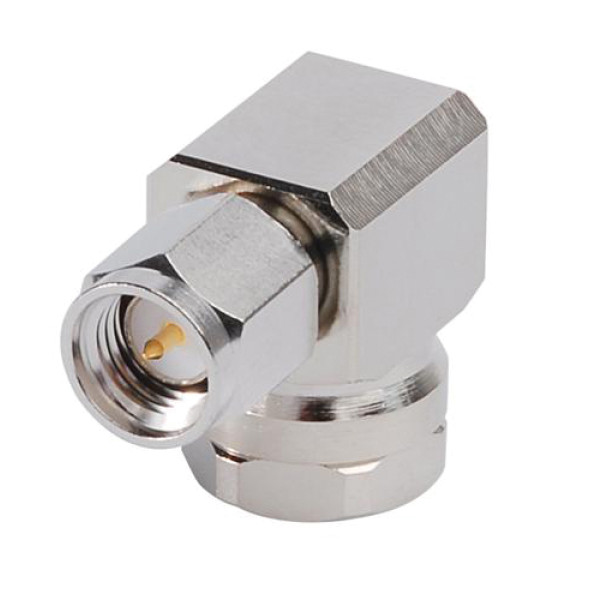

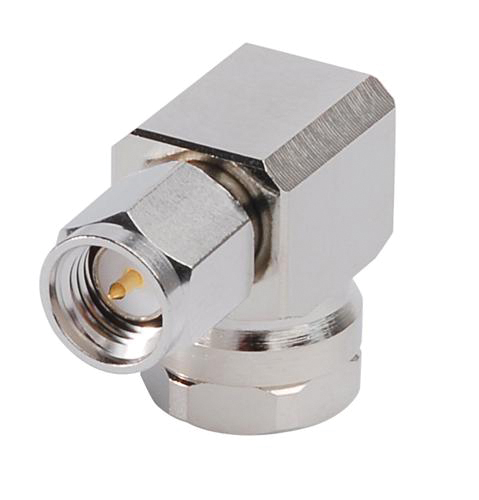

F1TSR Andrew SMA Male Right Angle Connector for FSJ1-50 Cable (Good to 6 GHz)
In Stock
$37.91
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 6000 MHz
- Cable Impedance: 50 ohm
MFR: Andrew / Commscope
SKU: F1TSR
Details
F1TSR Andrew SMA Male Right Angle Connector for FSJ1-50 Cable (Good to 6 GHz)
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 6000 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical: -112 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (vrms): 500.00 V
- dc Test Voltage:1000 V
- Outer Contact Resistance, maximum: 2.50 mOhm
- Inner Contact Resistance, maximum: 3.00 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Average Power: 0.4 kW @ 900 MHz
- Peak Power, maximum: 5.00 kW
- Shielding Effectiveness: -110 dB
MFR: Andrew / Commscope
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | ANDREW / COMMSCOPE |
