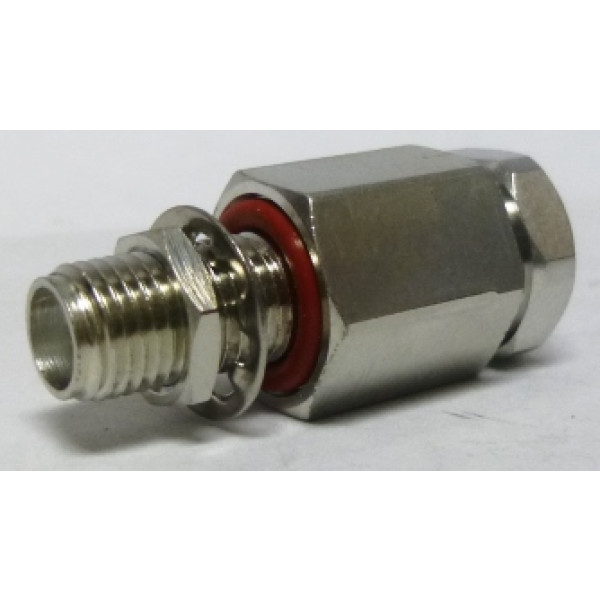

F1TSF-BH Andrew SMA Female Bulkhead Connector for FSJ1-50A Cable
In Stock
$33.91
F1TSF-BH SMA Female Bulkhead Connector, FSJ1-50A (Good to 18 GHz)
MFR: Andrew / Commscope
SKU: F1TSF-BH
Details
F1TSF-BH Andrew SMA Female Bulkhead Connector for FSJ1-50A Cable
| General Specifications | |
| Interface | SMA Female |
| Body Style | Bulkhead |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 18000 MHz |
| Cable Impedance | 50 ohm |
| RF Operating Voltage, maximum (vrms) | 500.00 V |
| dc Test Voltage | 1000 V |
| Outer Contact Resistance, maximum | 2.50 mOhm |
| Inner Contact Resistance, maximum | 3.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.4 kW @ 900 MHz |
| Peak Power, maximum | 5.00 kW |
| Shielding Effectiveness | -110 dB |
| Outline Drawing | |
| Mechanical Specifications | |
| Outer Contact Attachment Method | Tab-flare |
| Inner Contact Attachment Method | Solder |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Gold |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Connector Retention Tensile Force | 355 N | 80 lbf |
| Connector Retention Torque | 1.00 N-m | 0.74 ft lb |
| Insertion Force | 97.86 N | 22.00 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Pressurizable | No |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.11 |
| Dimensions | |
| Nominal Size | 1/4 in |
| Diameter | 12.50 mm | 0.49 in |
| Height | 12.50 mm | 0.49 in |
| Length | 22.67 mm | 0.89 in |
| Weight | 10.57 g | 0.02 lb |
| Width | 12.50 mm | 0.49 in |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11 |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 824–2700 MHz | 1.11 | 25.60 |
| 3000–6000 MHz | 1.14 | 23.60 |
| 6000–8000 MHz | 1.14 | 23.60 |
| 8000–10000 MHz | 1.19 | 21.20 |
| 10000–12000 MHz | 1.25 | 19.00 |
| 12000–14000 MHz | 1.25 | 19.00 |
| 14000–18000 MHz | 1.33 | 17.00 |
