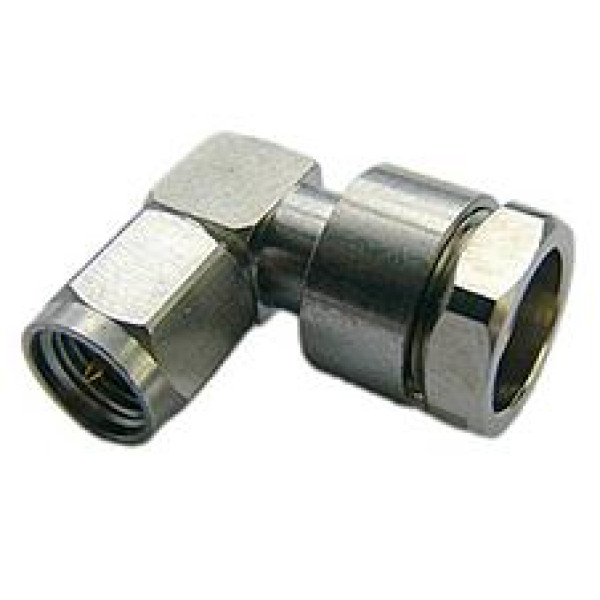

F1TSR-HF SMA Male Connector, Right Angle, FSJ1-50, Andrew
In Stock
$52.95
F1TSR-HF Connector, SMA Male Right Angle for 1/4 in FSJ1-50A cable (Good to 18 GHz), MFR: Andrew / Commscope
Details
F1TSR-HF Connector, SMA Male Right Angle for 1/4 in FSJ1-50A cable (Good to 18 GHz)
MFR: Andrew / Commscope
| General Specifications | |
| Interface | SMA Male |
| Body Style | Right angle |
| Brand | HELIAX® |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 18000 MHz |
| Cable Impedance | 50 ohm |
| RF Operating Voltage, maximum (vrms) | 565.00 V |
| dc Test Voltage | 1000 V |
| Outer Contact Resistance, maximum | 2.50 mOhm |
| Inner Contact Resistance, maximum | 3.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.4 kW @ 900 MHz |
| Peak Power, maximum | 2.50 kW |
| Outline Drawing | |
 Click on image below to enlarge. |
|
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | N/A |
| Call For Price | N/A |
| Manufacturer Name | TALLEY INC. |
