F1TSM-HF Andrew SMA Male Connector for FSJ1-50 Cable (Good to 18 GHz)

In Stock

$49.91

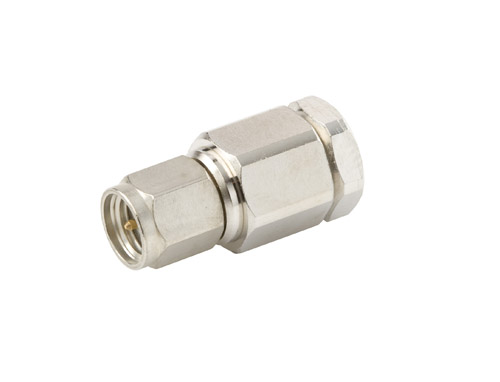

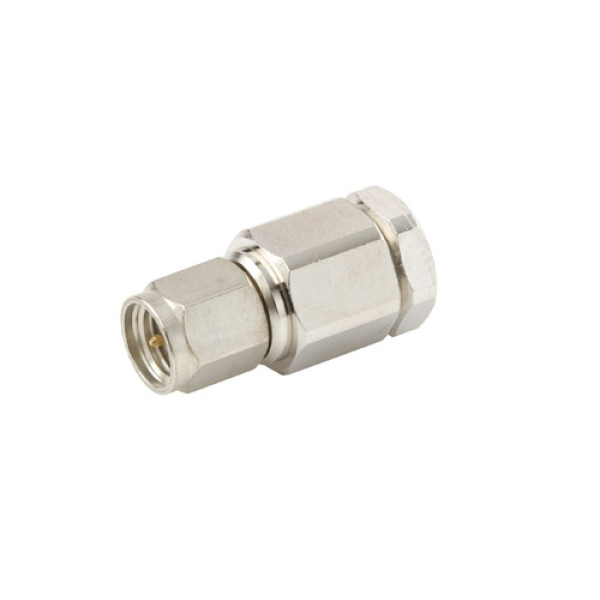

F1TSM-HF SMA Male Connector, FSJ1-50 (Good to 18 GHz)

MFR: Andrew / Commscope
SKU: F1TSM-HF

Details

F1TSM-HF Andrew SMA Male Connector for FSJ1-50 Cable (Good to 18 GHz)

MFR: Andrew / Commscope

General Specifications
Interface	SMA Male
Body Style	Straight
Brand	HELIAX®
Mounting Angle	Straight

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 18000 MHz
Cable Impedance	50 ohm
RF Operating Voltage, maximum (vrms)	500.00 V
dc Test Voltage	1000 V
Outer Contact Resistance, maximum	2.50 mOhm
Inner Contact Resistance, maximum	3.00 mOhm
Insulation Resistance, minimum	5000 MOhm
Average Power	0.4 kW @ 900 MHz
Peak Power, maximum	5.00 kW
Shielding Effectiveness	-110 dB

Outline Drawing
Click on image below to enlarge.


Mechanical Specifications
Outer Contact Attachment Method	Tab-flare
Inner Contact Attachment Method	Solder
Outer Contact Plating	Trimetal
Inner Contact Plating	Gold
Interface Durability	500 cycles
Interface Durability Method	IEC 61169-4:17
Connector Retention Tensile Force	450 N \| 101 lbf
Insertion Force	97.86 N \| 22.00 lbf
Insertion Force Method	IEC 61169-16:9.3.5
Pressurizable	No
Coupling Nut Proof Torque	1.70 N-m \| 1.25 ft lb
Coupling Nut Proof Torque Method	IEC 61169-16:9.3.11
Coupling Nut Retention Force	267.00 N \| 60.02 lbf
Coupling Nut Retention Force Method	IEC 61169-15:9.3.11

Dimensions
Nominal Size	1/4 in
Diameter	11.50 mm \| 0.45 in
Height	11.50 mm \| 0.45 in
Length	22.89 mm \| 0.90 in
Weight	15.88 g \| 0.04 lb
Width	11.50 mm \| 0.45 in
