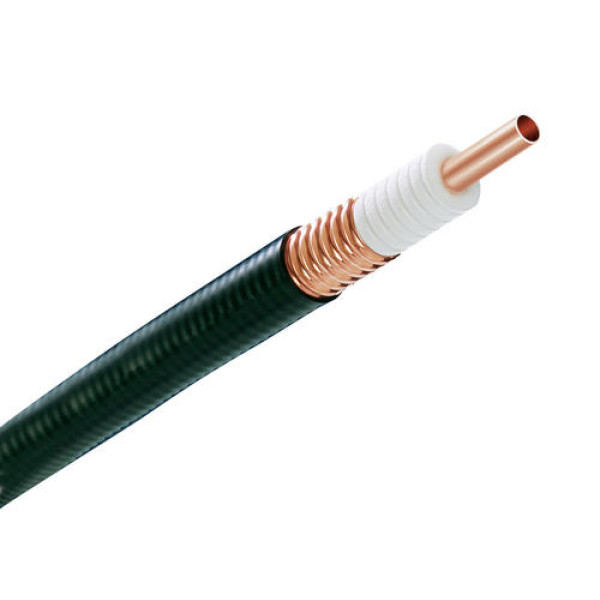

AVA5P-50-C HELIAX® Andrew Virtual Air™ 7/8" Coaxial Cable (AVA5-50)
In Stock
7/8" HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, black PE jacket (Halogen free jacketing non-fire-retardant) tested C-Band and CBRS qualified. (AVA5-50)
CommScope's HELIAX AVA5 and AVA6 C-band coaxial feeder cables deliver all the performance and value of the legacy HELIAX AVA products, with one important difference: Now, C-band has been enabled. Additionally, the AVA6 C-band coaxial feeder cable is uniquely optimized and tested to deliver a 0.5 dB gain in performance over AVA5-enabling MNOs to get even more from their C-band investment.
Sold by the foot * minimum 10 feet
Jacket Material: PE
Outer Conductor Material: Corrugated copper
Dielectric Material: Foam PE
Flexibility: Standard
Inner Conductor Material: Corrugated copper tube
Jacket Color: Black
Cable Impedance 50 ohm ±1 ohm
All HELIAX coaxial cables are jacketed for direct burial or for corrosive environmental conditions. Standard jacketing material is weather-resistant polyethylene suitable for use in extreme climates.
MFR: Commscope® / Andrew
SKU: AVA5P-50-C
Details

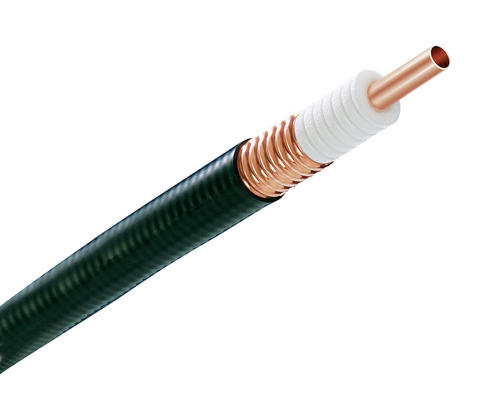

AVA5P-50-C HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, 7/8 in, black PE jacket (Halogen free jacketing non-fire-retardant) tested C-Band and CBRS qualified.
CommScope's HELIAX AVA5 and AVA6 C-band coaxial feeder cables deliver all the performance and value of the legacy HELIAX AVA products, with one important difference: Now, C-band has been enabled. Additionally, the AVA6 C-band coaxial feeder cable is uniquely optimized and tested to deliver a 0.5 dB gain in performance over AVA5-enabling MNOs to get even more from their C-band investment.
Sold by the foot * Minimum 10 feet
Product Classification
| Product Type | Coaxial wireless cable |
| Product Brand | HELIAX® |
| Product Series | AVA5-50 |
| Ordering Note | CommScope® standard product (Global) |
General Specifications
| Flexibility | Standard |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
| Specification Sheet Revision Level | B |
Dimensions
| Diameter Over Dielectric | 24.13 mm | 0.95 in |
| Diameter Over Jacket | 27.991 mm | 1.102 in |
| Inner Conductor OD | 9.4488 mm | 0.372 in |
| Outer Conductor OD | 25.4 mm | 1 in |
| Nominal Size | 7/8 in |
Electrical Specifications
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 73 pF/m | 22.25 pF/ft |
| dc Resistance, Inner Conductor | 1.435 ohms/km | 0.437 ohms/kft |
| dc Resistance, Outer Conductor | 1.116 ohms/km | 0.34 ohms/kft |
| dc Test Voltage | 6000 V |
| Inductance | 0.184 µH/m | 0.056 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 5000 MHz |
| Peak Power | 91 kW |
| Velocity | 91 % |
All HELIAX coaxial cables are jacketed for direct burial or for corrosive environmental conditions. Standard jacketing material is weather-resistant polyethylene suitable for use in extreme climates.
