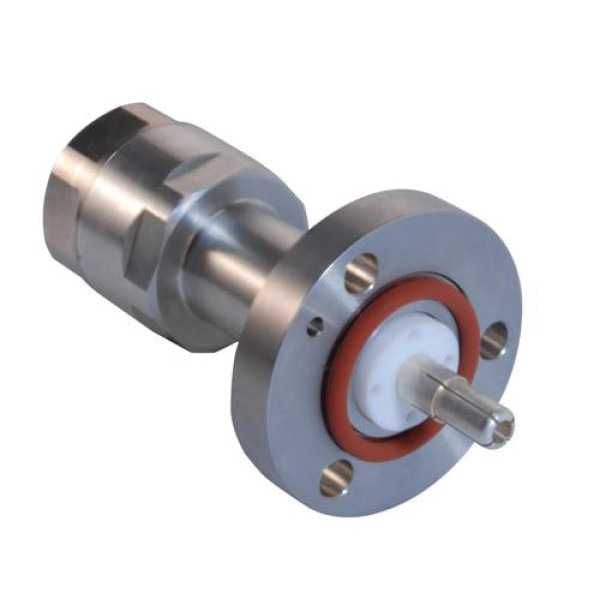

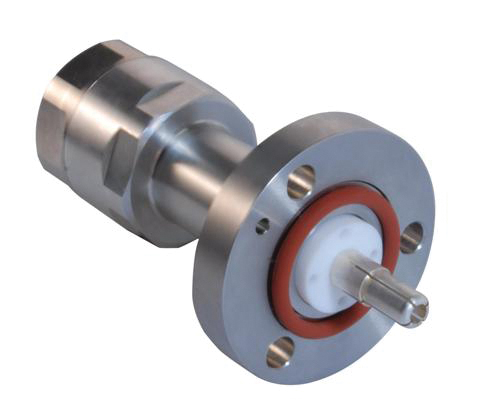

AL5E78-PS Andrew/CommScope 7/8" AVA5-50 EIA Flange Connector
In Stock
$95.90
7/8" EIA Flange Connector, Positive Stop™ for 7/8 in AVA5-50 and AL5-50 cable
Connector comes with center connector and hardware
MFR: Andrew/CommScope
SKU: AL5E78-PS
NOTE: FOR AVA5-50 CABLE EXCLUSIVELY. WILL NOT WORK ON AVA5-50FX.
Details
AL5E78-PS 7/8 in EIA Positive Stop™ for 7/8 in AVA5-50 and AL5-50 cable
Connector comes with center connector and hardware.
NOTE: FOR AVA5-50 CABLE EXCLUSIVELY. WILL NOT WORK ON AVA5-50FX.
| General Specifications | |
| Interface | 7/8 in EIA Flange |
| Body Style | Straight |
| Brand | HELIAX® | Positive Stop™ |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 5000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 2120.00 V |
| dc Test Voltage | 6000 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 1.50 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 2.3 kW @ 900 MHz |
| Peak Power, maximum | 90.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Shielding Effectiveness | -130 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Ring-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 50 cycles |
| Connector Retention Tensile Force | 1335 N | 300 lbf |
| Connector Retention Torque | 8.10 N-m | 71.69 in lb |
| Insertion Force | 66.72 N | 15.00 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 24.86 N-m | 220.00 in lb |
| Dimensions | |
| Nominal Size | 7/8 in |
| Diameter | 57.23 mm | 2.25 in |
| Length | 88.74 mm | 3.49 in |
| Weight | 340.21 g | 0.75 lb |
| Environmental Specifications | |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Unmated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Water Jetting Test Mating | Unmated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition I |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 50–1000 MHz | 1.04 | 35.00 |
| 1700–2200 MHz | 1.04 | 35.00 |
| 2400–2700 MHz | 1.07 | 30.00 |
| 3400–3600 MHz | 1.12 | 25.00 |
