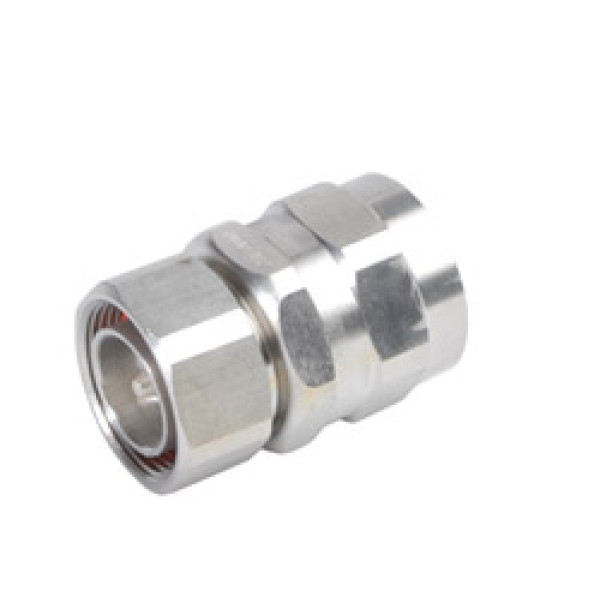

78EZDM Andrew 7/16 DIN Male EZfit® Connector for 7/8" AVA5-50 cable
In Stock
$42.91
78EZDM ANDREW 7/16 DIN Male EZfit® for 7/8 in FXL-780, AVA5-50, and AVA5-50FX Cable
MFR: Andrew / Commscope
SKU: 78EZDM
Details
78EZDM 7-16 DIN Male EZfit® for 7/8 in FXL-780 and AVA5-50 Cable
| General Specifications | |
| Interface | 7-16 DIN Male |
| Body Style | Straight |
| Brand | EZfit® |
| Harmonized System (HS) Code | 854420 (Coaxial cable and other coaxial electric conductors) |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 5000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 1415.00 V |
| dc Test Voltage | 4000 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.40 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Peak Power, maximum | 40.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Clamp |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Connector Retention Tensile Force | 1334 N | 300 lbf |
| Connector Retention Torque | 8.13 N-m | 72.00 in lb |
| Insertion Force | 200.17 N | 45.00 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 24.86 N-m | 220.00 in lb |
| Coupling Nut Retention Force | 1000.85 N | 225.00 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Dimensions | |
| Nominal Size | 7/8 in |
| Diameter | 37.21 mm | 1.47 in |
| Length | 53.30 mm | 2.10 in |
| Weight | 169.87 g | 0.37 lb |
