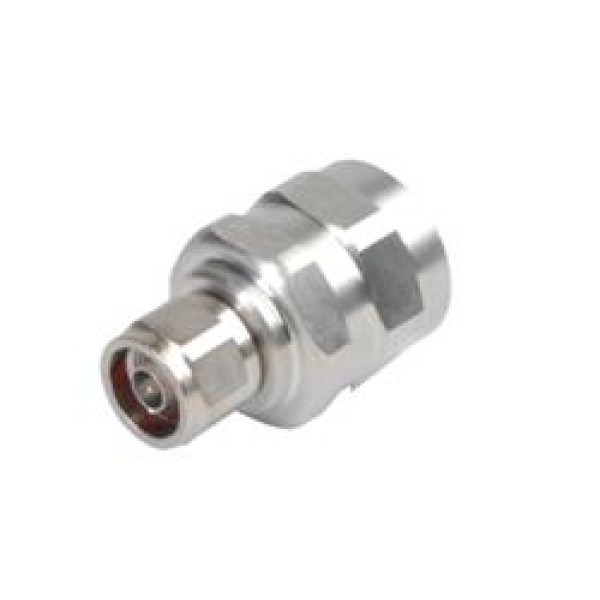

78EZNM Andrew Type-N Male EZfit® Connector for AVA5-50 Cable
In Stock
$41.91
78EZNM Andrew Type-N Male EZfit® Connector for AVA5-50 Cable
MFR: Andrew / Commscope
SKU: 78EZNM
Details
78EZNM Andrew Type-N Male EZfit® Connector for AVA5-50 Cable
MFR: Andrew / Commscope
| General Specifications | |
| Interface | N Male |
| Body Style | Straight |
| Brand | EZfit® |
| Harmonized System (HS) Code | 854420 (Coaxial cable and other coaxial electric conductors) |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 5000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2000 V |
| Outer Contact Resistance, maximum | 0.30 mOhm |
| Inner Contact Resistance, maximum | 2.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Peak Power, maximum | 10.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Clamp |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Connector Retention Tensile Force | 1334 N | 300 lbf |
| Connector Retention Torque | 8.13 N-m | 72.00 in lb |
| Insertion Force | 66.72 N | 15.00 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 4.52 N-m | 40.00 in lb |
| Coupling Nut Retention Force | 444.82 N | 100.00 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Dimensions | |
| Nominal Size | 7/8 in |
| Diameter | 37.21 mm | 1.47 in |
| Height | 0.00 mm | 0.00 in |
| Length | 58.00 mm | 2.28 in |
| Weight | 137.08 g | 0.30 lb |
