Resistors
Please choose from the following RESISTOR Sub-Catagory choices:
|
|
|
|
|
|
|
|
|
METER SHUNT RESISTOR FOR HEATKIT
|
|
Most resistors are color coded with multiple bands to identify the resistance value and the tolerance. While actually measuring the resistance before using it is a good idea, it's also a good idea to know what the resistance is supposed to be. Resistors (especially carbon composition) can drift in their actual resistance. Keep a stock of fresh resistors on hand. Use the following Standard EIA color code tables to identify resistors, or you can calculate the values on your your resistors using our handy resistance calculator.
4 Band Resistors
| Color | 1st Band (1st Figure) | 2nd Band (2nd Figure) | 3rd Band (Multiplier) | 4th Band (Tolerance) |
|---|---|---|---|---|
| Black | 0 | 100 | ||
| Brown | 1 | 1 | 101 | ±1% |
| Red | 2 | 2 | 102 | ±2% |
| Orange | 3 | 3 | 103 | |
| Yellow | 4 | 4 | 104 | |
| Green | 5 | 5 | 105 | ±0.5% |
| Blue | 6 | 6 | 106 | ±0.25% |
| Violet | 7 | 7 | 107 | ±0.1% |
| Grey | 8 | 8 | 108 | ±0.05% |
| White | 9 | 9 | 109 | |
| Gold | 10-1 | ±5% | ||
| Silver | 10-2 | ±10% |
5 Band Resistors
| Color | 1st Band (1st Figure) | 2nd Band (2nd Figure) | 3rd Band (Multiplier) | 4th Band (Tolerance) | 5th Band (Tolerance) |
|---|---|---|---|---|---|
| Black | 0 | 0 | 100 | ||
| Brown | 1 | 1 | 1 | 101 | ±1% |
| Red | 2 | 2 | 2 | 102 | ±2% |
| Orange | 3 | 3 | 3 | 103 | |
| Yellow | 4 | 4 | 4 | 104 | |
| Green | 5 | 5 | 5 | 105 | ±0.5% |
| Blue | 6 | 6 | 6 | 106 | ±0.25% |
| Violet | 7 | 7 | 7 | 107 | ±0.1% |
| Grey | 8 | 8 | 8 | 108 | ±0.05% |
| White | 9 | 9 | 9 | 109 | |
| Gold | 10-1 | ±5% | |||
| Silver | 10-2 | ±10% |
RH25G801H Dale Wirewound Resister 800 Ohms 15 Watts (NOS)
In Stock
- Electrical Resistance: 800.000 ohms
- Resistance Tolerance in Percent: -3.000 to 3.000
- Power Dissipation Rating in Watts: 15.000 free air
New Old Stock * No longer available for export
MFR: Dale
SKU: RH25G801H
Lectrohm 12K Ohm 10 Watt Wirewound Resistor (Pull)
In Stock
- 12,000 Ohm
- Size: 2" long x 1/2" Diameter
- Solder Tabs
Used * no longer available for export
MFR: Lectrohm
SKU: 12K-LEC-P
RH25G352H Dale Fixed Resistor 3.5K ohms 15 Watts (NOS)
In Stock
New Old Stock * No longer available for export
MFR: Dale
SKU: RH25G352H

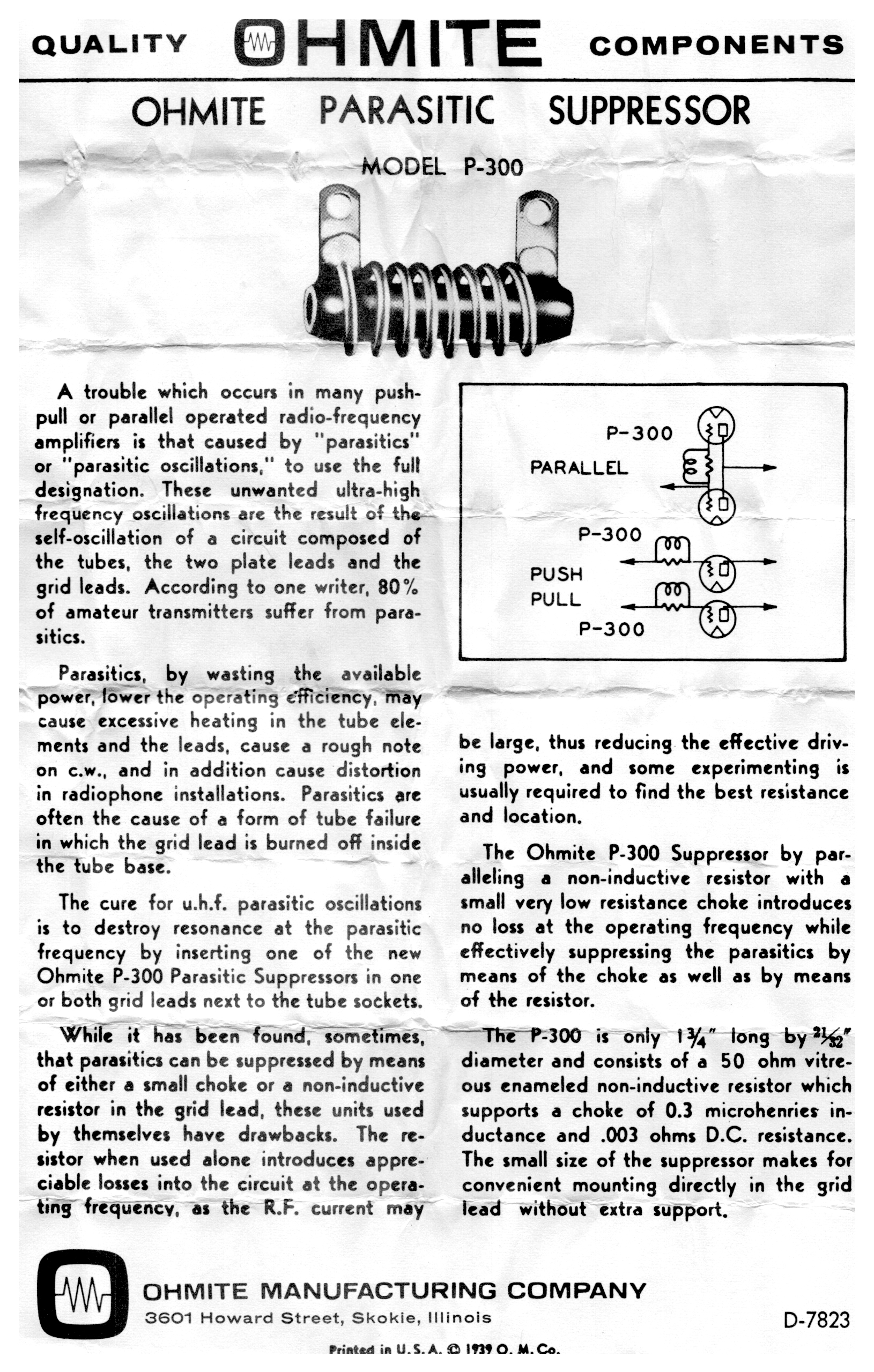

P-300 Ohmite Parasitic Suppressor (NOS/NIB)
In Stock
P-300 Ohmite Parasitic Suppressor (NOS/NIB)
New Old Stock * New In Box * No longer available for export
MFR: Ohmite Manufacturing Company
SKU: P-300
Add to Cart
FC8 Little Fuse Rivet/Eyelet Type Fuse Clip 0.5 Inch Diameter (Pull)
In Stock
- Inside Diameter: 0.5 in. / 12.7 mm.
- Size: 7/8" high x 19/32" deep x 5/8" wide
- Silver plated copper alloy
Used * No longer available for export
SKU: FC8
FC9 Little Fuse Rivet/Eyelet Type Fuse Clip 9/16 Inch Diameter (Pull)
In Stock
- Inside Diameter: 9/16 in. / 14.2875 mm.
- Size: 15/16" high x 19/32" deep x 21/32" wide
- Silver plated copper alloy
Used * No longer available for export
SKU: FC9
Type 4D IRC Wire Wound Resistor 10K Ohms 50 Watts (Pull)
In Stock
- Resistance: 10,000 Ohms
- Watts: 50 (nominal)
- Contact: Solder Tabs
- Includes Mounting brackets
Used * No longer available for export
MFR: International Resistnce Company
SKU: IRC-R10K-50-P
Type 4D IRC Wire Wound Resistor 500 Ohms 50 Watts (Pull)
In Stock
- Resistance: 500 Ohms
- Watts: 50 (nominal)
- Contact: Solder Tabs
- Includes Mounting brackets
Used * No longer available for export
MFR: International Resistnce Company
SKU: IRC-R500-50-P
0417 Ohmite 20K Ohms 50 Watt Resistor (Pull)
In Stock
0417 Ohmite 20K Ohms 50 Watt Resistor (Pull)
Used * No longer availale for export
MFR: Ohmite
SKU: 0417-20K-50W-P
0414 Ohmite 10K Ohms 50 Watt Resistor (Pull)
In Stock
0414 Ohmite 10K Ohms 50 Watt Resistor (Pull)
Used * No longer availale for export
MFR: Ohmite
SKU: 0414-10K-50W-P
