Rectifiers
Please choose from the following RECTIFIER Sub-Catagory choices:
|
|
|
HIGH VOLTAGE ASSEMBLIES/DOORBELL
|
|
HIGH VOLTAGE BLOCKS/EPOXY ENCAPSULATED
|
10J International Rectifier Semi-Conductor Rectifier Assembly For Collins 208U-10 Linear Power Amplifier (Pull)
In Stock
- Removed from Collins 208U-10 Linear Power Amplifier.
- Dimensions: 13-1/4" x 2" x 3-3/4"
Used - No longer available for export
MFR: International Rectifier, Inc.
Made in Canada
SKU: I0J-P

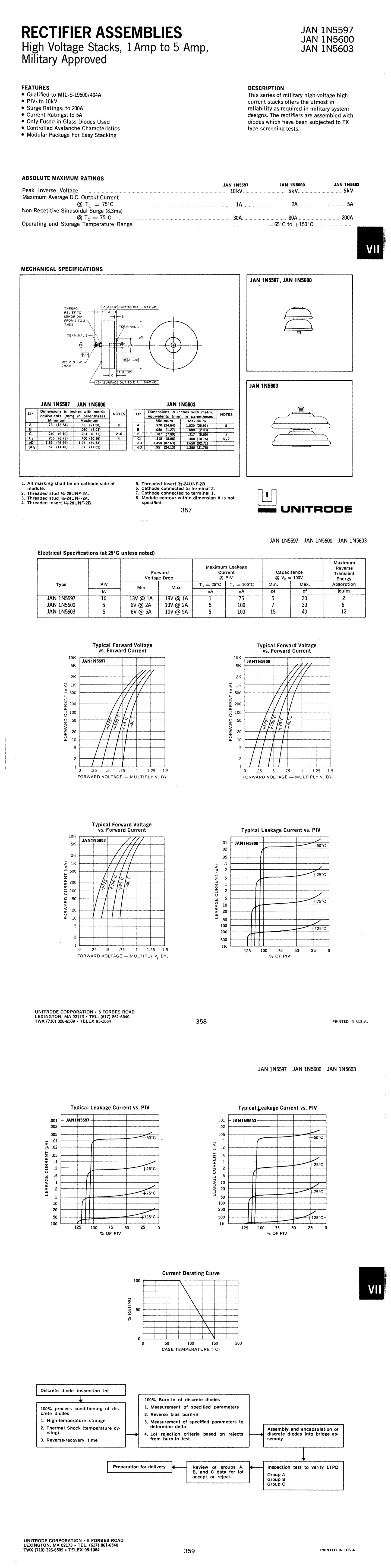

1N5600 Unitrode Military Approved High Voltage Doorbell Rectifier (Pull)
In Stock
- Qualified to Mil-S-19500/404A
- PIV: to 5Kv
- Surge Ratings: to 2A
- Non-Repetitive Sinusoidal Surge (8.3ms) @ Tc=75°C: 80A
Clean Used * No longer available for export
MFR: Unitrode Corporation
SKU: 1N5600-P
Add to Cart
UDD-2.5 Unitrode High Voltage Fast Recovery Doorbell Rectifier 2.5Kv (Pull)
In Stock
- PIV: 2.5Kv
- Stackable to 600Kv
- Maximum Forward Voltage Drop: 6v @ 1.20A
- Maximum Leakage current @ PIV: 5mA
Used * No longer available for export
MFR: Unitrode Corporation
SKU: UDD-2.5-P
Add to Cart
ECG125 Sylvania Silicon Rectifier 1000 PRV 2.5A (NOS)
In Stock
- Replaces HEP 170
New Old Stock * New In Box * No longer available for export
MFR: Sylvania
SKU: ECG125
A187A General Electric Fast Recovery Rectifier 15Kv 150 Amps (NOS)
In Stock
Designed for use in high frequency applications or where a fast recovery diode is a necessity.
- Peak Reverse Current: 25mA
- Repetitive Peak Reverse Voltage: 100v
- Non-Repetitive Peak Reverse Voltage: 200v
- DC Reverse Voltage: 100v
New Old Stock * No longer available for export
MFR: General Electric Company
SKU: A187A
KHP20 EDI Kilovolt High Current Rectifier Assembly (Pull)
In Stock
- Removed from Universal Voltronics Regulated-High Voltage Supply
- Includes Mounting Hardware
- Peak Reverse Voltage: 20Kv
Used * No longer available for export
MFR: Electronic Devices Inc.
SKU: KHP20-P
Add to Cart
KBPC5010 SSI Bridge Rectifier 50 amp 1kv
In Stock
Size: 1.12" x 1.12" square x 0.43" Thick (body) and 0.90" (body and pins)
MFR: SSI
SKU: KBPC5010-SSI
MDA110A Motorola or ECG Bridge Rectifier Diode MDA110A/3N252/ECG170 (NOS)
In Stock
Diode Bridge Rectifier MDA110A/3N252/ECG170
New Old Stock * No longer available for export
MFR: Motorola or ECG
SKU: MDA110A
MDA1333H-P Motorola Rectifier HV (Pull)
In Stock
Rectifier Block HV
Used * No longer available for export
MFR: Motorola
SKU: MDA1333H-P

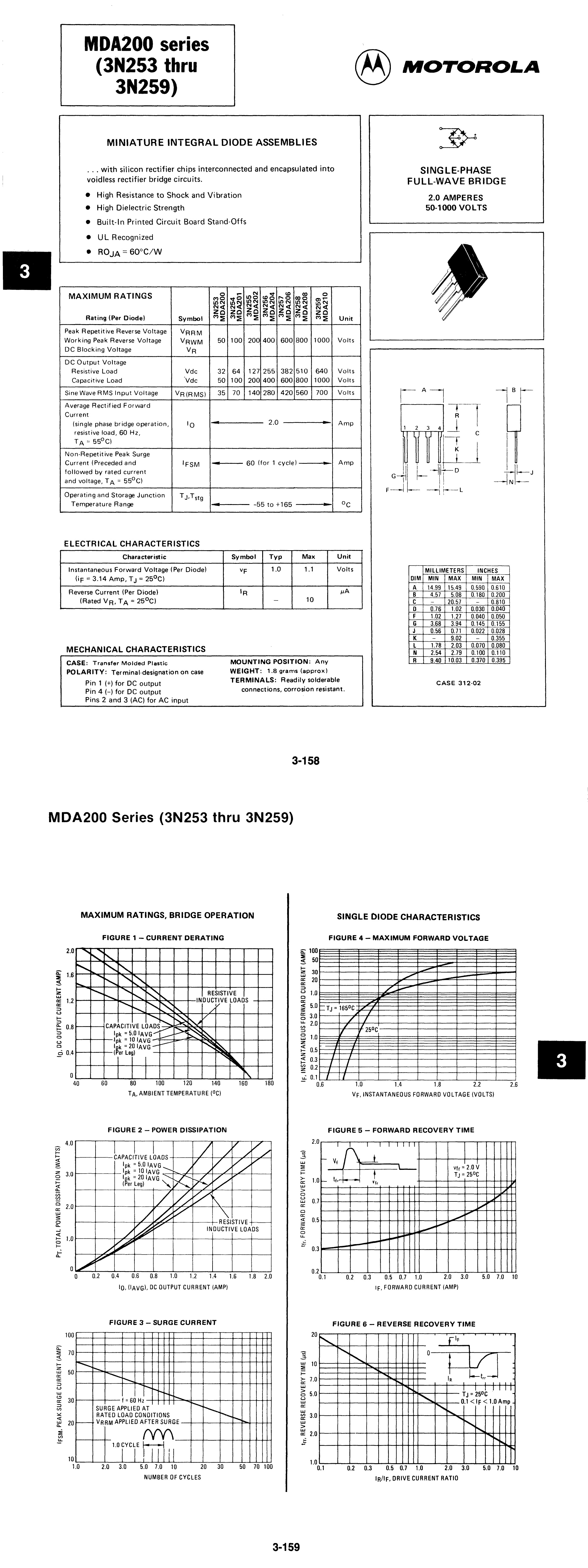

MDA210 Motorola Single-Phase Full-Wave Bridge Rectifier MDA210 / 3N259
In Stock
- Miniature Integral Diode Assmbly
- Silicon Rectifier chips interconnected and encapsulated into voidless rectifier bridge circuit.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MDA210
Add to Cart
