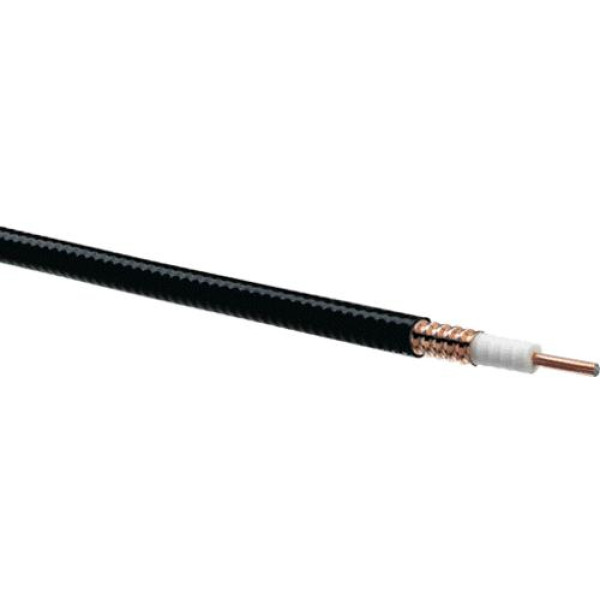

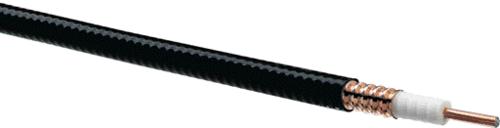

LDF4.5-50 5/8" Heliax Coaxial Cable, black PE jacket, Andrew (SEE EC4.5-50)

LDF4.5-50, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 5/8 in, black PE jacket

Sold by the foot * minimum order 10 feet
MFR: Andrew / Commscope

Construction Materials

• Jacket Material PE
• Outer Conductor Material Corrugated copper
• Dielectric Material Foam PE
• Flexibility Standard
• Inner Conductor Material Copperclad
• aluminum wire
• Jacket Color Black

Dimensions

• Nominal Size 5/8 in
• Cable Weight 0.27 lb/ft | 0.40 kg/m
• Diameter Over Dielectric 18.034 mm | 0.710 in
• Diameter Over Jacket 22.098 mm | 0.870 in
• Inner Conductor OD 7.1120 mm | 0.2800 in
• Outer Conductor OD 19.812 mm | 0.780 in

Electrical Specifications

• Cable Impedance 50 ohm ±1 ohm
• Capacitance 23.2 pF/ft | 76.1 pF/m
• dc Resistance, Inner Conductor 0.220 ohms/kft | 0.722 ohms/km
• dc Resistance, Outer Conductor 0.420 ohms/kft | 1.378 ohms/km
• dc Test Voltage 5000 V
• Inductance 0.187 μH/m | 0.057 μH/ft
• Insulation Resistance 100000 Mohms•km
• Jacket Spark Test Voltage (rms) 8000 V
• Operating Frequency Band 1 – 6100 MHz
• Peak Power 62.0 kW
• Pulse Reflection 0.5%
• Velocity 88%

Environmental Specifications

• Installation Temperature 40
• °C to +60 °C (40
• °F to +140 °F)
• Operating Temperature 55
• °C to +85 °C (67
• °F to +185 °F)
• Storage Temperature 70
• °C to +85 °C (94
• °F to +185 °F)
