L4.5PNF-RC Type-N Female Connector, LDF4.5-50, Andrew (SEE NF50V58)

Out of stock

$74.91

Type N Female RingFlare™ for 5/8" Heliax Cable LDF4.5-50,

MFR: Andrew / Commscope

SKU: L4.5PNF-RC

NOTE: No longer produced by Commscope/ Andrew. You can substitute the NF50V58

Details

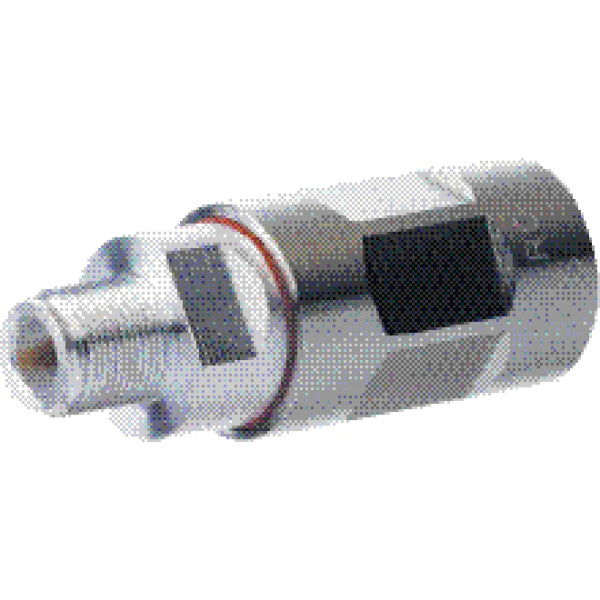

L4.5PNF-RC Type N Female RingFlare™ for 5/8" Heliax Cable LDF4.5-50

MFR: Andrew / Commscope

General Specifications
Interface	N Female
Body Style	Straight
Brand	HELIAX®
Mounting Angle	Straight

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 6100 MHz
Cable Impedance	50 ohm
RF Operating Voltage, maximum (vrms)	707.00 V
dc Test Voltage	2000 V
Outer Contact Resistance, maximum	0.30 mOhm
Inner Contact Resistance, maximum	2.00 mOhm
Insulation Resistance, minimum	5000 MOhm
Average Power	0.6 kW @ 900 MHz
Peak Power, maximum	40.00 kW
Insertion Loss, typical	0.05 dB
Shielding Effectiveness	-110 dB

Outline Drawing
Click on image below to enlarge.


Mechanical Specifications
Outer Contact Attachment Method	Self-flare
Inner Contact Attachment Method	Captivated
Outer Contact Plating	Trimetal
Inner Contact Plating	Gold
Attachment Durability	25 cycles
Interface Durability	500 cycles
Interface Durability Method	IEC 61169-16:9.5
Connector Retention Tensile Force	890 N \| 200 lbf
Connector Retention Torque	5.42 N-m \| 48.00 in lb
Insertion Force	66.72 N \| 15.00 lbf
Insertion Force Method	MIL-C-39012C-3.12, 4.6.9
Pressurizable	No

Dimensions
Nominal Size	5/8 in
Diameter	33.02 mm \| 1.30 in
Length	76.20 mm \| 3.00 in
Weight	227.00 g \| 0.50 lb
