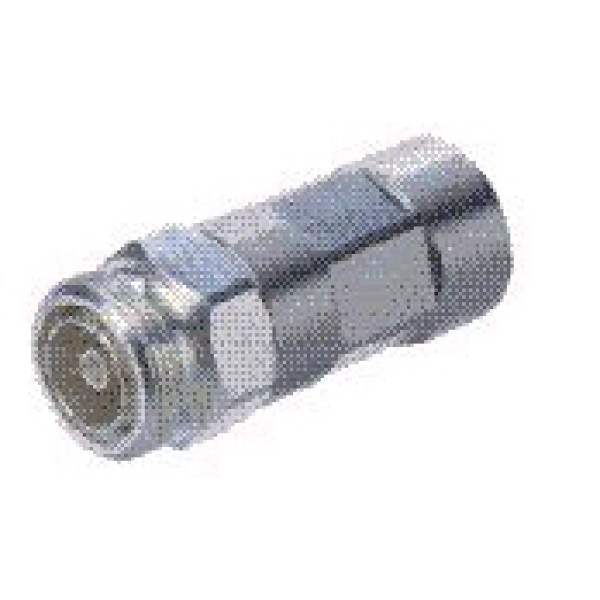

L4.5PDF-RC 7/16 DIN Female Connector, LDF4.5-50, Andrew

In Stock

$74.91

L4.5PDF-RC 7-16 DIN Female RingFlare™ for 5/8" Heliax Cable LDF4.5-50, MFR: Andrew / Commscope

Details

L4.5PDF-RC 7-16 DIN Female RingFlare™ for 5/8" Heliax Cable LDF4.5-50

MFR: Andrew / Commscope

General Specifications
Interface	7-16 DIN Female
Body Style	Straight
Brand	HELIAX®
Mounting Angle	Straight

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 6100 MHz
Cable Impedance	50 ohm
RF Operating Voltage, maximum (vrms)	1415.00 V
dc Test Voltage	4000 V
Outer Contact Resistance, maximum	1.50 mOhm
Inner Contact Resistance, maximum	0.80 mOhm
Insulation Resistance, minimum	5000 MOhm
Average Power	3.0 kW @ 900 MHz
Peak Power, maximum	40.00 kW
Insertion Loss, typical	0.05 dB
Shielding Effectiveness	-110 dB

Mechanical Specifications
Outer Contact Attachment Method	Self-flare
Inner Contact Attachment Method	Captivated
Outer Contact Plating	Trimetal
Inner Contact Plating	Silver
Attachment Durability	25 cycles
Interface Durability	50 cycles
Interface Durability Method	IEC 61169-4:9.5
Connector Retention Tensile Force	890 N \| 200 lbf
Connector Retention Torque	5.42 N-m \| 48.00 in lb
Insertion Force	200.17 N \| 45.00 lbf
Insertion Force Method	IEC 61169-1:15.2.4
Pressurizable	No

Dimensions
Nominal Size	5/8 in
Diameter	30.48 mm \| 1.20 in
Length	83.82 mm \| 3.30 in
Weight	180.00 g \| 0.40 lb
