HT50 series 5 & 7.5kv

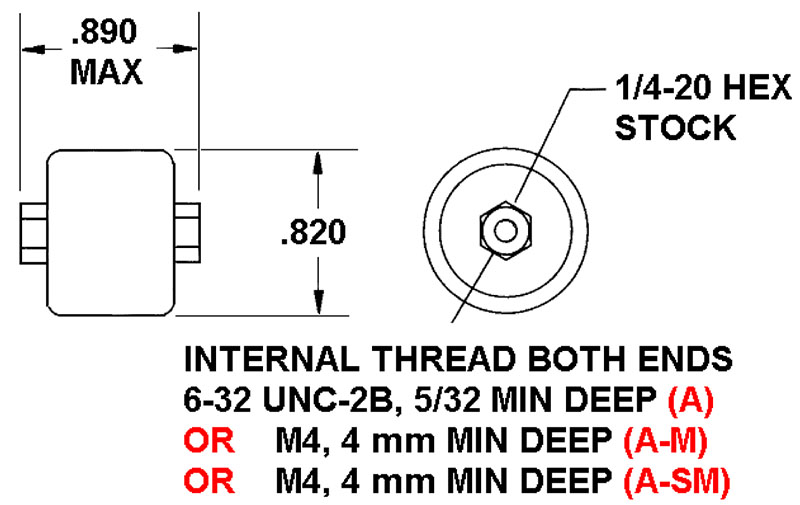

HT50/HH58/850S Series RF Doorknob Caps 0.82" Diameter x 0.89" Long • 6-32 Thread
RF Parts Number	Factory Part #	pF	TC	Current/Amps 1 MHz 10 MHz 30 MHz
1 KV Rating P=CLEAN PULLOUT
580500-1P	HT50T501	500	N4700
3.5 KV Rating P=CLEAN PULLOUT
332TA	SPHHR332TA	3300	X5V
4 KVDC Rating P=CLEAN PULLOUT
580067-4	HT50S670JK	67
580080-4P	HT505800	80
5 KVDC Rating P=CLEAN PULLOUT
580012-5P	HT50T120	12	NPO	.83	4.2	7.3
580028-5P	HT50T280	28	NPO	.83	4.9	7.9
580040-5P	HT50T400	40	NPO	1.33	5.3	8.9
580050-5P	HT50T500	50	NPO	1.66	5.4	9.4
580057-5P	HT50T570	57	NPO	1.88	5.4	9.6
580062-5P	HT50T620	62	NPO	2.09	5.5	9.7
580063-5P	HT50T630	63	NPO	2.09	5.5	9.7
580067-5P	HT50T670	67	NPO	2.16	5.5	9.7
580075-5P	HT50T750	75	N-750	2.5	6.5	9.7
580080-5P	HT50T080	80	N-750	2.7	6.6	9.7
580100-5	850S-100N	100	-	-	-	-
580160-5P	HT50T161	160	N-750	3.8	7.0	10.2
580500-5	850S-500	500	-	-	-	-
580500-5P	HT50T501	500	N5250	-	-	-
581000-5P	HT50V102MA1	1000	X5V	1.6	3.8	5.6
7.5 KVDC Rating P=CLEAN PULLOUT
580005-7	HT50V	5	NPO	.83	4.2	7.3
580012-7	HT50V120	12	NPO	.83	4.2	7.3
580020-7	HT50V200	20	NPO	.83	4.6	7.7
580025-7	HT50V250	25	NPO	.83	4.9	7.9
580040-7P	HT50V400MA	40	NPO		5.1	8.3
580050-7	HT50V500	50	NPO	1.66	5.4	9.4
580050-7P	HT50V500	50	NPO	1.66	5.4	9.4
580067-7	HT50V670	67	NPO	2.16	5.5	9.7
580075-7	HT50V750	75	NPO	2.16	5.5	9.7
580075-7P	HT50V750	75	NPO	2.16	5.5	9.7
580100-7	HT50V101	100	N-750	3.6	6.8	9.7
580120-7	HT50V121	120	N-750	3.7	6.9	9.9
580140-7	HT50V141	140	N-750	3.8	7.0	10.2
580170-7	HT50V171	170	N-750	3.9	7.1	10.4
580200-7	HT50V200	200	N-3300	2.8	5.1	6.9
580240-7	HT50V241	240	N-3300	2.8	5.2	7.1
580300-7	HT50V301	300	N-3300	3.9	5.3	7.4
580400-7	HT50V401	400	N-3300	3.0	5.4	7.7
DCOG401MB	580400-7 Mfg. HVCO (blue)	400	N-3300	3.0	5.4	7.7
TS50-401-20-5752	580400-7 Mfg. Germany (blue)	400	N-5600	2.7	4.9	7.0
580500-7	HT50V501MA	500	N-4700	3.2	6.0	7.3
580700-7	HH58V701MA	700	X5T	1.5	3.5	5.1
581000-7	HH58V102MA	1000	X5V	1.6	3.8	5.6
581500-7	HH58V152MA	1500	X5V	1.7	4.0	6.0
582000-7	HH58V202MA	2000	X5V	1.7	4.2	6.3

Grid

Show per page

Sort By 🔼

DA858 Centralab Doorknob Capacitor 500pf 5kv (Pull)

In Stock

$18.90

Capacitance: 500pf

Voltage: 5Kv

Used * No longer available for export
MFR: Centralab
SKU: DA858-500-5-P

Add to Cart

858 Centralab Doorknob Capacitor 1000pf 1.5kv 20% (Pull)

In Stock

$19.91

858 Doorknob Capacitor 1000 pf 1.5kv 20%

Used clean condition * No longer available for export
MFR: Centralab
SKU: 581000-1.5P

Add to Cart

580062-5 Doorknob Capacitor 62pf 5kv HT50V620KA (NOS)

In Stock

$49.95

580062-5 Doorknob Capacitor, 62pf 5kv, 10% NPO, (NOS)

New Old Stock * No longer available for export

(HT50V620KA)

MFR: High Energy, USA

Add to Cart

530040-5 High Energy Doorknob Capacitor Axial Lead 40pf 5kv 10% (NOS)

In Stock

$24.91

HT53, N750

Size: 0.5" Dia x 0.435" High

New Old Stock * No longer available for export
MFR: High Energy
SKU: 530040-5

Add to Cart

580600-5 Doorknob Capacitor, 600pf 5kv 20%, X5T, High Energy

In Stock

$27.95

580600-5 Doorknob Capacitor, 600pf 5kv 20%, X5T, MFR: High Energy (NOS-Surplus) No longer available for Export

Add to Cart

580240-2.5 Doorknob Capacitor 240pf 2.5kv High Energy (Pull)

In Stock

$22.95

580240-2.5 Doorknob Capacitor, 240pf 2.5kv, 5%, N2200, High Energy
Removed from working equipment
Used * No longer available for export
SKU: 580240-2.5

Add to Cart
