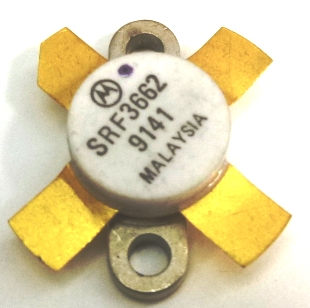

SRF3662 Motorola Transistor 12.5V 100W (NOS)
In Stock
This transistor is High Gain Selected MRF421. The SRF3662 was selected for Beta as Blue Dot or above. This transistor was Designed primarily for application as a high–power linear amplifier from 2.0 to 30 MHz.
Specifications:
- Output power = 100+ Watts
- Minimum gain = 10 dB
- Bias Voltage: 12.5 V
- Efficiency = 40%
- IMD = –30 dB (min.)
- Min Frequency: 1 MHz
- Max Frequency: 30 MHz
Tested for load mismatch at all phase angles with 30:1 VSWR
New Old Stock * No longer available for export
MFR: Motorola
SKU: SRF3662
Details

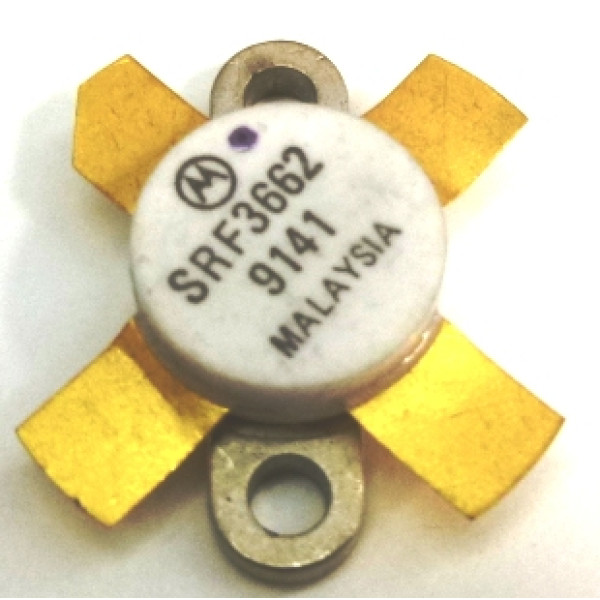

SRF3662 Motorola Transistor, 12.5 Volts 100+ Watts PEP (NOS)
This part is High Gain Selected MRF421. The SRF3662 was selected for Beta as Blue Dot or above. This transistor was Designed primarily for application as a high–power linear amplifier from 2.0 to 30 MHz.
Specifications:
- Output power = 100+ Watts
- Minimum gain = 10 dB
- Bias Voltage: 12.5 V
- Efficiency = 40%
- IMD = –30 dB (min.)
- Min Frequency: 1 MHz
- Max Frequency: 30 MHz
Tested for load mismatch at all phase angles with 30:1 VSWR
New Old Stock * No longer available for export
MFR: Motorola
You may also be interested in the following product(s)
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Motorola |
| Condition | New |
| NOS | Yes |
| Call For Price | No |
| Manufacturer Name | No |
