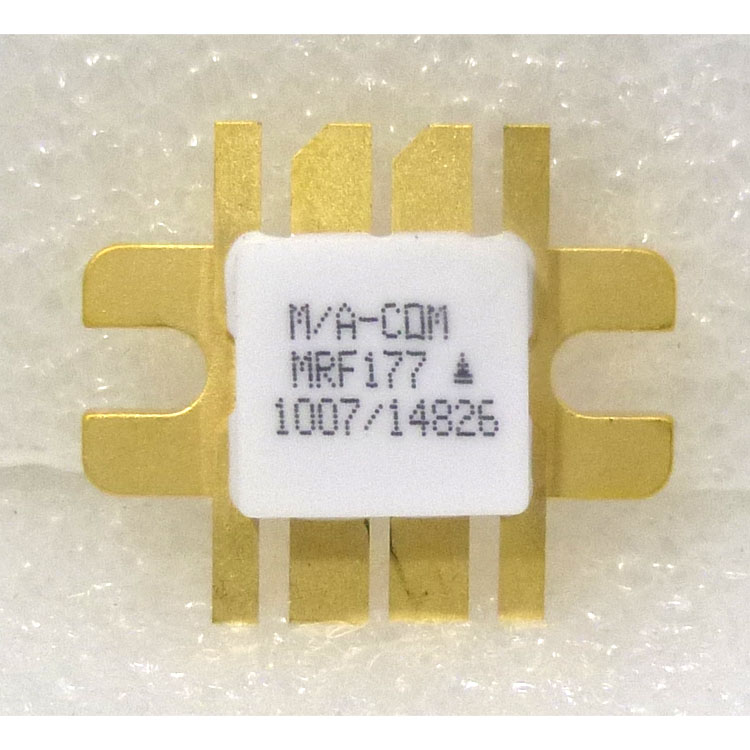

MRF177 M/A-COM RF MOSFET Transistor 100W 400MHz 28V
In Stock
$89.91
Designed for broadband commercial and military applications up to 400 MHz frequency range. Primarily used as a driver or output amplifier in push–pull configurations. Can be used in manual gain control, ALC and modulation circuits. N–Channel enhancement mode MOSFET.
- Typical performance at 400 MHz, 28 V: Output power — 100 W, Gain — 12 dB, Efficiency — 60%
- Low thermal resistance
- Low Crss — 10 pF typ. @ VDS = 28 V
- Ruggedness tested at rated output power
- Nitride passivated die for enhanced reliability
- Excellent thermal stability; suited for Class A operation
MRF: M/A-COM
SKU: MRF177-MA
Details
MRF177 M/A-COM RF MOSFET Transistor 100W 400MHz 28V
Designed for broadband commercial and military applications up to 400 MHz frequency range. Primarily used as a driver or output amplifier in push–pull configurations. Can be used in manual gain control, ALC and modulation circuits, N–Channel enhancement mode MOSFET
- Typical performance at 400 MHz, 28 V: Output power — 100 W, Gain — 12 dB, Efficiency — 60%
- Low thermal resistance
- Low Crss — 10 pF typ. @ VDS = 28 V
- Ruggedness tested at rated output power
- Nitride passivated die for enhanced reliability
- Excellent thermal stability; suited for Class A operation
MRF: M/A-COM
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | M/A-COM |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | FIRST SOURCE INC. |
