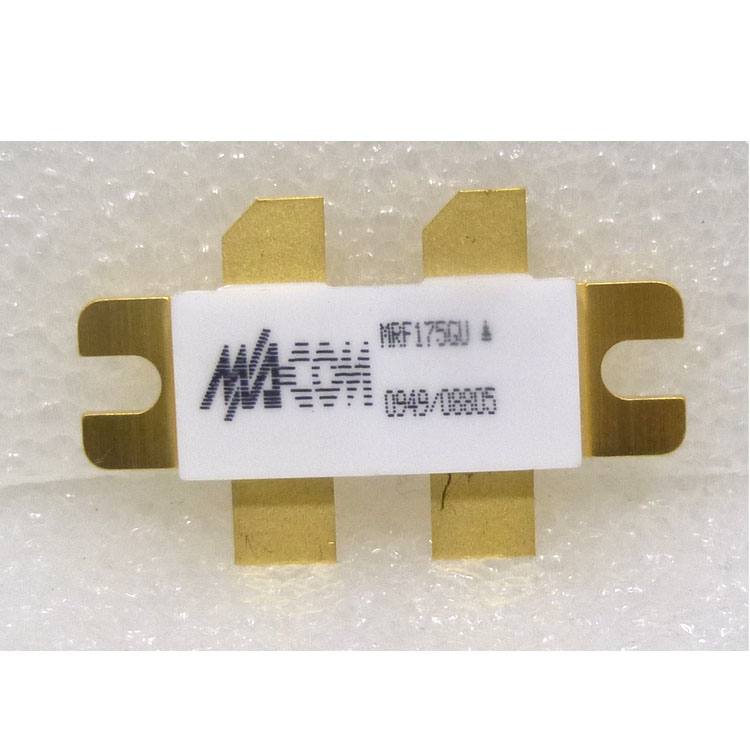

MRF175GU M/A-COM Transistor 150 watt 28v 400 MHz
In Stock
Designed for broadband commercial and military applications using push pull circuits at frequencies to 500 MHz. The high power, high gain and broadband performance of these devices makes possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode
- Guaranteed performance: MRF175GV @ 28 V, 225 MHz (“V” Suffix), Output power — 200 W, Power gain — 14 dB typ, Efficiency — 65% typ`
- 100% ruggedness tested at rated output power
- Low thermal resistance
- Low Crss — 20 pF typ @ VDS = 28 V
MRF: M/A-COM
SKU: MRF175GU-MA
Details
MRF175GU M/A-COM Transistor 150 watt 28v 400 MHz
Designed for broadband commercial and military applications using push pull circuits at frequencies to 500 MHz. The high power, high gain and broadband performance of these devices makes possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode
- Guaranteed performance: MRF175GV @ 28 V, 225 MHz (“V” Suffix), Output power — 200 W, Power gain — 14 dB typ, Efficiency — 65% typ`
- 100% ruggedness tested at rated output power
- Low thermal resistance
- Low Crss — 20 pF typ @ VDS = 28 V
MRF: M/A-COM
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | M/A-COM |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | M/A-COM |
