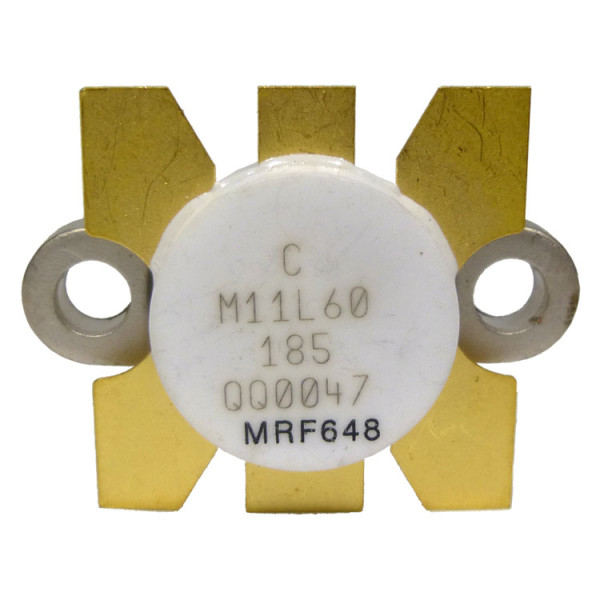

MRF648 / M1160 Motorola NPN Silicon RF Power Transistor 12.5V 470 MHz 60W (NOS)
In Stock
$48.91
Designed for 12.5 Volt UHF large–signal amplifier applications in industrial and commercial FM equipment operating to 512 MHz.
- Specified 12.5 Volt, 470 MHz Characteristics — Output Power = 60 Watts, Minimum Gain = 4.4 dB, Efficiency = 55%
- Characterized with Series Equivalent Large–Signal Impedance Parameters
- Built–In Matching Network for Broadband Operation
- Tested for Load Mismatch Stress at all Phase Angles with 20:1 VSWR @ 16–Volt High Line and 20% Overdrive
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF648
Details
MRF648 / M1160 Motorola NPN Silicon RF Power Transistor 12.5V 470 MHz 60W (NOS)
Designed for 12.5 Volt UHF large–signal amplifier applications in industrial and commercial FM equipment operating to 512 MHz.
- Specified 12.5 Volt, 470 MHz Characteristics — Output Power = 60 Watts, Minimum Gain = 4.4 dB, Efficiency = 55%
- Characterized with Series Equivalent Large–Signal Impedance Parameters
- Built–In Matching Network for Broadband Operation
- Tested for Load Mismatch Stress at all Phase Angles with 20:1 VSWR @ 16–Volt High Line and 20% Overdrive
New Old Stock * No longer available for export
MFR: Motorola
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Motorola |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Motorola |
