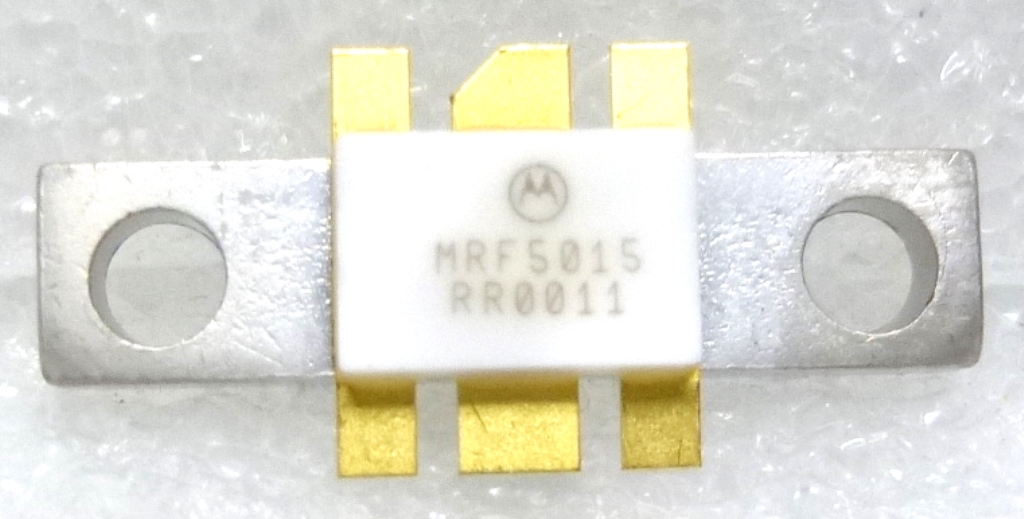

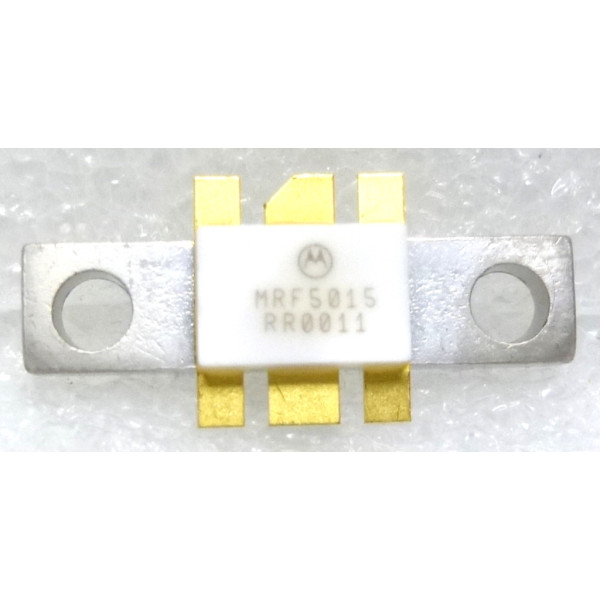

MRF5015 Motorola RF Power Field Effect Transistor RF Mosfet N–Channel Enhancement–Mode 512 MHz 15W 12.5V (NOS)
In Stock
Designed for broadband commercial and industrial applications at frequencies to 520 MHz. The high gain and broadband performance of this device makes it ideal for large–signal, common source amplifier applications in 12.5 volt mobile, and base station FM equipment.
- Guaranteed Performance at 512 MHz, 12.5 Volts: Output Power — 15 Watts, Power Gain — 10 dB Min, Efficiency — 50% Min
- Characterized with Series Equivalent Large–Signal Impedance Parameters
- S–Parameter Characterization at High Bias Levels
- Excellent Thermal Stability
- All Gold Metal for Ultra Reliability
- Capable of Handling 20:1 VSWR, @ 15.5 Vdc, 512 MHz, 2 dB Overdrive
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF5015
Details
MRF5015 Motorola RF Power Field Effect Transistor RF Mosfet N–Channel Enhancement–Mode 512 MHz 15W 12.5V
Designed for broadband commercial and industrial applications at frequencies to 520 MHz. The high gain and broadband performance of this device makes it ideal for large–signal, common source amplifier applications in 12.5 volt mobile, and base station FM equipment.
- Guaranteed Performance at 512 MHz, 12.5 Volts: Output Power — 15 Watts, Power Gain — 10 dB Min, Efficiency — 50% Min
- Characterized with Series Equivalent Large–Signal Impedance Parameters
- S–Parameter Characterization at High Bias Levels
- Excellent Thermal Stability
- All Gold Metal for Ultra Reliability
- Capable of Handling 20:1 VSWR, @ 15.5 Vdc, 512 MHz, 2 dB Overdrive
New Old Stock * No longer available for export
MFR: Motorola
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Motorola |
| Condition | New |
| NOS | Yes |
| Call For Price | No |
| Manufacturer Name | MOTOROLA |
