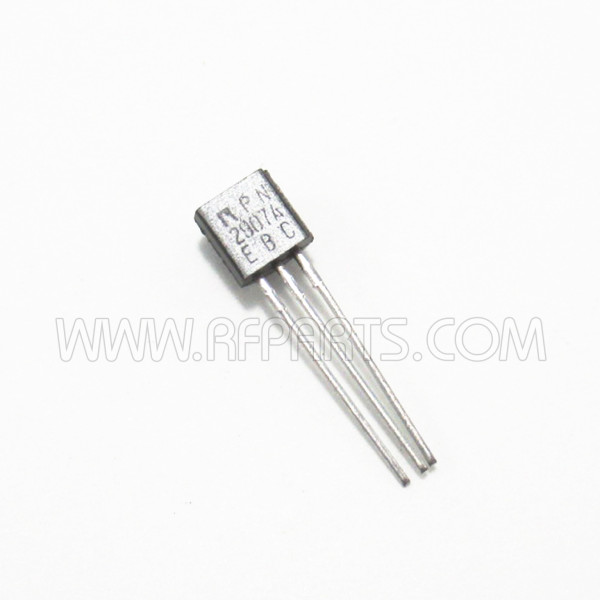

PN2907A Bipolar PNP Transistor
In Stock
$0.41
- Mounting Style: Through Hole
- Package / Case: TO-92-3
- Transistor Polarity: PNP
SKU: PN2907A-N
Details
PN2907A Bipolar PNP Transistor
- Mounting Style: Through Hole
- Package / Case: TO-92-3
- Transistor Polarity: PNP
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 40 V
- Collector- Base Voltage VCBO: 60 V
- Emitter- Base Voltage VEBO: 5 V
- Collector-Emitter Saturation Voltage: 1.6 V
- Maximum DC Collector Current: 800 mA
- Pd - Power Dissipation: 625 mW
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 150 C
- Series: PN2907
- Continuous Collector Current: 800 mA
- DC Current Gain hFE Max: 300
- Height: 4.7 mm
- Length: 4.7 mm
- Product Type: BJTs - Bipolar Transistors
- Width: 3.93 mm
- Unit Weight: 0.006314 oz
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | No |
