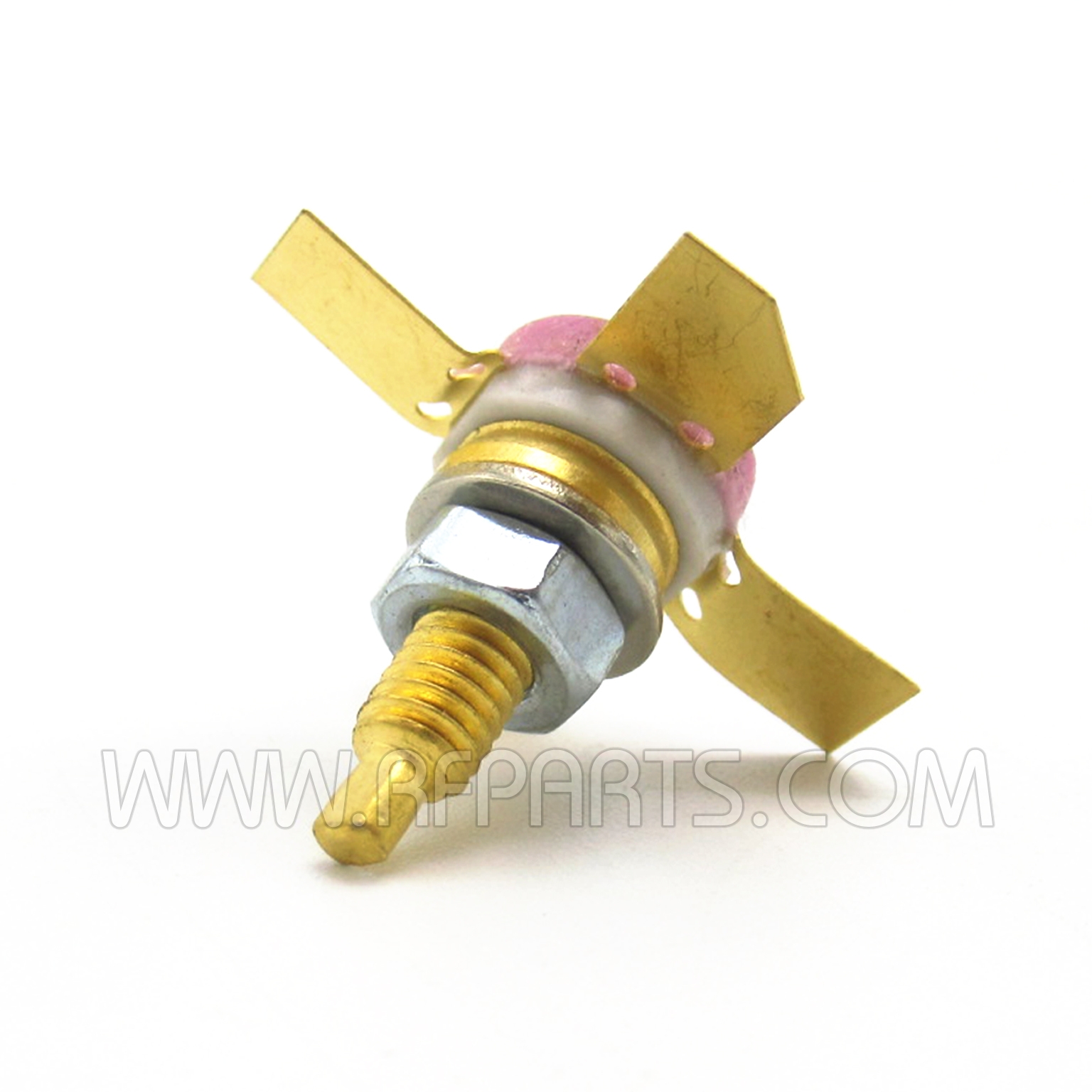

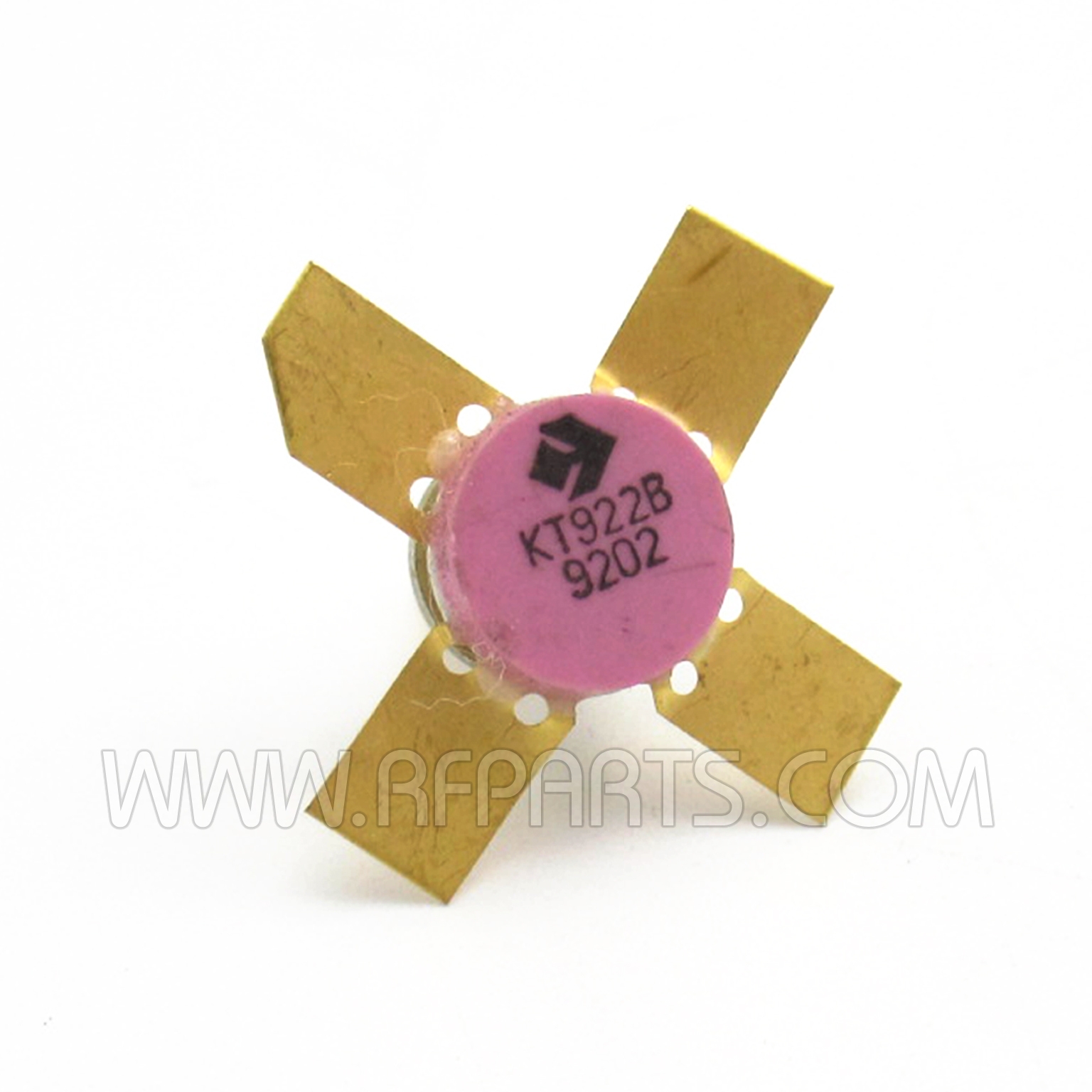

KT922B NPN Silicon Transistor 20W 1.5A 300MHz (NOS)
In Stock
Similar to 2N5642, CD5918
Maximum Collector Power Dissipation (Pc): 20 W
Transition Frequency (ft): 300 MHz
New Old Stock * No longer available for export
MFR: Russia
SKU: KT922B
Details
KT922B NPN Silicon Transistor 20W 1.5A 300MHz (NOS)
Similar to 2N5642, CD5918
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 20 W
Maximum Collector-Base Voltage |Vcb|: 65 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 4 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 160 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 20 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: SOT120
New Old Stock * No longer available for export
MFR: Russia
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Russia |
