45XV783 HVCA Doorbell Rectifier 2kv 16a (Pull)

45XV783-P HVCA Doorbell Rectifier 2kv 16a (Pull)

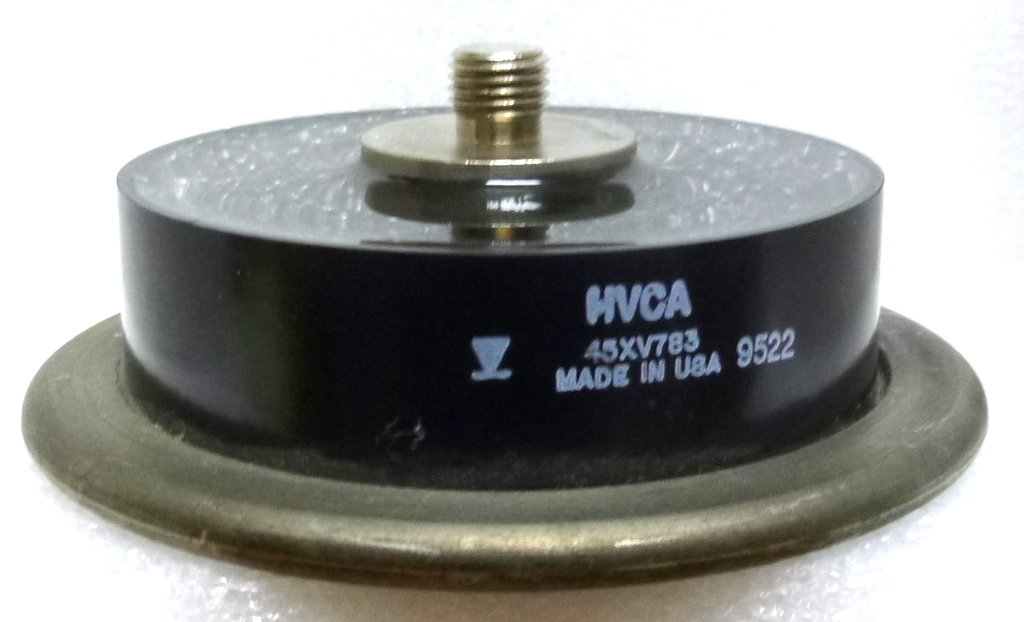

HVCA High Voltage Components 45XV783 2kV 16A High Voltage Rectifier/Diode
Specifications are from HVCA and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
These units are Clean pulls from a piece of working equipment that was decommisioned.  Tested to meet factory specs.

• Resistor comensated modular "hi-bell" rectifier
• Voltage scalable topology for higher voltages
• Maximum Repetitive Peak Reverse Voltage: 2,000 Volts
• Average Forward Current Maximum: 16 A (T_C=100°C)
• Maximum Forward Voltage Drop: 7.5 Volts (I_F=5.0 A)
• Maximum Surge Current Rating: 200 Amps (8.3 msec, half sine)
• Maximum Reverse Current: 10 µA (at rated V_RRM)
• Maximum Junction Temperature: 150°C
• Storage Temperature: -55°C to 150°C
• Dimensions: 3.5" Dia x 1.338" H (with stud)

Clean Used * No longer available for export
MFR: HVCA

NOTE: Picture for reference only.  Cosmetic condition may vary.
