AVA6RK-50 1-1/4 Fire Retardant Heliax Coax Cable

 SPECIAL ORDER ITEM.  PLEASE ALLOW 4-6 WEEKS DELIVERY

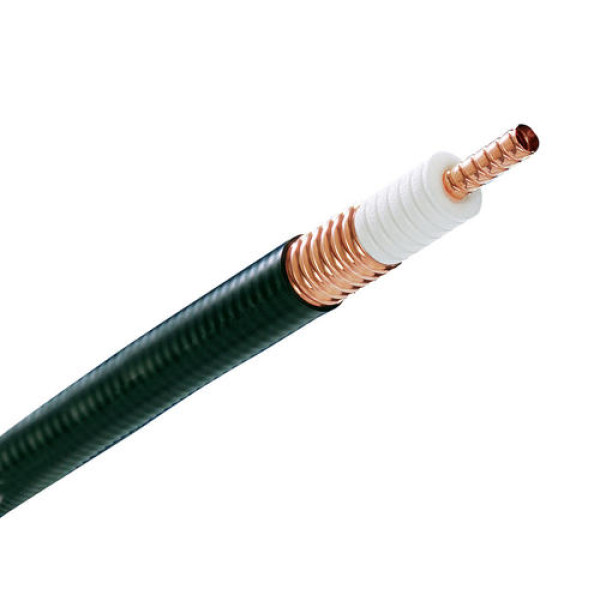

AVA6RK-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, 1-1/4 in, black , fire retardant polyolefin jacket

Construction Materials

Jacket Material Nonhalogenated,

fire retardant polyolefin

Outer Conductor Material Corrugated copper

Dielectric Material Foam PE

Flexibility Standard

Inner Conductor Material Corrugated copper tube

Jacket Color Black

Dimensions

Nominal Size 1-1/4 in

Cable Weight 0.54 lb/ft | 0.80 kg/m

Diameter Over Dielectric 34.036 mm | 1.340 in

Diameter Over Jacket 39.624 mm | 1.560 in

Inner Conductor OD 14.0208 mm | 0.5520 in

Outer Conductor OD 36.068 mm | 1.420 in

Electrical Specifications

Cable Impedance 50 ohm ±1 ohm

Capacitance 22.0 pF/ft | 72.0 pF/m

dc Resistance, Inner Conductor 0.530 ohms/kft | 1.740 ohms/km

dc Resistance, Outer Conductor 0.230 ohms/kft | 0.750 ohms/km

dc Test Voltage 8500 V

Inductance 0.057 μH/ft | 0.187 μH/m

Insulation Resistance 100000 Mohms•km

Jacket Spark Test Voltage (rms) 10000 V

Operating Frequency Band 1 – 3700 MHz

Peak Power 180.0 kW

Pulse Reflection 0.5%

Velocity 92%

Environmental Specifications

Installation Temperature 25

°C to +60 °C (13

°F to +140 °F)

Operating Temperature 30

°C to +80 °C (22

°F to +176 °F)

Storage Temperature 30

°C to +80 °C (22

°F to +176 °F)
