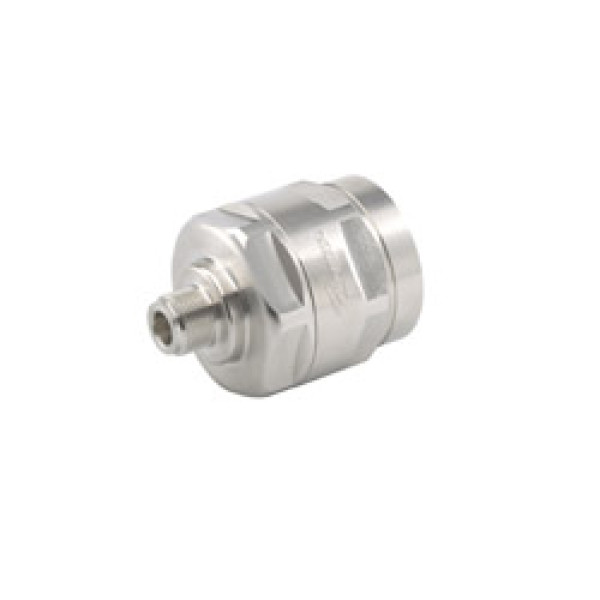

114EZNF Andrew Type N Female EZfit® for 1-1/4 in AVA6-50 Heliax Cable
In Stock
$79.91
114EZNF Type N Female EZfit® for 1-1/4 in FXL1480 and AVA6-50 cable, MFR: Andrew / Commscope
NOTE: Special Order. Normal Delivery is 7-10 days ARO.
Details
114EZNF Type N Female EZfit® for 1-1/4 in FXL1480 and AVA6-50 cable
MFR: Andrew / Commscope
| General Specifications | |
| Interface | N Female |
| Body Style | Straight |
| Brand | EZfit® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3300 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2000 V |
| Outer Contact Resistance, maximum | 0.30 mOhm |
| Inner Contact Resistance, maximum | 2.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.6 kW @ 900 MHz |
| Peak Power, maximum | 10.00 kW |
Insertion Loss, typical  |
0.05 dB |
| Outline Drawing | |
 Click on image below to enlarge. |
|
| Mechanical Specifications | |
| Outer Contact Attachment Method | Clamp |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Connector Retention Tensile Force | 1334 N | 300 lbf |
| Connector Retention Torque | 8.13 N-m | 72.00 in lb |
| Insertion Force | 66.72 N | 15.00 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Dimensions | |
| Nominal Size | 1-1/4 in |
| Diameter | 49.00 mm | 1.93 in |
| Length | 65.80 mm | 2.59 in |
| Weight | 284.00 g | 0.63 lb |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Depth |
1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
| Moisture Resistance Test Method | IEC 60529, IP68 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 50–1000 MHz | 1.03 | 37.00 |
| 1000–1900 MHz | 1.04 | 34.00 |
| 1900–2200 MHz | 1.04 | 34.00 |
| 2200–2700 MHz | 1.04 | 34.00 |
| 2700–3300 MHz | 1.07 | 30.00 |
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Andrew / Commscope |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | ANDREW / COMMSCOPE |
