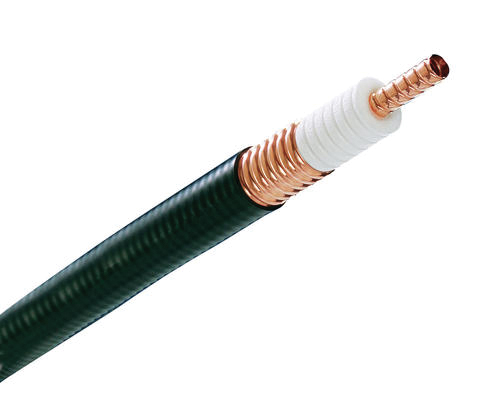

AVA6P-50-C HELIAX® Andrew Virtual Air™ 1-1/4" Coaxial Cable
In Stock
SPECIAL ORDER ITEM. PLEASE ALLOW 8-10 WEEKS DELIVERY
CommScope's HELIAX AVA5 and AVA6 C-band coaxial feeder cables deliver all the performance and value of the legacy HELIAX AVA products, with one important difference: Now, C-band has been enabled. Additionally, the AVA6 C-band coaxial feeder cable is uniquely optimized and tested to deliver a 0.5 dB gain in performance over AVA5-enabling MNOs to get even more from their C-band investment.
Jacket Material: PE
Outer Conductor Material: Corrugated copper
Dielectric Material: Foam PE
Flexibility: Standard
Inner Conductor Material: Corrugated copper tube
Jacket Color: Black
Cable Impedance 50 ohm ±1 ohm
All HELIAX coaxial cables are jacketed for direct burial or for corrosive environmental conditions. Standard jacketing material is weather-resistant polyethylene suitable for use in extreme climates.
MFR: CommScope® / Andrew
SKU: AVA6P-50-C
Sold by the Foot
Details

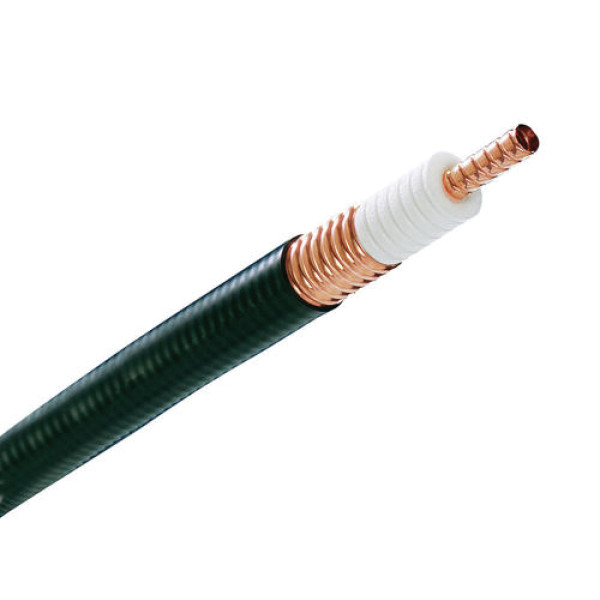

AVA6P-50-C HELIAX® Andrew Virtual Air™ 1-1/4" Coaxial Cable (AVA6-50)
CommScope's HELIAX AVA5 and AVA6 C-band coaxial feeder cables deliver all the performance and value of the legacy HELIAX AVA products, with one important difference: Now, C-band has been enabled. Additionally, the AVA6 C-band coaxial feeder cable is uniquely optimized and tested to deliver a 0.5 dB gain in performance over AVA5-enabling MNOs to get even more from their C-band investment.
SPECIAL ORDER ITEM. PLEASE ALLOW 8-10 WEEKS DELIVERY
Product Classification
| Product Type | Coaxial wireless cable |
| Product Brand | HELIAX® |
| Product Series | AVA6-50 |
| Ordering Note | CommScope® standard product in Asia Pacific | CommScope® standard product in the United States and Canada |
General Specifications
| Flexibility | Standard |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
Dimensions
| Diameter Over Dielectric | 34.036 mm | 1.34 in |
| Diameter Over Jacket | 39.624 mm | 1.56 in |
| Inner Conductor OD | 14.0208 mm | 0.552 in |
| Outer Conductor OD | 36.068 mm | 1.42 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 72 pF/m | 21.946 pF/ft |
| dc Resistance, Inner Conductor | 1.74 ohms/km | 0.53 ohms/kft |
| dc Resistance, Outer Conductor | 0.75 ohms/km | 0.229 ohms/kft |
| dc Test Voltage | 8500 V |
| Inductance | 0.187 µH/m | 0.057 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 10000 V |
| Operating Frequency Band | 1 – 4000 MHz |
| Peak Power | 180 kW |
| Velocity | 92 % |
