780EZNM CommScope Type-N Male EZfit® Connector for 7/8" FXL-780 cable

In Stock

$37.95

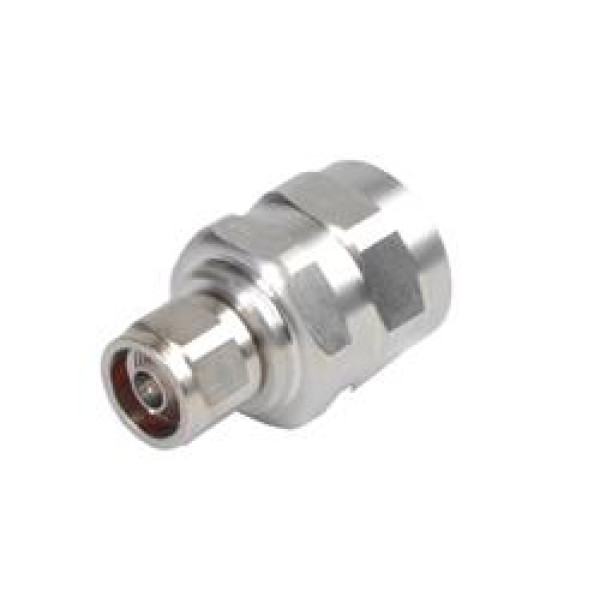

Type-N Male EZfit® Connector for 7/8" FXL-780 cable
MFR: CommScope
SKU: 780EZNM

Details

780EZNM Type-N Male EZfit® Connector for 7/8" FXL-780 cable,

MFR: Commscope

Limited Quantity Available. New Old Stock

General Specifications
Interface	N Male
Body Style	Straight
Brand	EZfit®
Mounting Angle	Straight

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 5000 MHz
Cable Impedance	50 ohm
3rd Order IMD, typical	-116 dBm @ 1800 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)	707.00 V
dc Test Voltage	2000 V
Outer Contact Resistance, maximum	0.30 mOhm
Inner Contact Resistance, maximum	2.00 mOhm
Insulation Resistance, minimum	5000 MOhm
Peak Power, maximum	10.00 kW
Insertion Loss, typical	0.05 dB

Outline Drawing





Mechanical Specifications
Outer Contact Attachment Method	Clamp
Inner Contact Attachment Method	Captivated
Outer Contact Plating	Trimetal
Inner Contact Plating	Silver
Attachment Durability	25 cycles
Interface Durability	500 cycles
Interface Durability Method	IEC 61169-16:9.5
Connector Retention Tensile Force	1334 N \| 300 lbf
Connector Retention Torque	8.13 N-m \| 72.00 in lb
Insertion Force	66.72 N \| 15.00 lbf
Insertion Force Method	MIL-C-39012C-3.12, 4.6.9
Pressurizable	No

Dimensions
Nominal Size	7/8 in
Diameter	37.21 mm \| 1.47 in
Length	51.20 mm \| 2.02 in
Weight	136.00 g \| 0.30 lb
