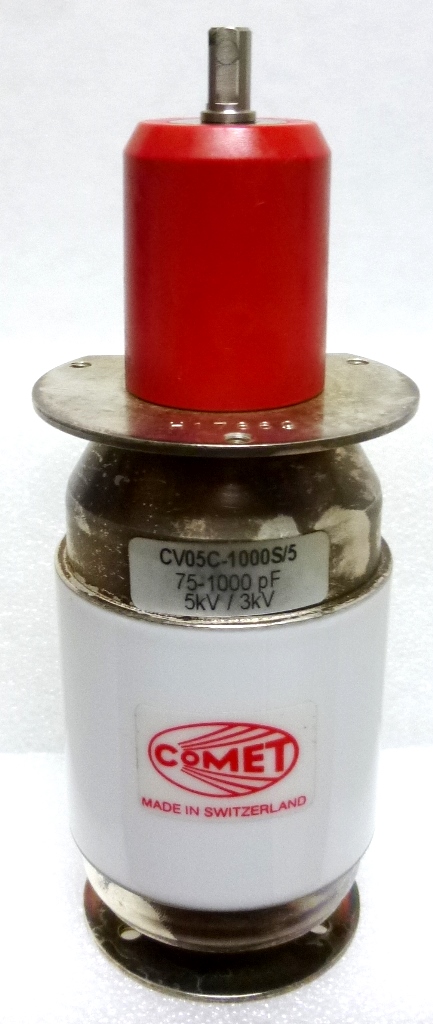

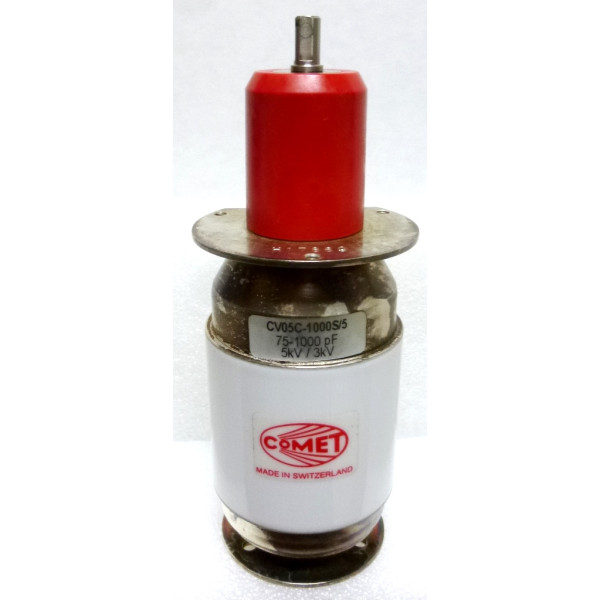

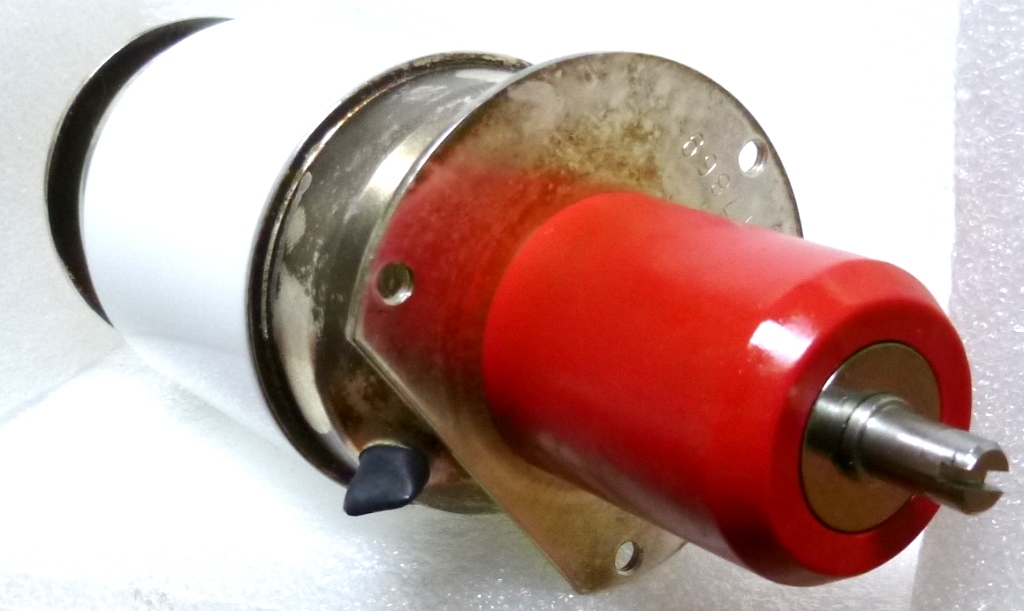

CV05C-1000S/5 COMET Vacuum Variable Capacitor 75-1000pf 5kv Peak (Pull-NOS)
In Stock
Capacitance: 75-1000 pf • Voltage Rating: 3-5 KV • Current Rating: 57 Amps RMS Max.
This capacitor was emoved from working equipment and tested. Included is a Ninety Day Warranty.
Max Length: 5.81 in / 147.6mm • Max Diameter: 2.13 in / 54mm • 1/4" Round Slotted Shaft • Weight: 1.35 lbs
Mounting: Six threaded holes on top and bottom of cap.
MFR: COMET, Switzerland
No longer available for export
Details
CV05C-1000S/5 COMET Vacuum Variable Capacitor 75-1000pf 5kv Peak (Pull-NOS) Basic Con Series
Capacitance: 75-1000 pf
Voltage Rating: 3-5 KV
Current Rating: 57 Amps RMS max
Dimensions:
Max Length: 5.81 in / 147.6mm
Max Diameter: 2.13 in / 54mm
Weight: 1.35 lbs
Mounting: 6 threaded holes on top and bottom of body • Shaft: 1/4 Round with slot
Removed from working equipment and tested. Included is a Ninety Day Warranty.
MFG: COMET, Switzerland
No longer available for export
You may also be interested in the following product(s)
CV05C-1000PEN/5 Comet Vacuum Variable Capacitor, 50-1000pf, 5kv Peak (Pull)
Regular Price: $399.95
Special Price $379.95
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | COMET |
