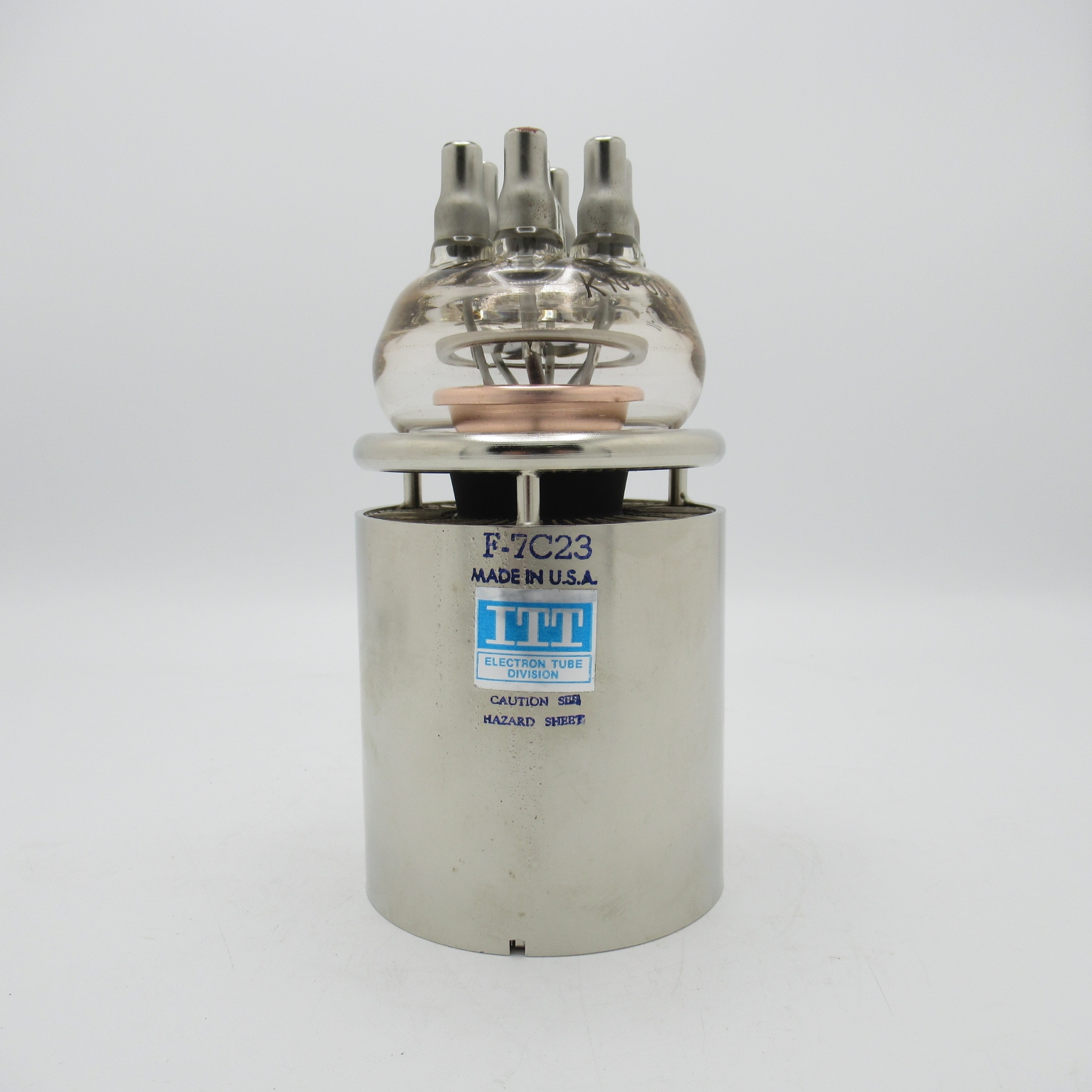

F-7C23 Federal Power Triode (NOS)

7C23 Federal Power  ITT Pulse Rated Transmitting Tube,Triode (NOS) (F-7C23)

The F-7C23 is a Triode tube designed for use in high voltage pulse operation.  The anode is forced air-cooled and capable of dissipating 1200 watts.  The cathode is a thoriated tungsten filament.  Maximum ratings apply up to 5 megacycles.

NSN/FSN = 5960001880886

1.2 kilowatts
Filament Voltage: 11.0 Volts
Amps: 29
Starting Amps: 58
Maximum Ratings, Absolute Values:
DC Plate Voltage = 17,500 Volts
DC Grid Voltage = -2000 Volts
DC Plate Current = 0.100 Ampere
DC Grid Current = 0.010 Ampere
Plate Dissipation = 1200 Watts
Not for Export
Please see our warranty policy on our home page.

MFR: ITT Electron Tube Division for  Federal Telephone and Radio Company

Made in USA

Limited, New Old Stock
