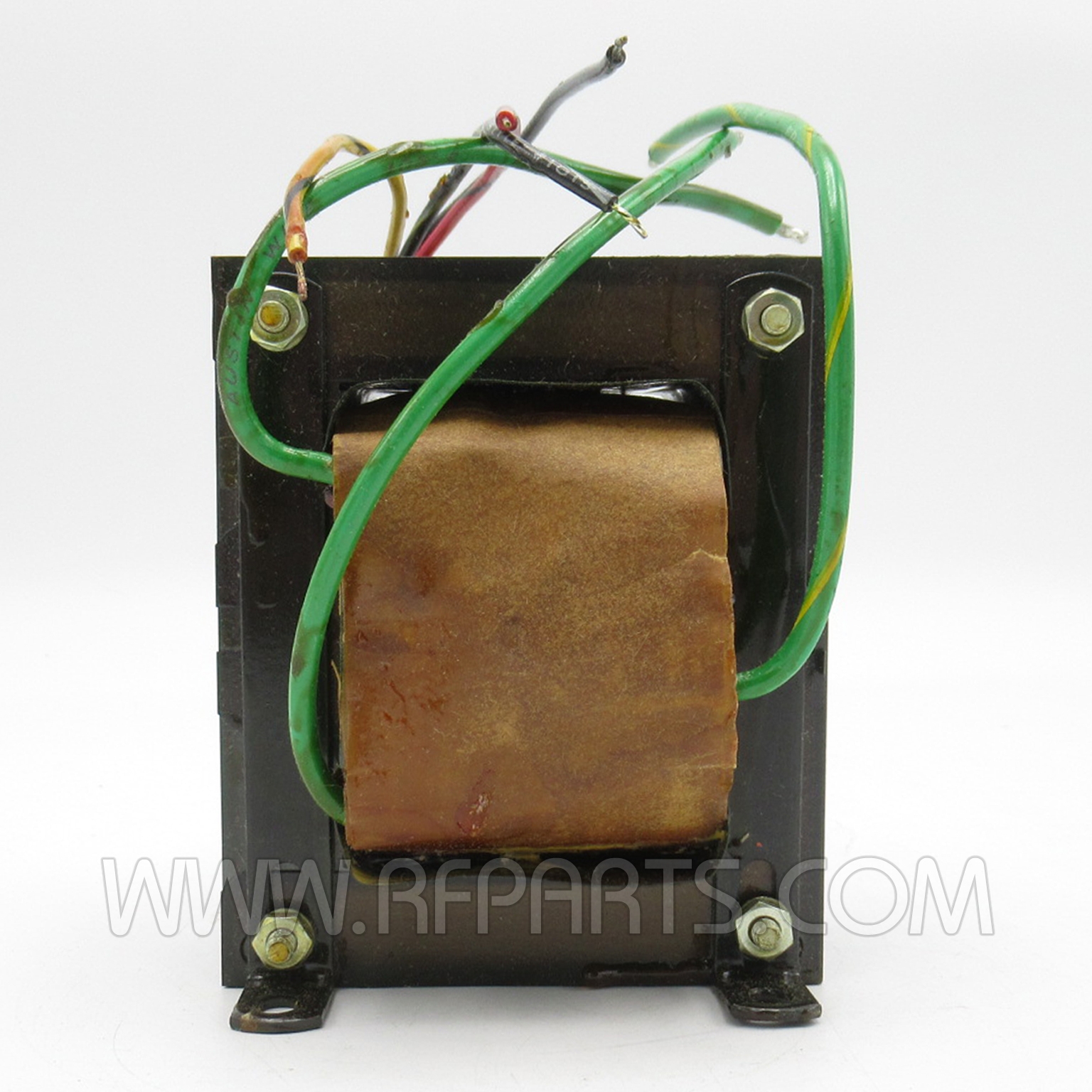

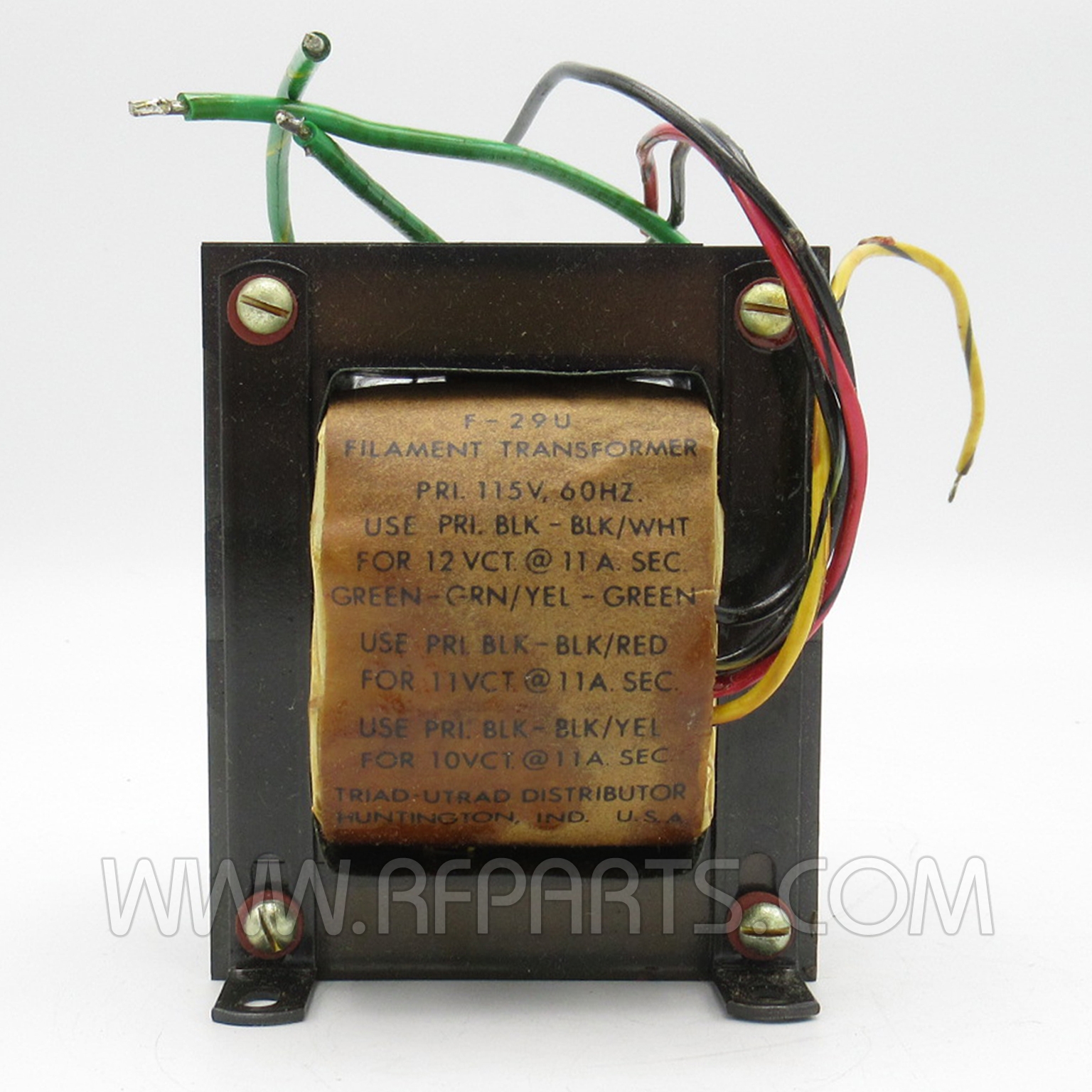

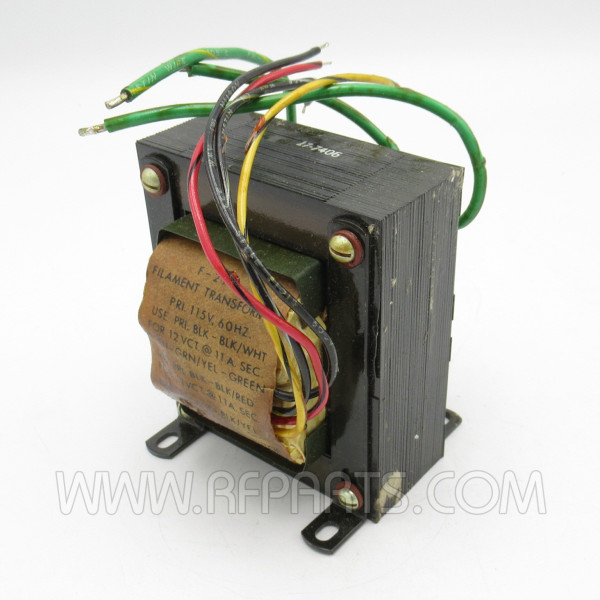

F-29U Triad Filament Transformer 115v 50/60 Hz
In Stock
$45.91
- Voltage - Primary: 115V
- Voltage - Secondary (Full Load): 10V, 11V, 12V
- Current - Output (Max): 11A
- Power - Max: 132VA
- Voltage - Isolation: 3000Vrms
- Weight: 6.5 lbs (2.9 kg)
MFR: Triad Magnetics
SKU: F-29U
See Data Sheet
Details
F-29U Triad Magnetics Filament Transformer 115v 50/60 Hz
- Series: Single Secondary
- Part Status: Active
- Type: Laminated Core
- Voltage - Primary: 115V
- Voltage - Secondary (Full Load): 10V, 11V, 12V
- Current - Output (Max): 11A
- Primary Winding(s): Single
- Secondary Winding(s): Single
- Center Tap: Yes
- Power - Max: 132VA
- Mounting Type: Chassis Mount
- Termination Style: Wire Leads
- Size: Core: 3.5" long x 1.5" wide x 4.185" high
- Windings: 3.5" x 2.5"
- Mounting Holes: Approximately 2.75" x 2.5"
- Height - Seated (Max): 104.77mm
- Voltage - Isolation: 3000Vrms
- Weight: 6.5 lbs (2.9 kg)
MFR: Triad Magnetics
See Data Sheet
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Magnatek Triad |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Triad |
