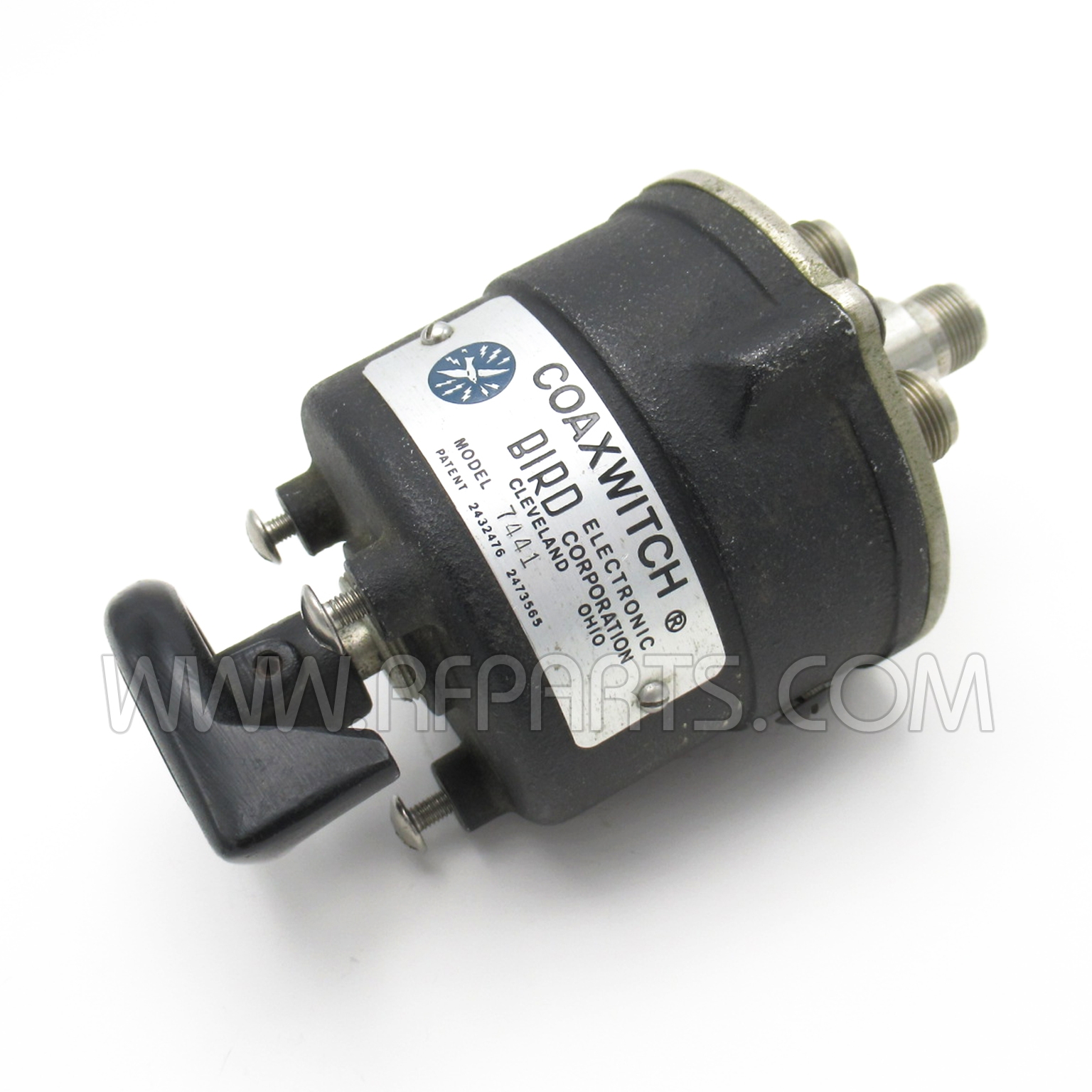

7441 Bird 3 Position Single Circuit Selector Coaxial Switch (Pull)

7441 Bird 3 Position RF Coaxial Selector Switch (Pull)

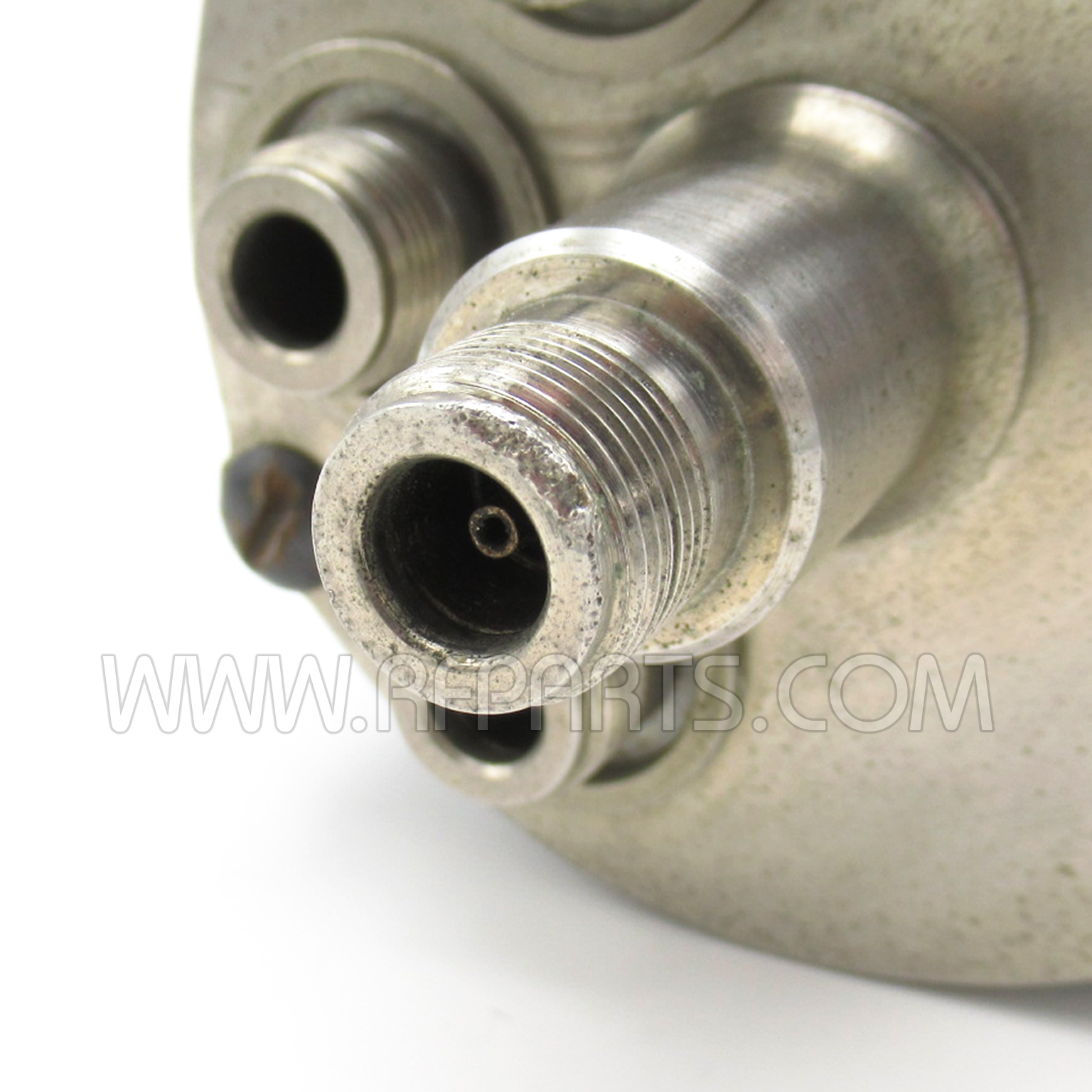

Dent on Center Connection (does not affect transmission)

Used * No longer available for export
MFR: Bird Electronics

Bird®, 50-Ohm Coaxial Selector Switches employ a unique, rugged and reliable design which permits positive contact, low insertion VSWR and negligible cross talk between channels. The switching mechanism is 4 1/2" of RG-87/U Teflon cable which is pulled away from the mating Male N connectors and rotated to the desired switch position.

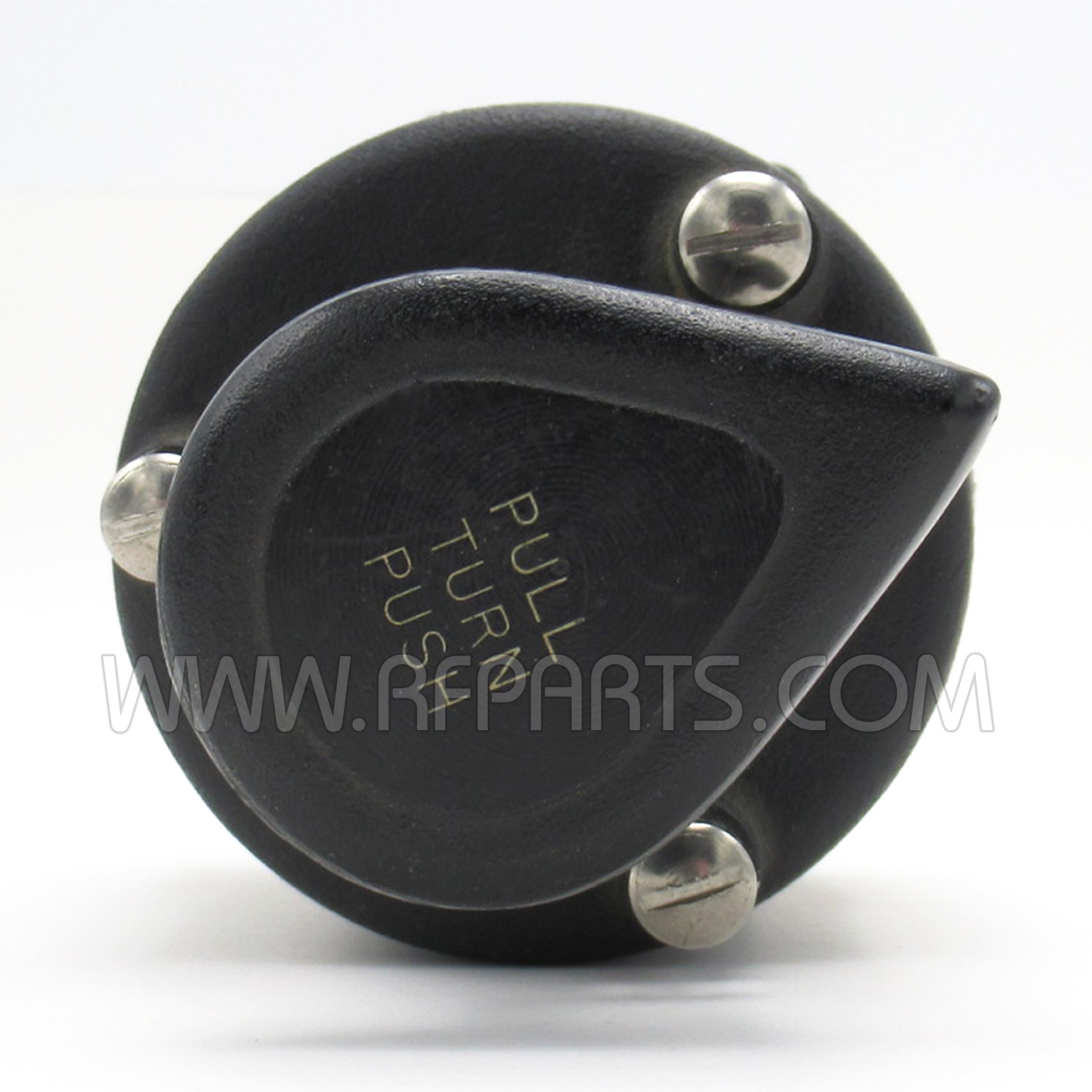

The switches have a valuable advantage that they cannot be operated accidentally, but must be operated by intentional sequential movement. The knob must be grasped, pulled out, rotated and pushed in to make contact.

Features

• Rugged and reliable design which permits positive contact
• Low insertion VSWR and negligible cross talk between channels
• Can’t be operated accidentally - must be operated by intentional sequential movement
• Switches may be panel-mounted

Specifications

• Typical Operating Values

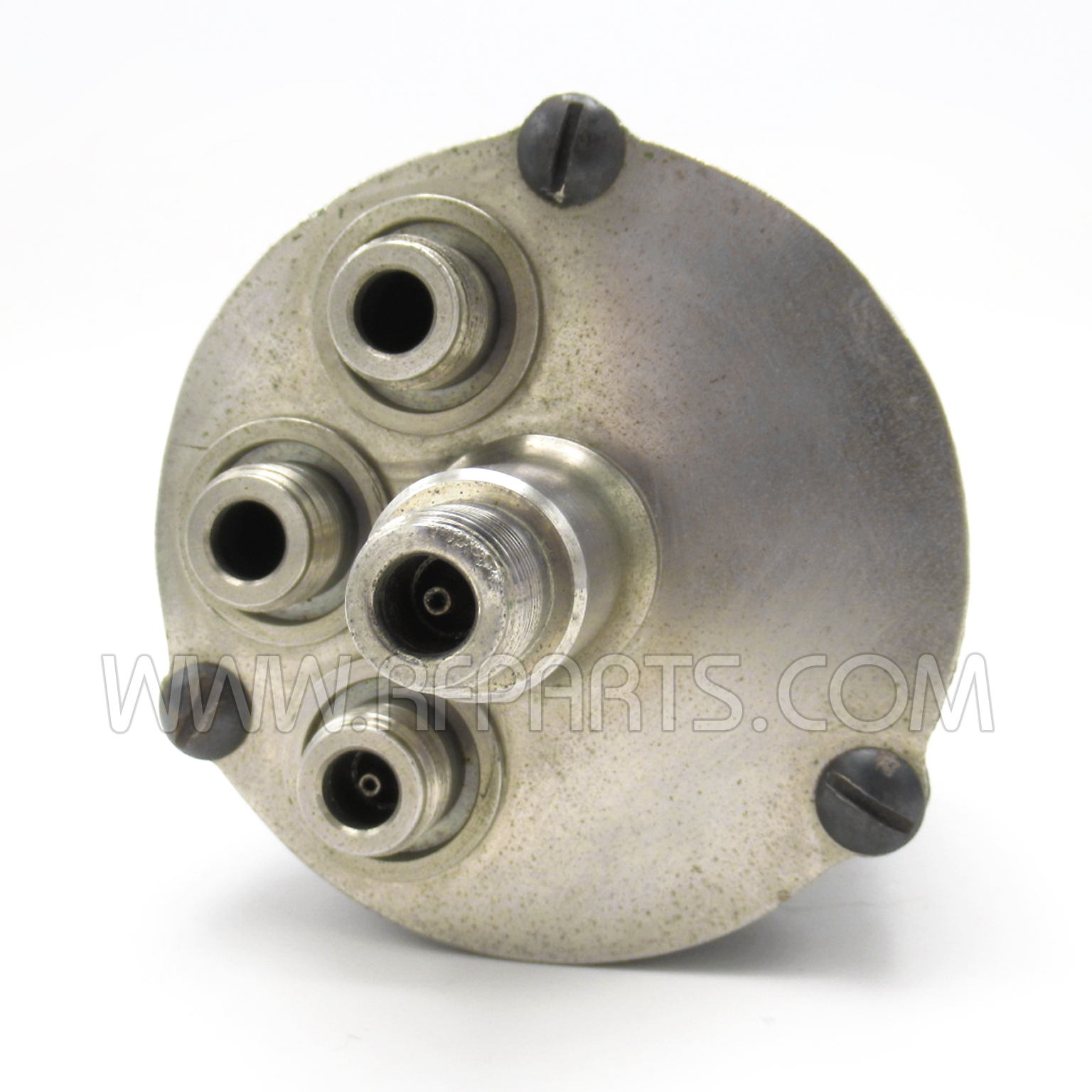

• Connectors: N-Type (F)
• Frequency Range: DC - 10 GHz
• RF Voltage: 500 Volts rms (max)
• Attenuation to Unused Channel: 75 dB

MFR: Bird, USA
