A-50000-311 Dielectric Three Port 3-1/8" Motorized Coaxial Switch (Pull)
Made in the USAIn Stock
$789.91
- Frequency Range: DC-900Mhz
- Impedance: 50 Ohms
- Power Rating Peak: 500kw
- Switching time: 2 Seconds
Used
MFR: Dielectric Communications
SKU: A-50000-311-P
Details

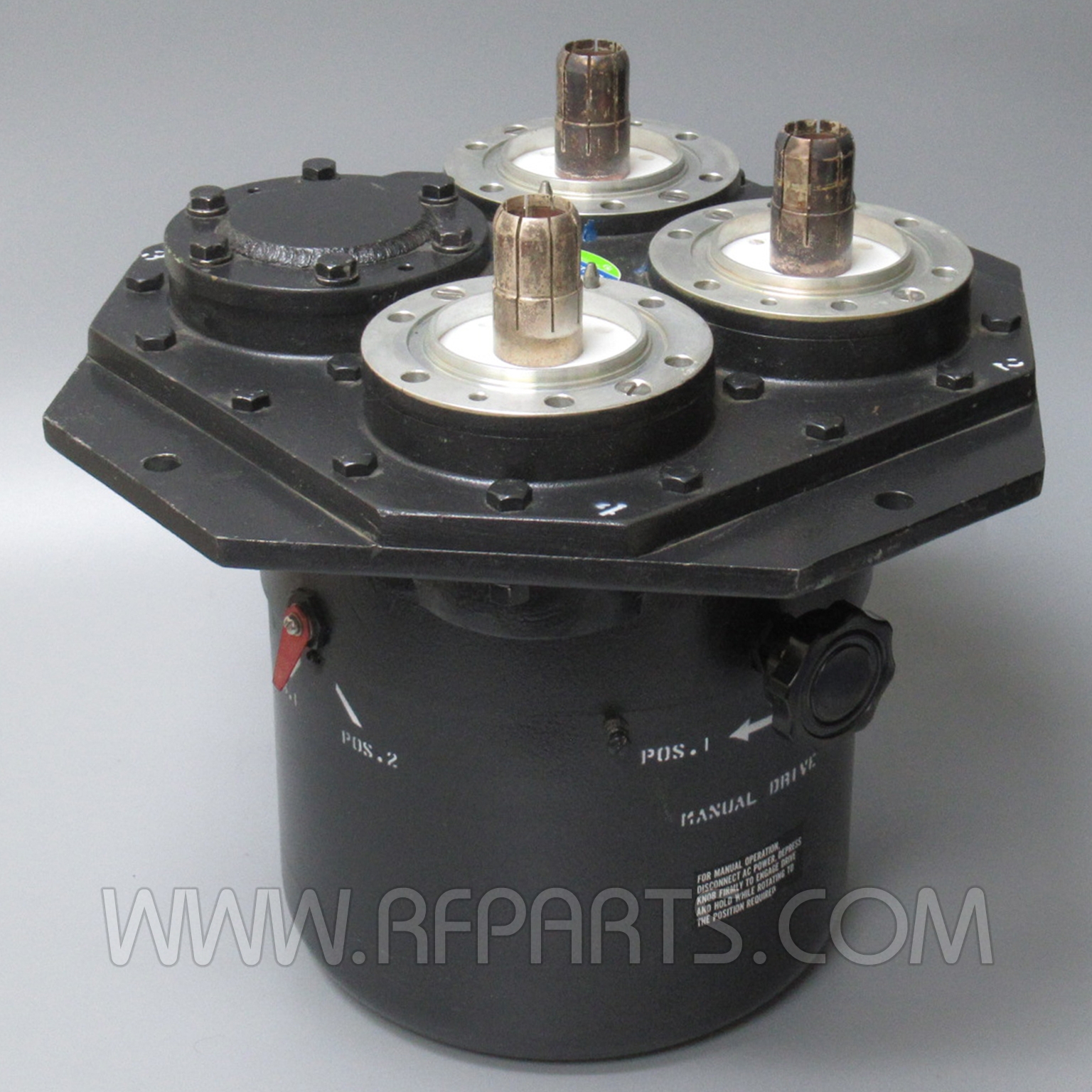

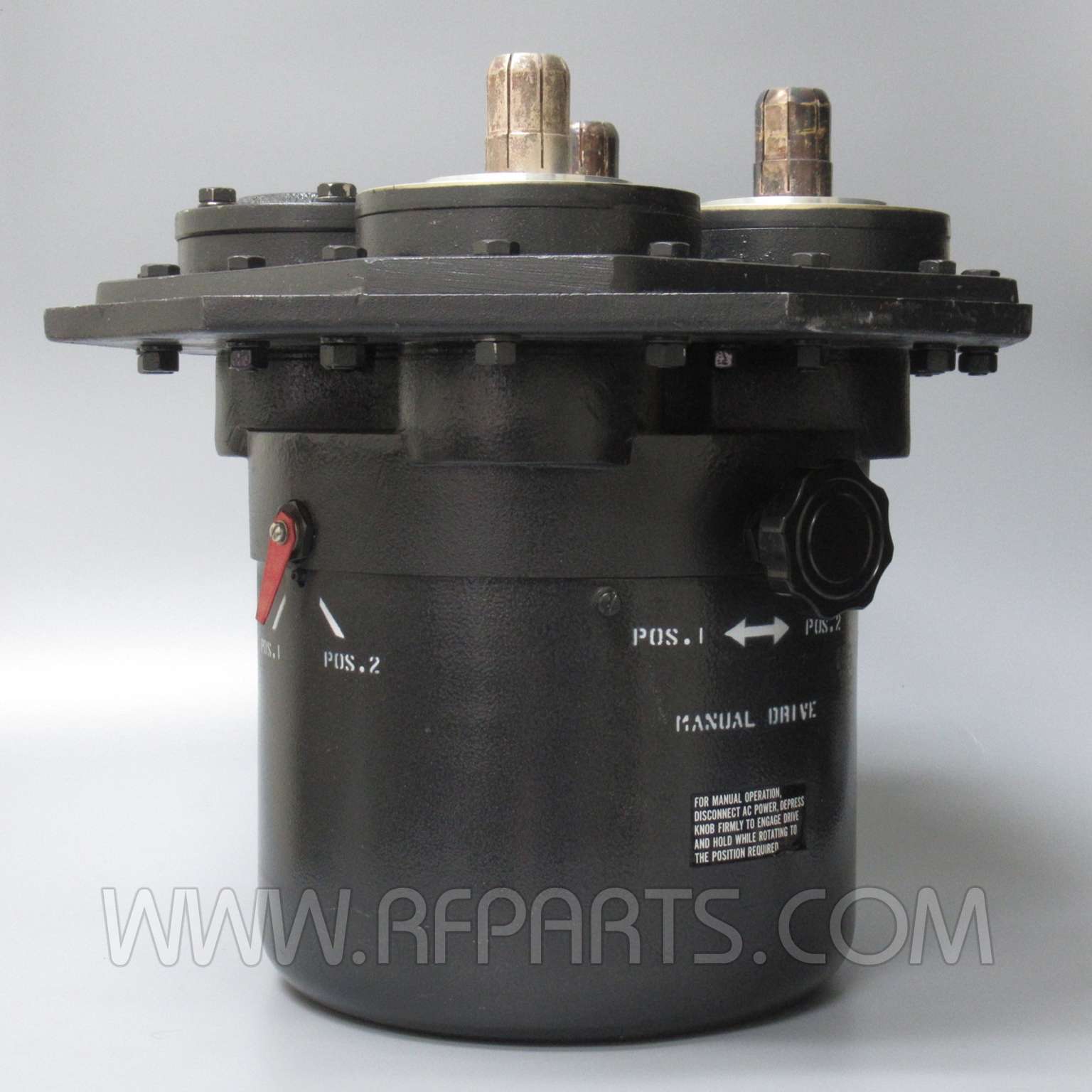

A-50000-311 Dielectric Three Port 3-1/8" Motorized Coaxial Switch (Pull)
The Model 50000 Coaxial Switch provides reliable and fast switching of coaxial transmission line systems. It is a motor driven rotary type and can be controlled locally and/or remotely.
The switch is equipped with a manual override, a mechanical position indicator and with auxiliary read-out circuits.
Operable in any position and having a minimum of moving parts, the switch will routinely operate through 1,000,000 cycles without failure.
- Frequency Range: DC-900Mhz
- Impedance: 50 Ohms
- VSWR: 1.95:1
- Insertion Loss: 0.1dB max.
- Power Rating Peak: 500kw
- Switching time: 2 Seconds
- Isolation: 60dB
- RF Connectors: EIA Male
- Net Weight: 54lbs (24.5kg)
Used
MFR: Dielectric Communications
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Dielectric Communications |
