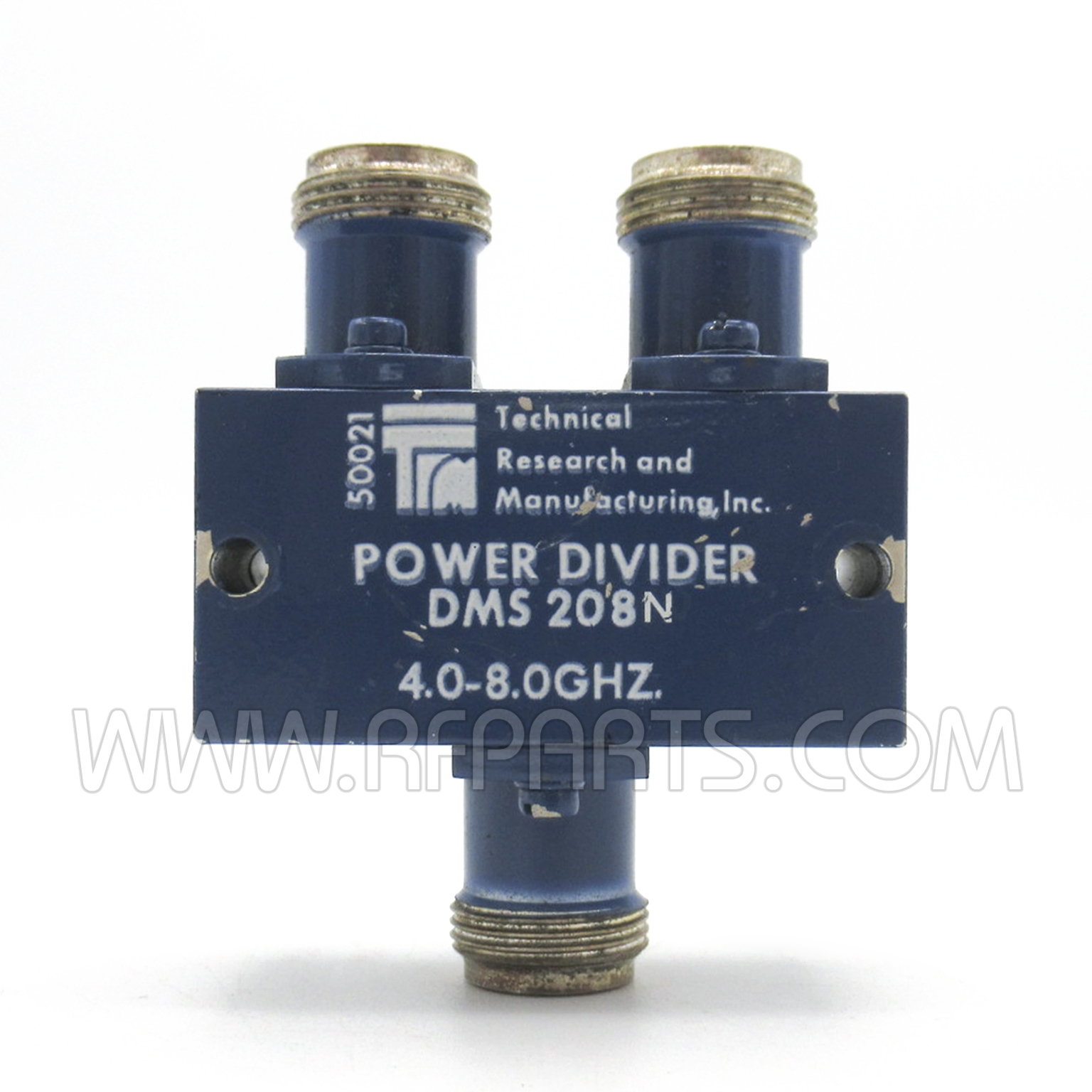

DMS208N Power Divider, 4-8 GHz, 20dB Isolation TRM (Pull)
In Stock
Regular Price: $94.91
Special Price $79.95
- Connectors: Type-N Female
- Size: 2" x 1" Body, 2.5" overall length
Used clean * No longer available for export
MFR: TRM Microwave
SKU: DMS208N
Details
DMS208N TRM Power Divider, 4-8 GHz, 20dB Isolation, 50 Ohm (Clean Used)
ELECTRICAL PROPERTIES:
| Freq Range MHz | Insertion Loss (dB Max.) | Isolation (dB Min.) | VSWR In (Max.) | VSWR Out (Max.) | Amp Bal (dB Max.) | Phase Bal (Deg. Max.) | Input Power (Watts Max.) |
|---|---|---|---|---|---|---|---|
| 20-200 | 0.4 | 20 | 1.30:1 | 1.30:1 | 0.4 | 3 | 50 |
Connectors: Type-N Female
Size: 2" x 1" Body, 2.5" overall length
New Old Stock * No Longer available for export
MFR: TRM Microwave
Product Details
-
Part Number : DMS208/N
-
Manufacturer : TRM Microwave
- Description : 4 to 8 GHz, 2 Way Octave Power Divider
General Parameters
-
Configuration : 2 Way
-
Type : Octave Power Divider
-
Frequency : 4 to 8 GHz
-
Insertion Loss : 0.4 dB
-
Isolation : 20 dB
-
Input Power : 50 W
-
Amplitude Balance : 0.4 dB
-
Phase Balance : 3 Degree
-
VSWR : 1.30:1
-
VSWR Input : 1.30:1
-
VSWR Output : 1.30:1
-
Package Type : Module with Connectors
-
Connector : N Type, N Type - Female
-
Grade : Military, Space, Commercial
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | TRM Microwave |
