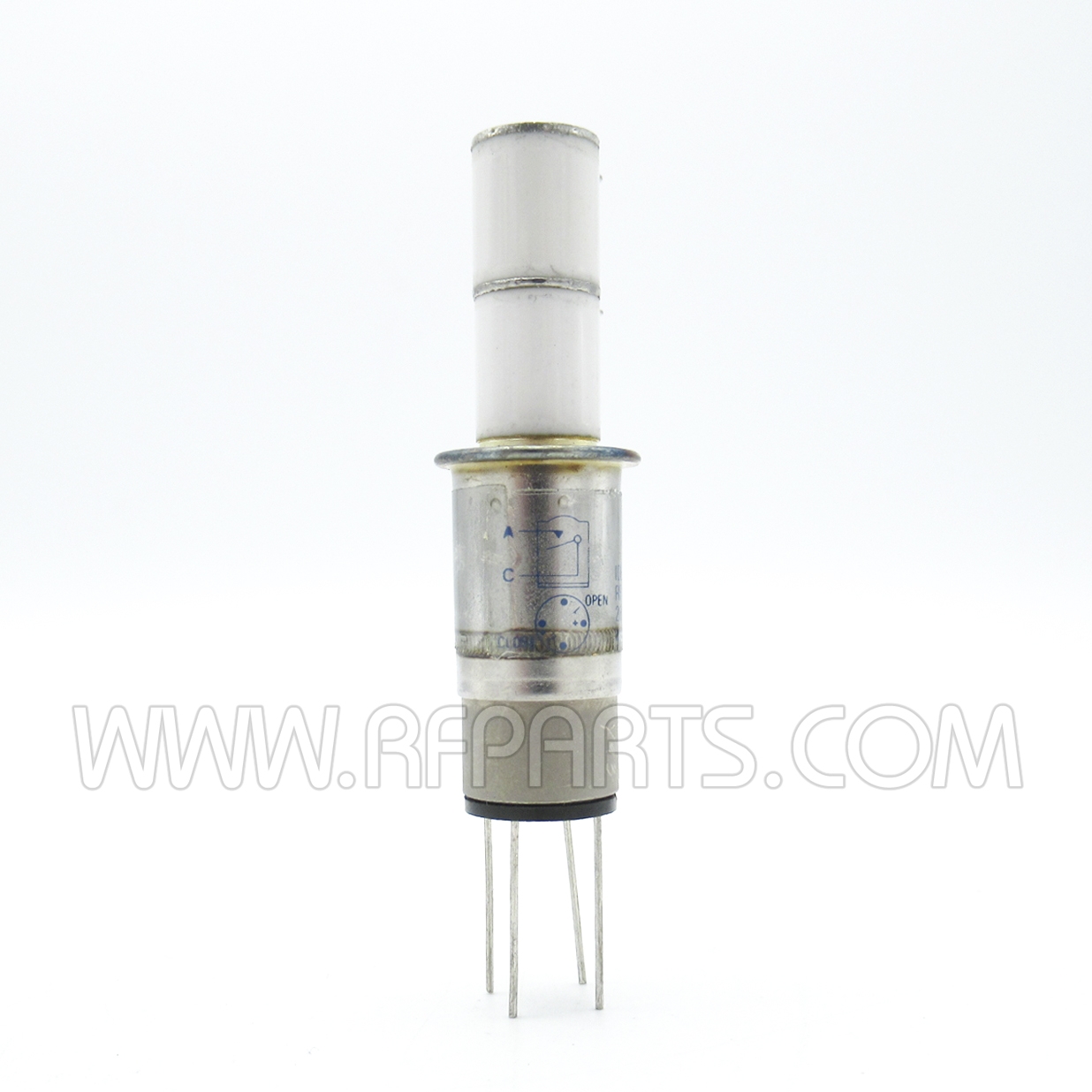

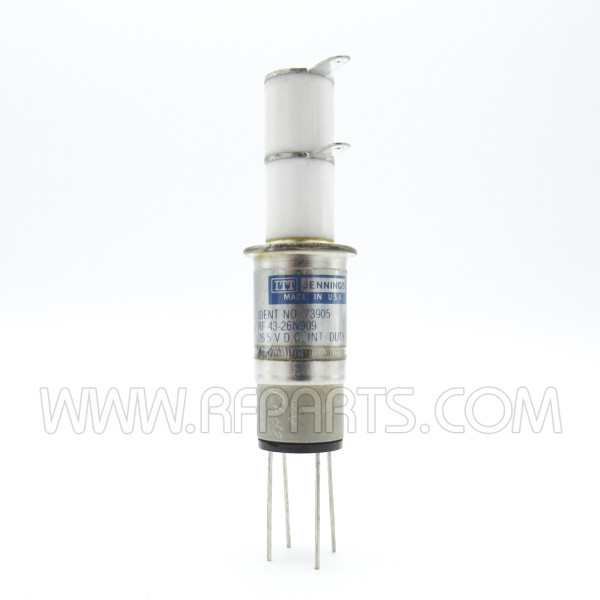

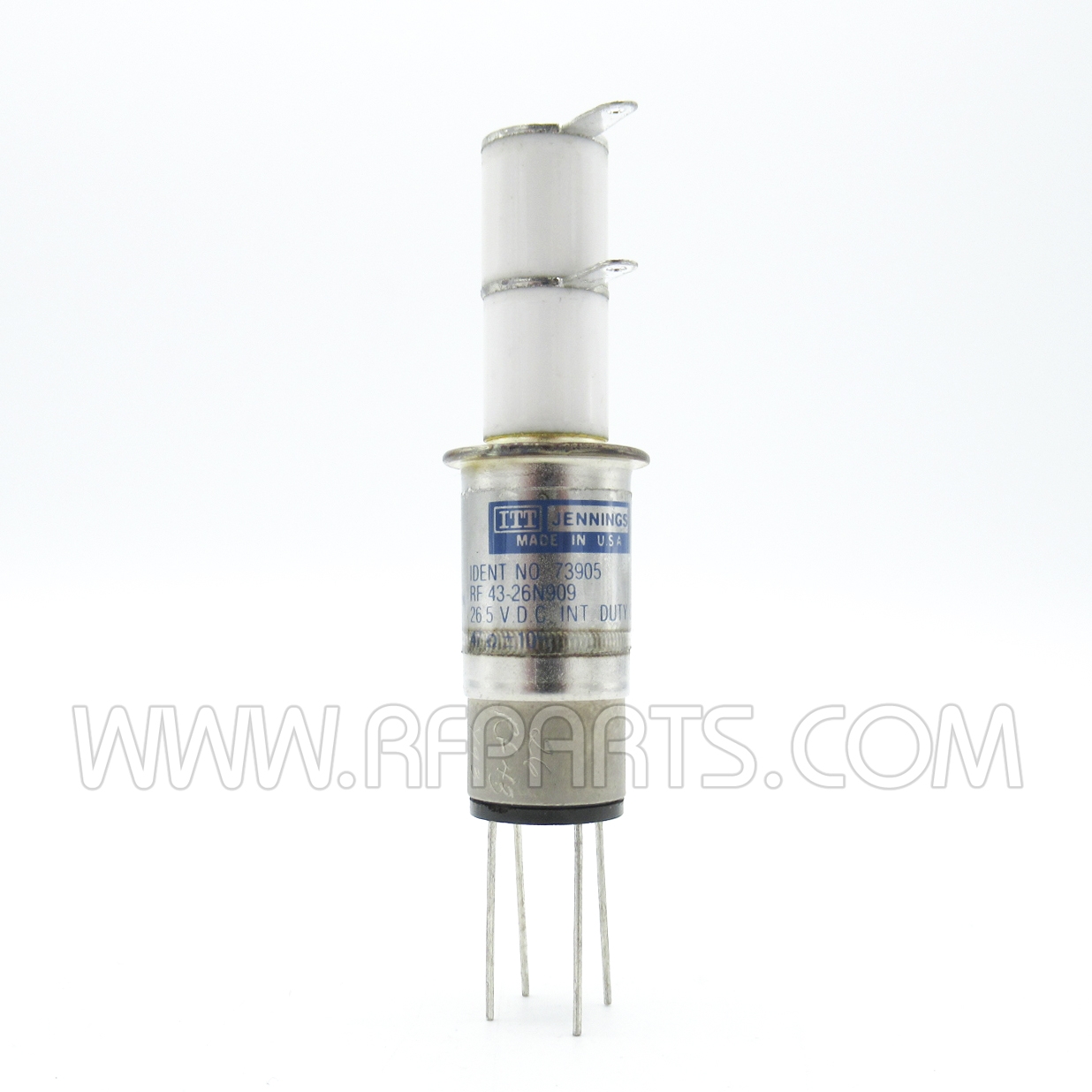

RF43-26N909 Jennings Vacuum Relay 26.5 VDC 12 AMP 47 Ohm 7kv 9kv Peak SPST (NOS)
Made in the USAIn Stock
$67.91
- Test Voltage: 9 kV
- Peak Voltage: 7 kV
- Current Carry Amps (RMS): 12 amps
MFR: Jennings Radio
SKU: RF43-26N909
Details
RF43-26N909 Jennings Vacuum Relay 26.5 VDC 12 AMP 47 Ohm 7kv 9kv Peak SPST (NOS)
- Test Voltage: 9 kV
- Peak Voltage: 7 kV
- Current Carry Amps (RMS): 12 amps
- Contact Close Speed: 10 MS (Milliseconds)
- Contact Release Speed: 10 MS (Milliseconds)
- Rated Life Operations: 1,000,000
- Coil Resistance: 47 Ohms
- Coil Voltage: 26.5 VDC
- Coil Special Note: Intermittent duty, PULSE ONLY (Do not leave coils energized)!
MFR: Jennings Radio
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | No |
