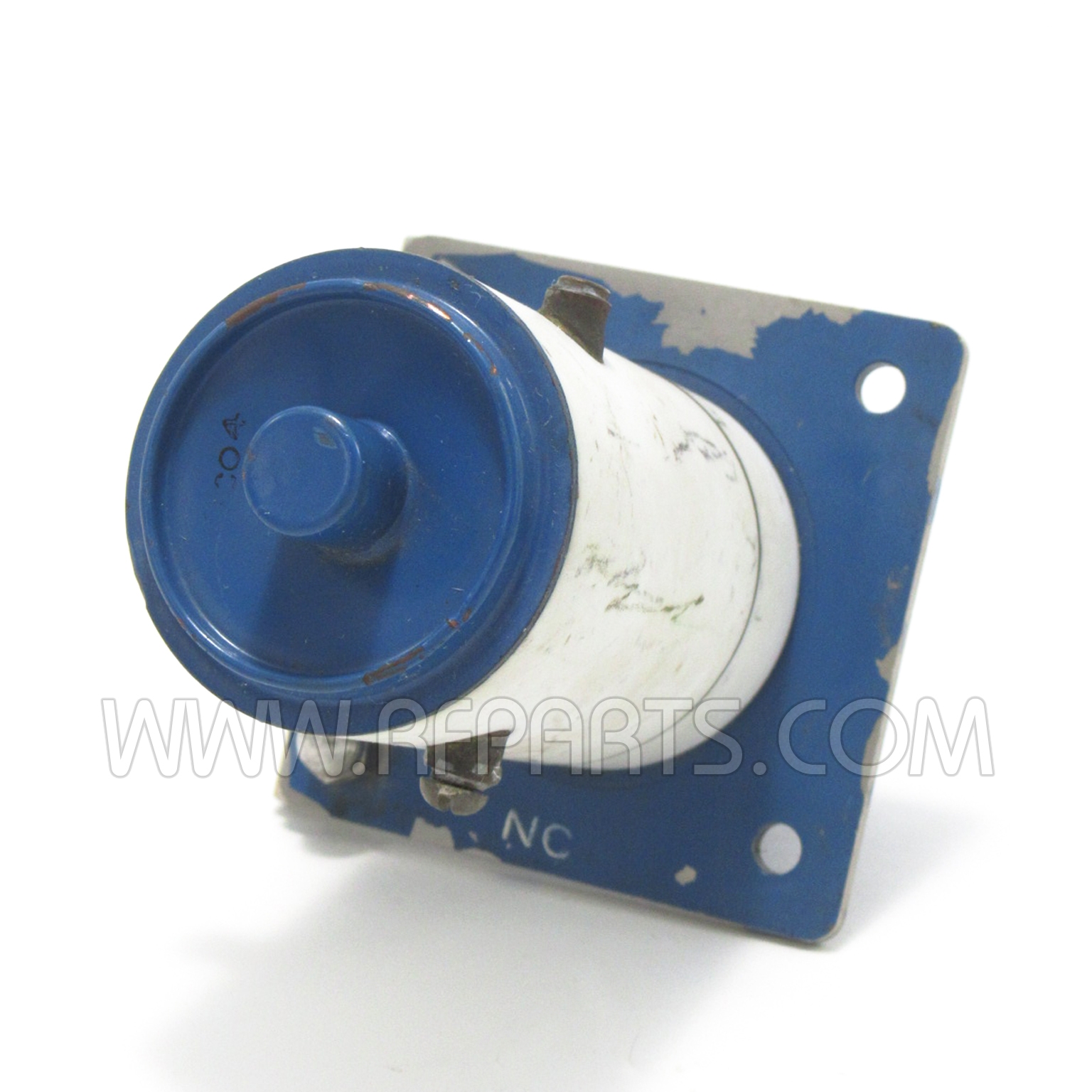

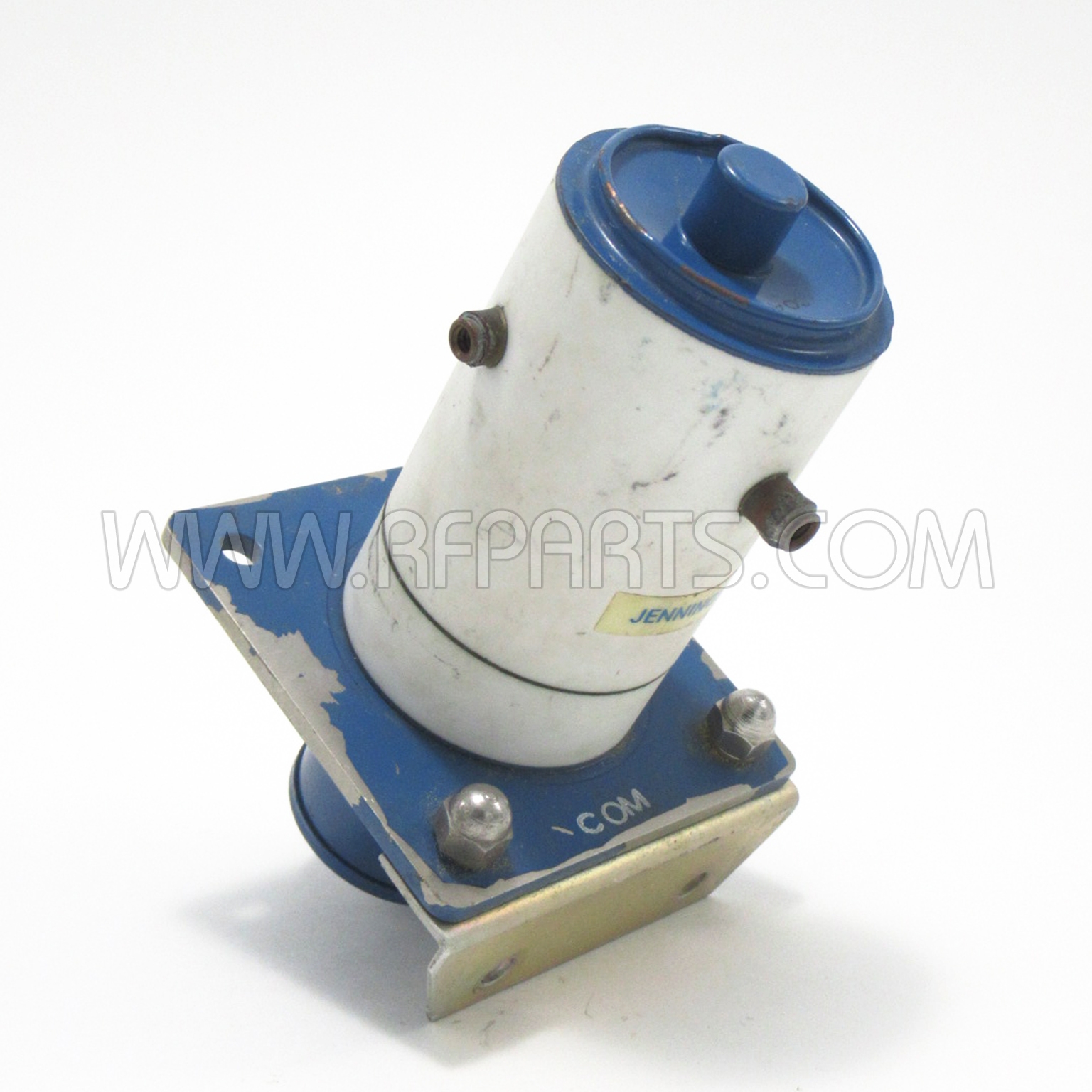

RF10B Jennings SPDT Vacuum Relay 26.5VDC 225 Ohms ±10% (Pull)

RF10B Jennings SPDT Vacuum Relay 26.5VDC 225 Ohms ±10% (Pull)

Ground isolated relay. Excellent performance for both DC and RF circuits. Continuous Current to 10 A at 16 MHz. Interrupts 45 KW (9 kVor 5 A max.)
Flange mount.

Test Voltage (kV Peak) 60 Hz: 20
Rated Operating Voltage (kV Peak)
     DC or 60 Hz: 15
     2.5 MHz: 13
     16 MHz: 10
     32 MHz: 8
Continous Current, Carry (Amps, RMS)
     DC or 60 Hz: 75
     2.5 MHz: 22
     16 MHz: 15
     32 MHz: 12
Contact Capacitance (pF)
     Between Open Contacts: 1.8
     Open Contacts to Ground: 1.5
Contact Resistance (mΩ): 12
Operate Time (ms. Max.): 30
Release Time (ms. Max.): 10
Pull-in Voltage @ 25° C, 26.5 VDC Coil: 16
Dropout Voltage @ -55 to 125° C, 26.5 VDC Coil: 1-10
Coil Resistance (Ohms ± 10%) 26.5 VDC Coil: 225
Shock, 1/2 Sine 11 ms. (Peak g's): 30
Vibration, Peak g's
     55-500 Hz: 5
Expected Mechanical Life Cycles (X106): .1
Weight, Ounces (Grams) Max.: 16 (453)

Used
MFR: Jennings Radio

Data Sheet
