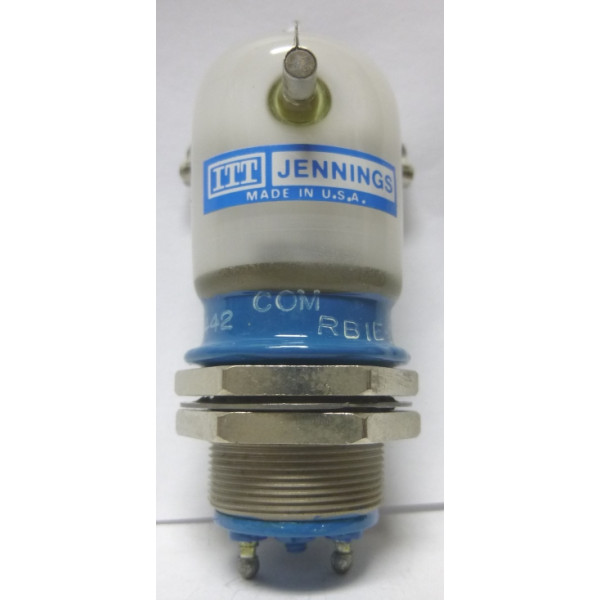

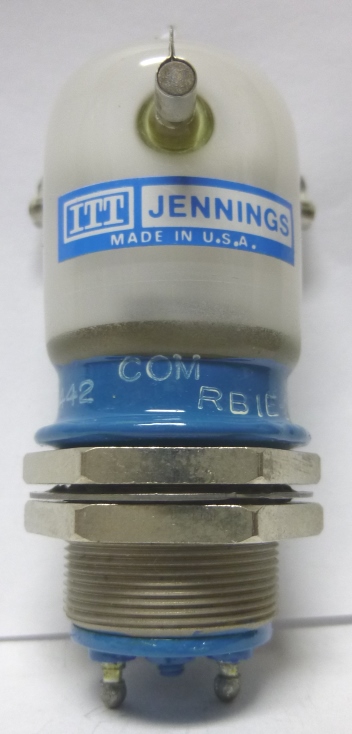

RB1E-26N300 Jennings SPDT Vacuum Relay 26.5vdc (NOS)

RB1E-26N300 Jennings SPDT Vacuum Relay 26.5vdc 18kv Peak (NOS)

• Thread Mount version of the RB1D.
• NSN # 5945-00-133-0439  MIL-R-83725
• Test Voltage: 18kv peak
• Rated Operating Voltage (kV Peak): dc or 60Hz 12; 2.5 MHz 10; 16 MHz 8; 32 MHz 5
• Continuous Current, Carry (A, RMS): dc or 60Hz 15; 2.5 MHz 10; 16 MHz 6; 32 MHz 4
• Contact Capacitance (pF): Between open contacts 0.5; Open Contacts to Ground: 1.0
• Contact Resistance (mΩ): 12
• Operate Time (ms. Max.): 18
• Release Time (ms. Max.): 8

New Old Stock
MFR: Jennings Radio
