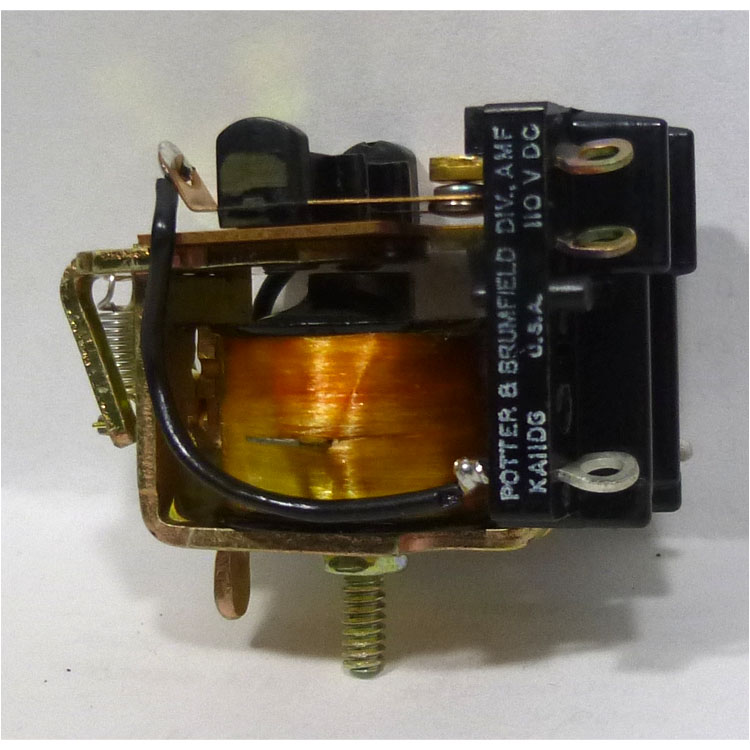

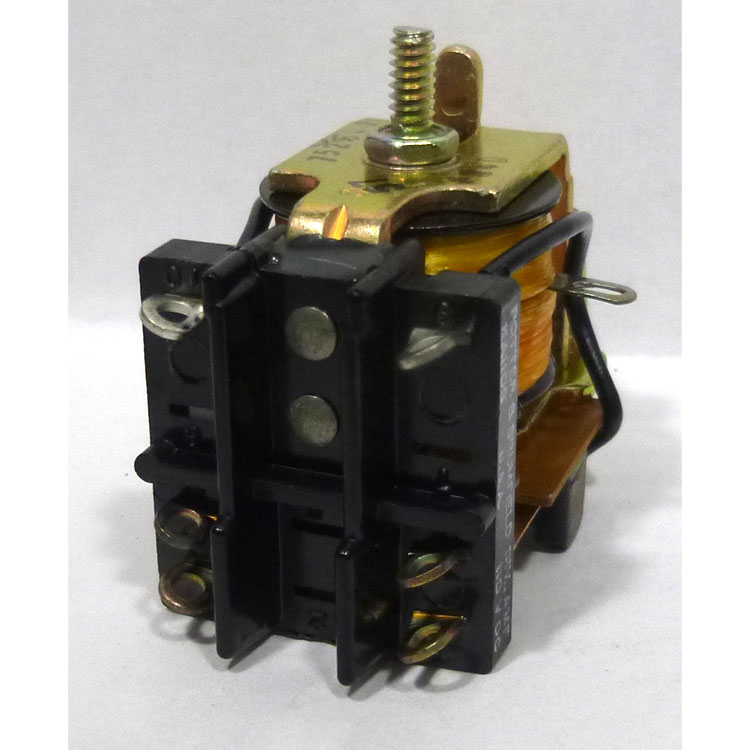

KA11DG-110V Potter Brumfield Open Frame Relay, DPDT, 110v 10amp (NOS)
In Stock
Coil Resistance: 10kohm
Contact Voltage AC Nom: 240 V
External Width: 37.29 mm
Nom Operating Power: 1.2 W
Coil Current: 11.5 mA
External Height: 34.93 mm
Contact Current Max:10 A
External Depth: 48.8 mm
Coil Voltage VDC Nom: 110 V
Can be used as a replacement in the Heathkit SB200-SB201 Linear Amplifiers
New Old Stock * No longer available for export
MFR: Potter & Brumfield
Details
KA11DG-110V Potter & Brumfield Open Frame Relay DPDT 110v 10amp (NOS)
Can be used as a replacement in the Heathkit SB200-SB201 Linear Amplifiers
Coil Resistance: 10kohm
Contact Voltage AC Nom: 240 V
External Width: 37.29 mm
Nom Operating Power: 1.2 W
Coil Current: 11.5 mA
External Height: 34.93 mm
Contact Current Max: 10 A
External Depth: 48.8 mm
Coil Voltage VDC Nom: 110 V
New old stock * No longer available for export
MFR: Potter & Brumfield
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Potter & Brumfield |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | No |
