82152-146C90500 Transco Coax Relay, SP6T 28vdc MMCX (Pull)
Made in the USAIn Stock
$129.91
Switch comes with MS3116E12-8S 8 Pin Connector for the electrical connection along with 7 PTFE wires of approximately 6 inches pre-installed.
- Impedance: 50 Ohm
- Number of Coils / Contacts: 1 / 6
- Coil Voltage: 28 VDC
Used * No longer available for export
MFR: Transco
SKU: 82152-146C90500
Details

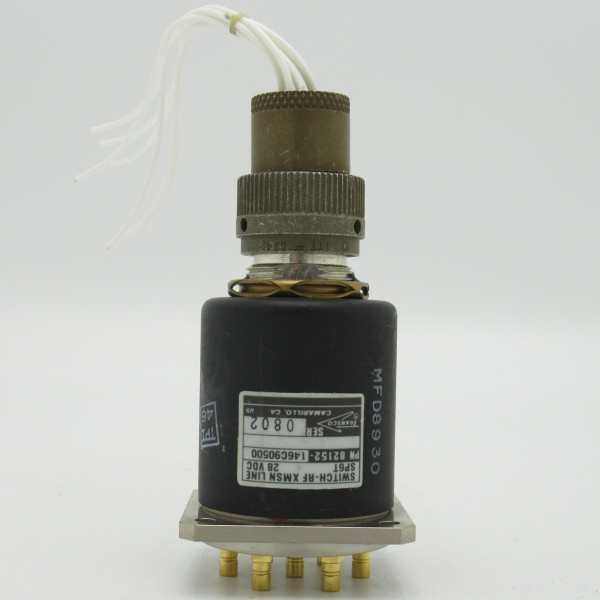

Transco RF Coaxial Switch PN 82152-146C90500
Switch comes with MS3116E12-8S 8 Pin Connector for the electrical connection along with 7 PTFE wires of approximately 6 inches pre-installed.
- Manufacturer: Transco
- Impedance: 50 Ohm
- Number of Coils / Contacts: 1 / 6
- Coil Voltage: 28 VDC
- Connector Type: MMCX with Electrical Mating Connector MS3116E12-8S
- Max Length: 2.43 in / 61.72 mm
- Max Width: 1.75 in / 44.45 mm
- Weight: 4.65 oz. / 131.00 g
- Mounting: 4 drilled holes through mounting flange
Used * No longer available for export
MFR: Transco
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Transco |
