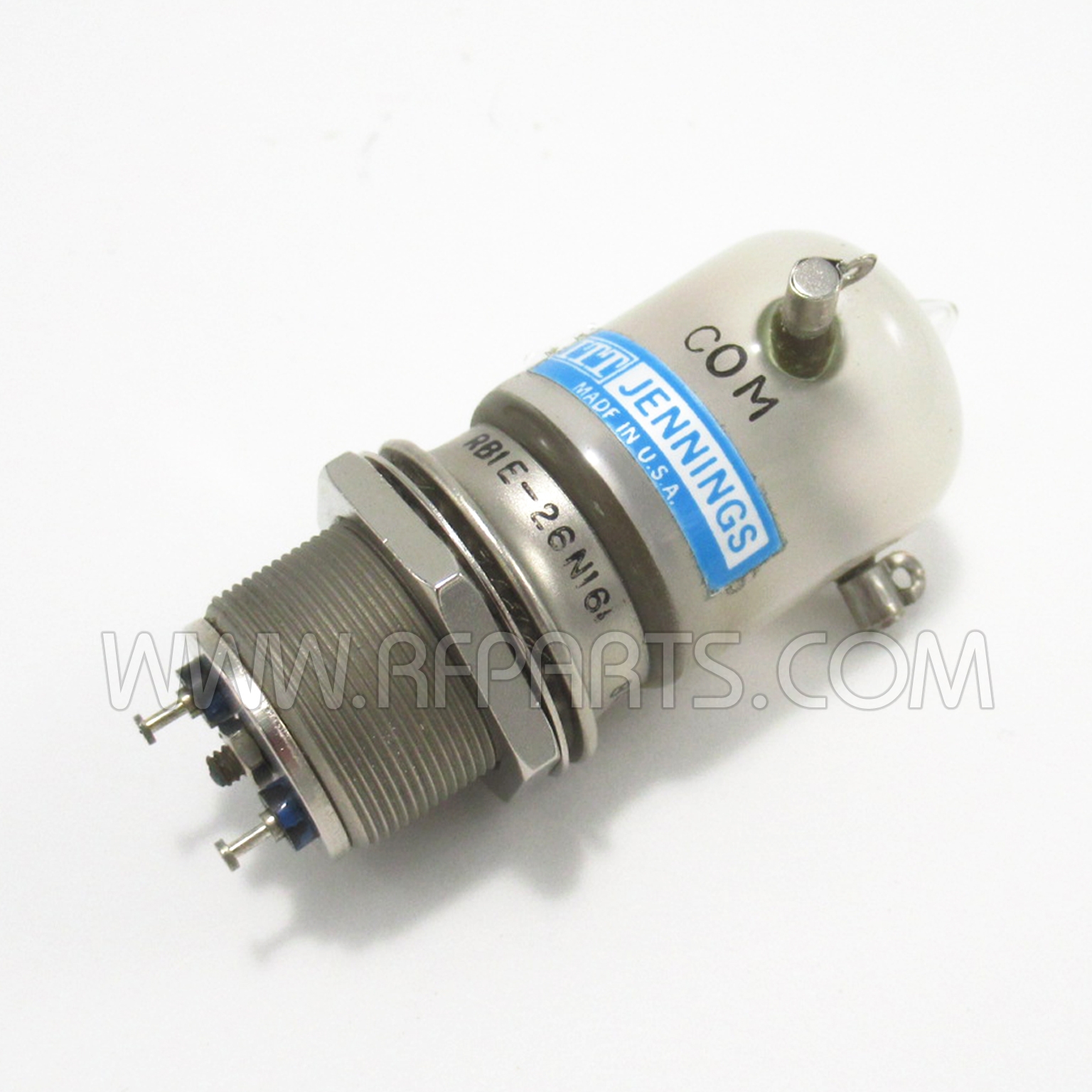

RB1E-26N164 Jennings SPDT Vacuum Relay 26.5vdc 15kv 265 Ohms (NOS)

RB1E-26N164 Jennings SPDT Vacuum Relay 26.5vdc 15kv 265 Ohms (NOS)

• Test Voltage: 18kv peak
• Rated Operating Voltage (kV Peak): dc or 60Hz 12; 2.5 MHz 10; 16 MHz 8; 32 MHz 5
• Continuous Current, Carry (A, RMS): dc or 60Hz 15; 2.5 MHz 10; 16 MHz 6; 32 MHz 4
• Contact Capacitance (pF): Between open contacts 0.5; Open Contacts to Ground: 1.0
• Contact Resistance (mΩ): 12
• Operate Time (ms. Max.): 18
• Release Time (ms. Max.): 8

New Old Stock
MFR: Jennings Radio
