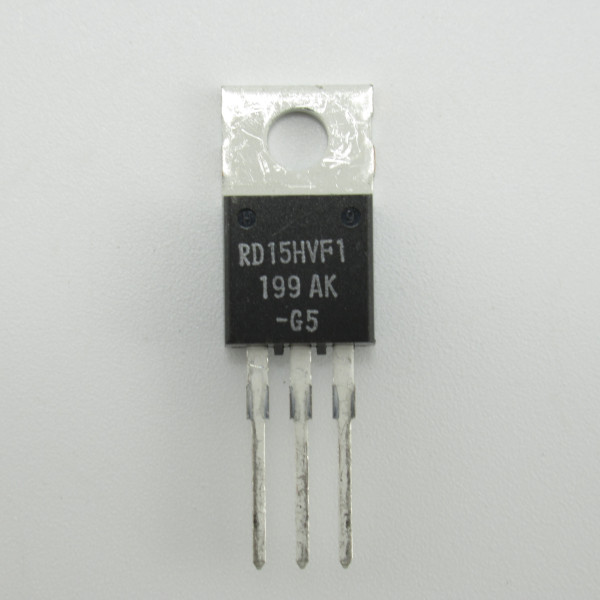

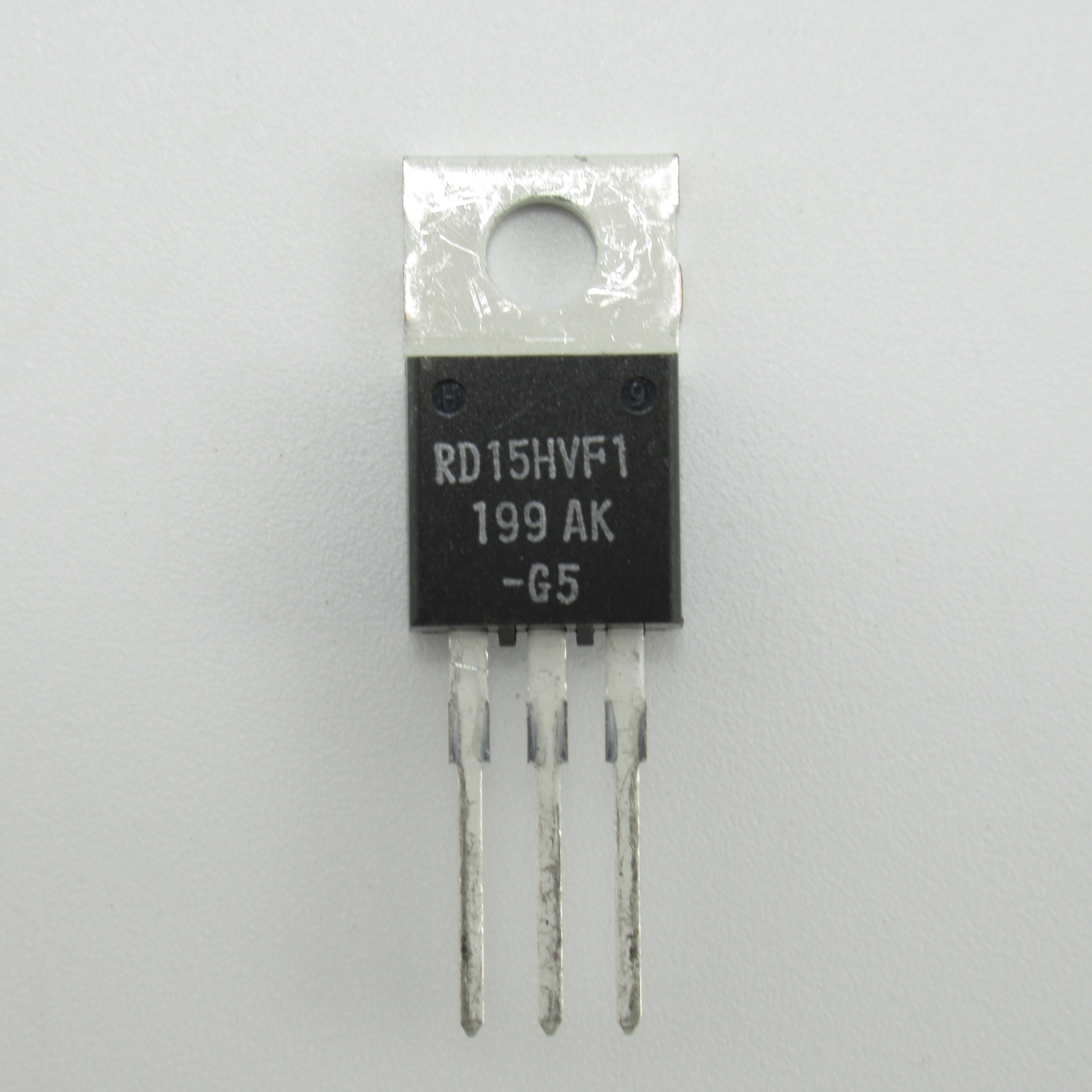

RD15HVF1-501 Mitsubishi MOSFET RF Power Transistor 175 MHz 15W
In Stock
MOSFET Silicon Power Transistor 175MHz - 520MHz 15W
RoHS Compliant
MFR #: RD15HVF1-501
MFR: Mitsubishi, Japan
SKU: RD15HVF1-501
EOL 12/2022
Details
RD15HVF1-501 Mitsubishi MOSFET Power Transistor 175MHz - 520MHz 15w
MFR: Mitsubishi, Japan
DESCRIPTION
RD15HVF1-501 is a MOS FET Silicon type transistor specifically designed for VHF/UHF High power amplifiers applications.
FEATURES
High power and High Gain: Pout>15W, Gp>14dB @Vdd=12.5V, f=175MHz Pout>15W, Gp>7dB @Vdd=12.5V,f=520MHz
High Efficiency: 60%typ. on VHF Band High Efficiency: 55%typ. on UHF Band
APPLICATION
For output stage of high power amplifiers in VHF/UHF Band mobile radio sets.
RoHS COMPLIANT
RD15HVF1 is a RoHS compliant products. RoHS compliance is indicate by the letter “G” after the lot marking. This product include the lead in high melting temperature type solders. However, it is applicable to the following exceptions of RoHS Directions.
1. Lead in high melting temperature type solders(i.e.tin-lead solder alloys containing more than 85% lead.)
MFR part #RD15HVF1-501
EOL 12/2022
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | Mitsubishi |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Mitsubishi |
