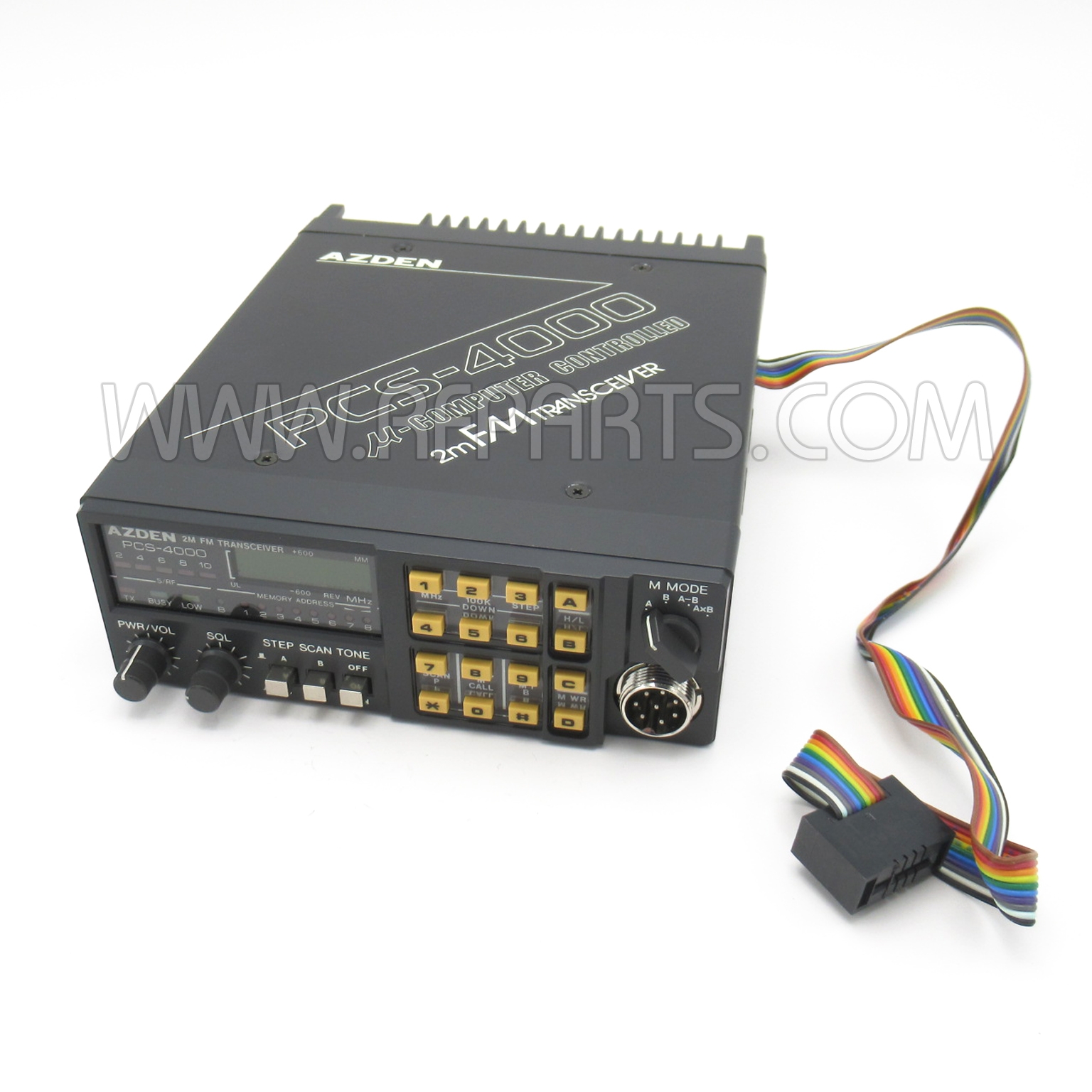

PCS-4000 Azden 2m FM Transceiver (DEMO) No Bracket
In Stock
$166.91
- Type: Amateur VHF transceiver
- Mode: FM
Demo * No longer available for export
MFR: Japan Piezo Company, LTD.
SKU: PCS-4000-D-NO-BRACKET
Details
PCS-4000 Azden 2m FM Transceiver (DEMO) No Bracket
GENERAL
- Type: Amateur VHF transceiver
- Frequency range: Europe
- TX: 144-146 MHz
- RX: 144-146 MHz
- Frequency range: USA
- TX: 142-150 MHz
- RX: 142-150 MHz
- Tuning steps: 12.5 KHz (Europe)
- 5 KHz (USA)
- Mode: FM
- Channels / memory management: 16 regular in two banks
- 2 priority
- RAM storage with NiCd battery backup
- Repeater shift / offset: ±600 KHz (Programmable non-standard splits)
- Power supply: 13.8 VDC ±15%
- Current drain / power consumption: RX: Max 600 mA
- TX: Max 6 A
- Antenna impedance / connector: 50 ohm / SO-239
- Dimensions (W*H*D): 140*50*172 mm (5.51*1.97*6.77")
- Weight: 1.3 Kg (2.87 lb)
- Other features: 1750 Hz tone call (Europe). DTMF keypad. CTCSS/PL option.
RECEIVER SECTION
- Receiver system: Double conversion superheterodyne
- 1st IF: 16.9 MHz
- 2nd IF: 455 KHz
- Sensitivity: 0.2 uV (20 dB quieting)
- Selectivity: 12 KHz (-6 dB)
- 30 KHz (-60 dB)
- Image rejection:
- External speaker connector:
TRANSMITTER SECTION
- RF output power: High Low, 2 m: 25 W 5 W
- Max FM deviation (Factory set): ±5 KHz

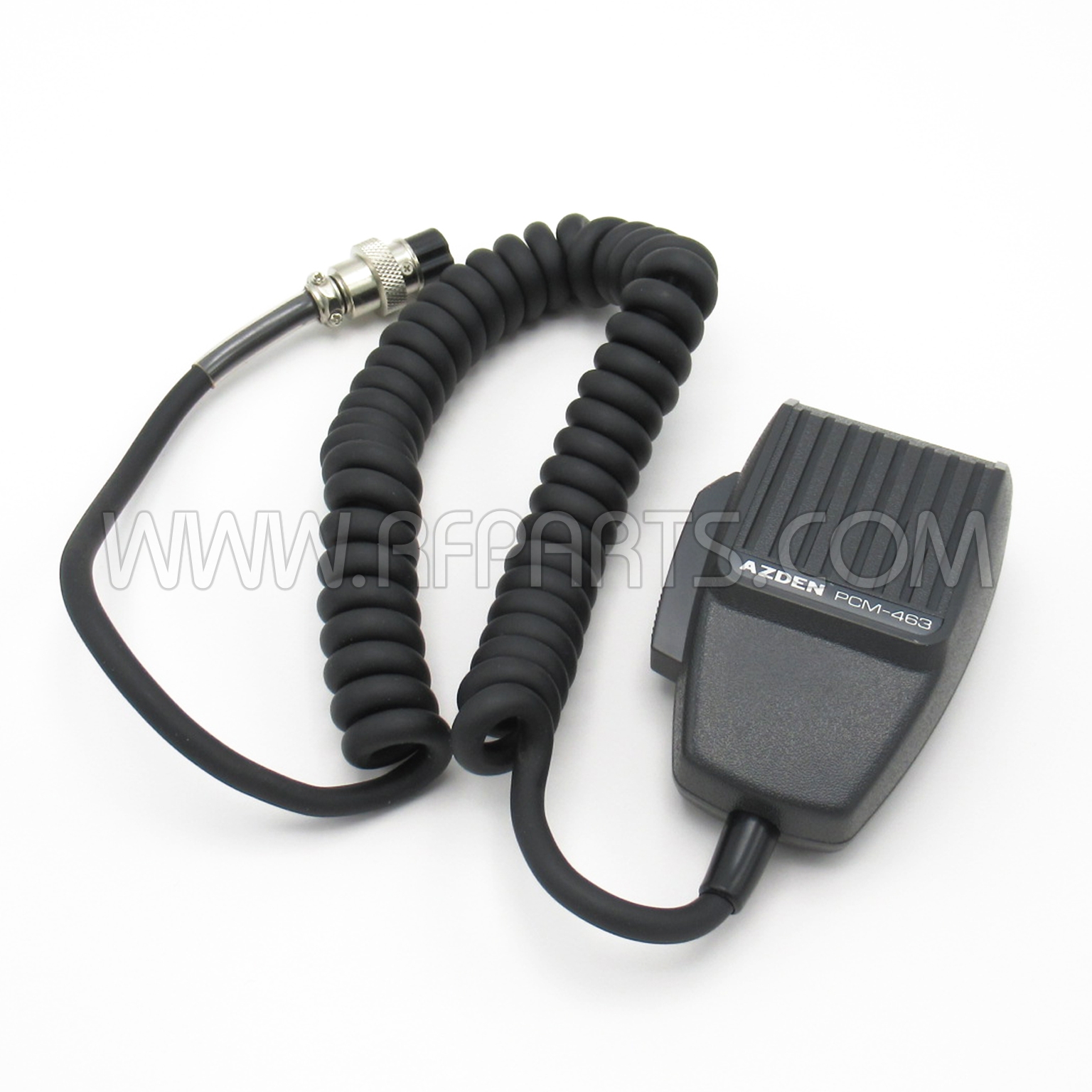

- Microphone impedance / connector: 8-pin (Metal locking ring connector)
Demo * No longer available for export
MFR: Japan Piezo Company, LTD.
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | Used |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | Japan Piezo Company, LTD |
