RA60H1317M1A-501 Mitsubishi RF Module 135-175 MHz 60 Watt 12.5V

RA60H1317M1A-501 Mitsubishi RF Module 135-175 MHz 60 Watt 12.5V

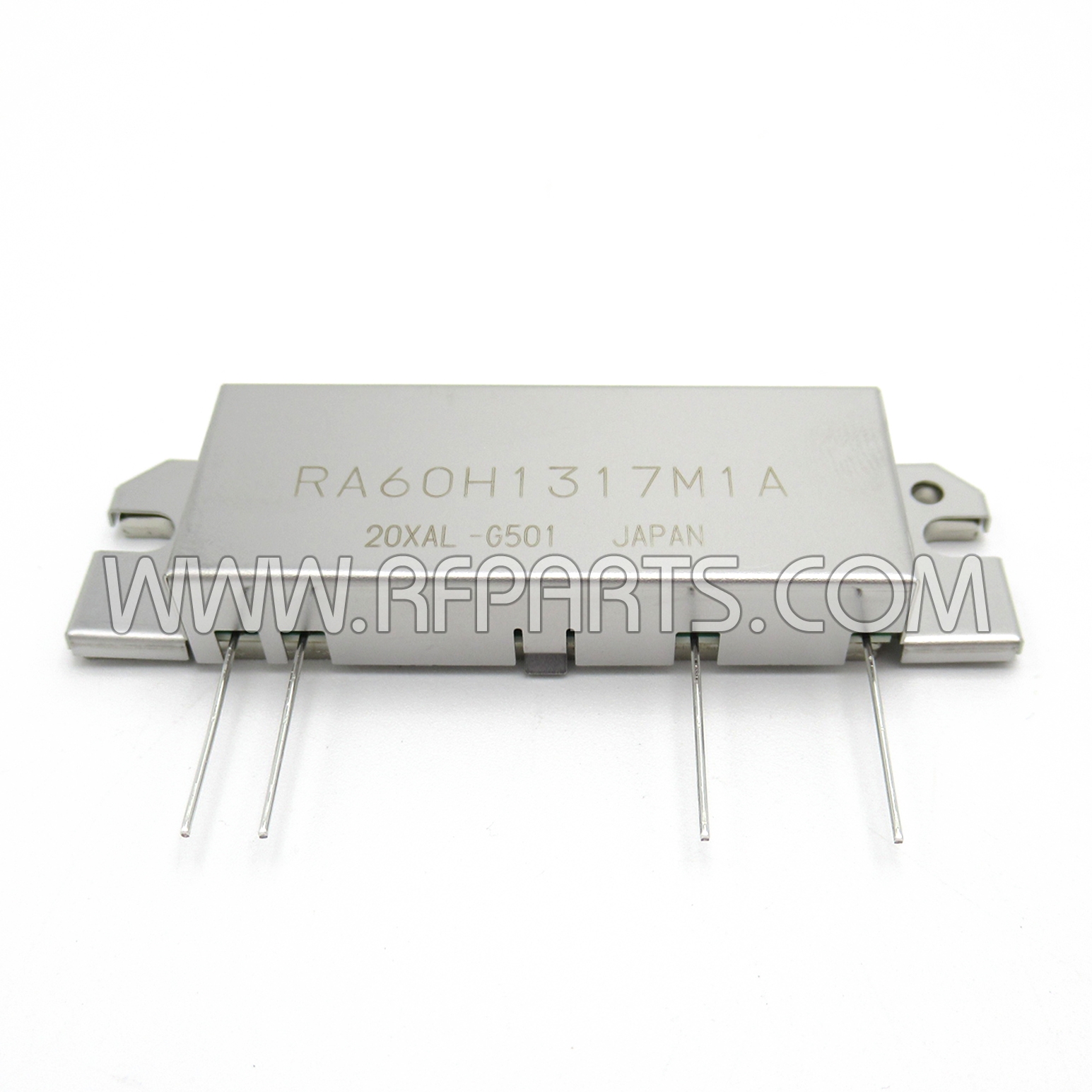

The RA60H1317M1A is a 60-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 136- to 174-MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The output power and drain current increase as the gate voltage increases. With a gate voltage around 4V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 4.5V (typical) and 5V (maximum). This module is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power.

Metal Case
Frequency Range: 136-174 MHz
Vdd: 12 V
Power Output: 60W
Efficiency: 45%
Power Input: 50mW
Case: H2M

MFR: Mitsubishi
