PP45-10 Anderson Powerpole 45 Amp Unassembled Red/Black (10 Sets)

PP45-10 Anderson Powerpole 45 Amp Unassembled Red/Black (10 Sets)

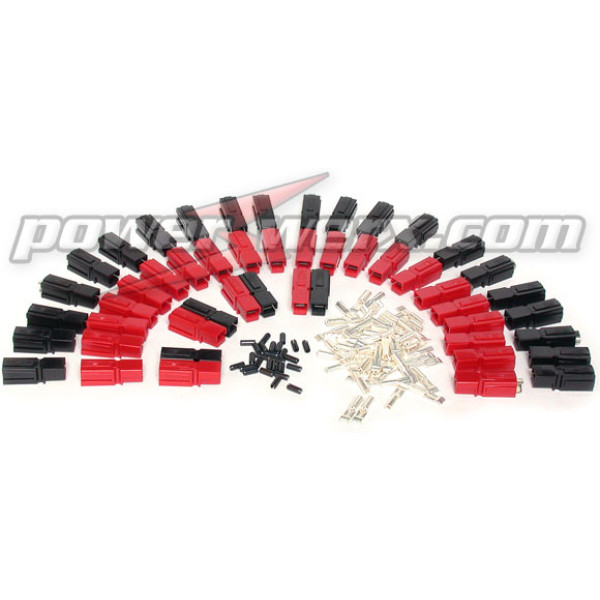

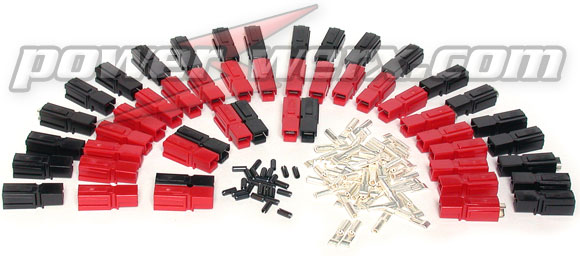

Anderson Power Products Powerpole connectors are available bagged in popular sized sets with volume pricing. A "Set" includes all the parts needed for a single connector. For the 15, 30 & 45 amp Powerpoles; a set includes (1) red housing, (1) black housing, (2) contacts and (1) roll pin.

Recommended for use with 16-20 gauge wire. Unassembled sets can be assembled in any configuration. An included slotted roll pin prevents the housings from sliding apart.

15, 30 & 45 amp Powerpoles will mate with each other
The 15, 30 & 45 amp contacts all use the same housing. Therefore, they all connect to each other. The size of the flat contact area is actually the same for all contacts. The only difference between the 15, 30 & 45 amp contacts is the size of the receiving barrel that accepts the wire.

15 amp contacts are recommended for 20-16 gauge wire
30 amp contacts are recommended for 14-12 gauge wire
45 amp contacts are recommended for 10 gauge wire
