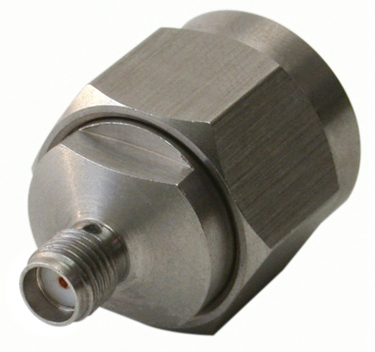

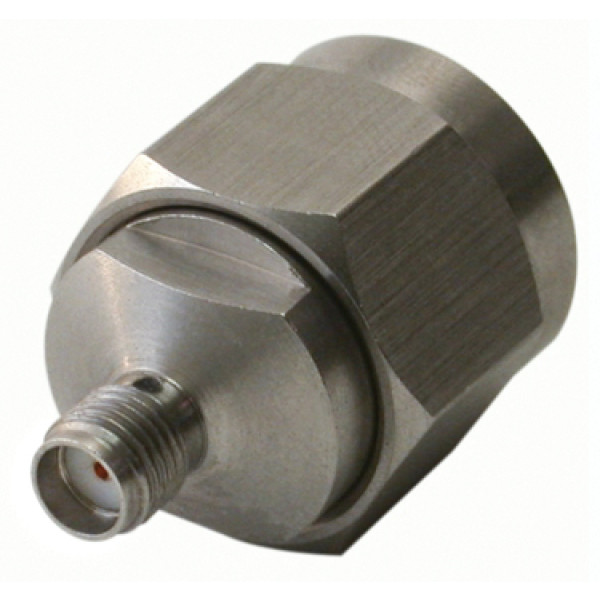

P2RSA-3778 RF Industries SMA Female to Type-N Male Between Series Precision Adapter DC-18 GHz

P2RSA-3778 RF Industries SMA Female to Type-N Male Between Series Precision Adapter DC-18 GHz

Precision test grade adapters feature passivated stainless steel construction for long life in environments where repetitive attachment to test equipment is required. All adapters are designed for outstanding electrical performance with low loss and low VSWR to 18 GHz. Test grade adapters are rugged and versatile for use in lab or field applications.  Suitable for use on Anritsu Site Master

Electrical:

• Velocity of Propagation .........................................70%
• Impedance .................................................................. 50 +/- 1 ohm
• Delay............................................................................ 115 ps @ 18 GHz
•  VSWR......................................................................... 1.2:1 max @ 18 GHz
•  Insertion Loss..............................................................-.2 dB max @ 18 GHz

Mechanical:

• Mating...............................................................¼ - 36 UNS Thread
• Interface...................................................................MIL-STD-348
•                                                                                  5/8-24 UNEF Thread
• Mating Cycles..........................................................500 min

Materials and finish:

• Body and Shell ........................................Passivated stainless steel
• Insulator ...................................................PTFE, epoxy captivated
• Contact ....................................................Gold plated BeCu

• Pin ................................................................ Gold plated Brass

MFR: RF Industries
