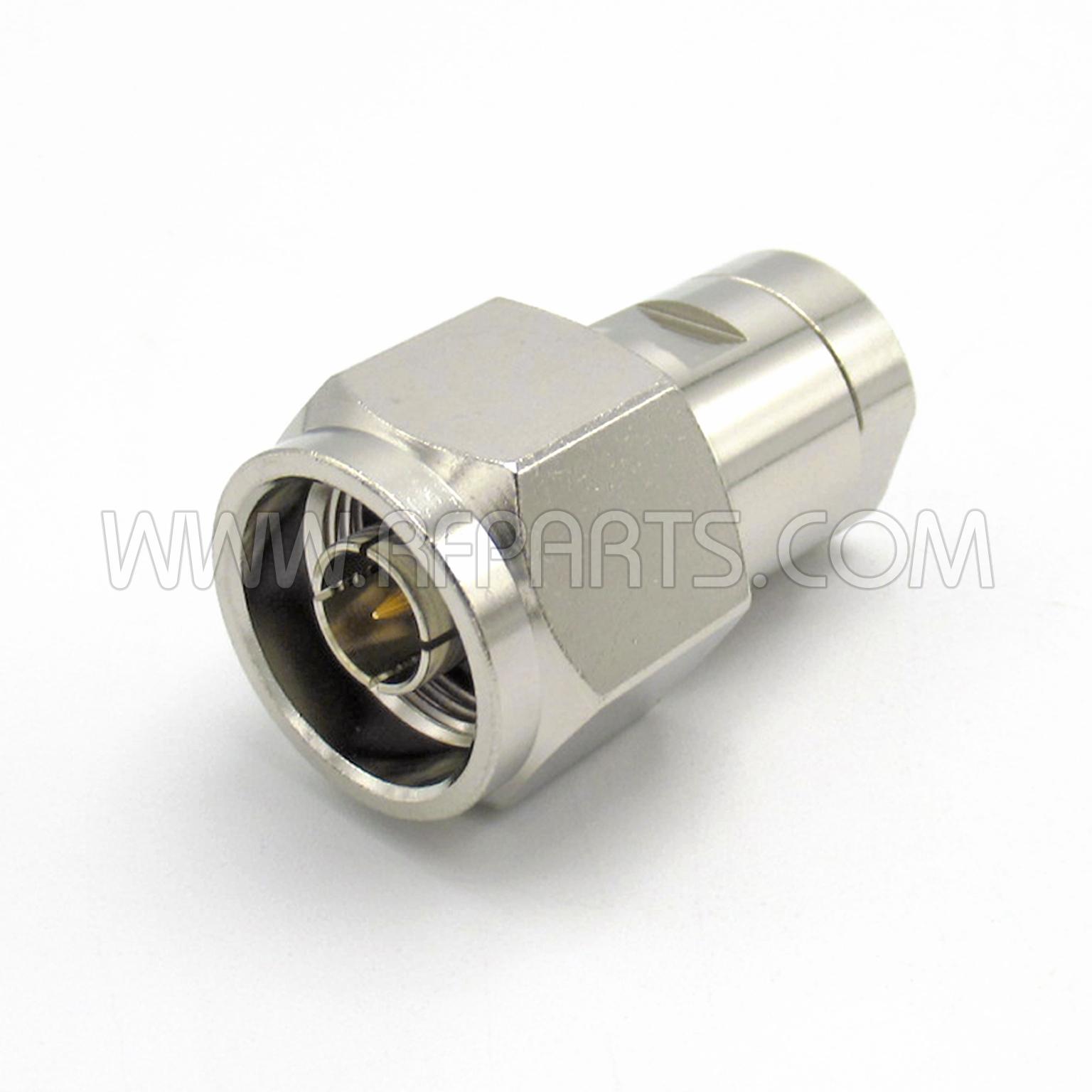

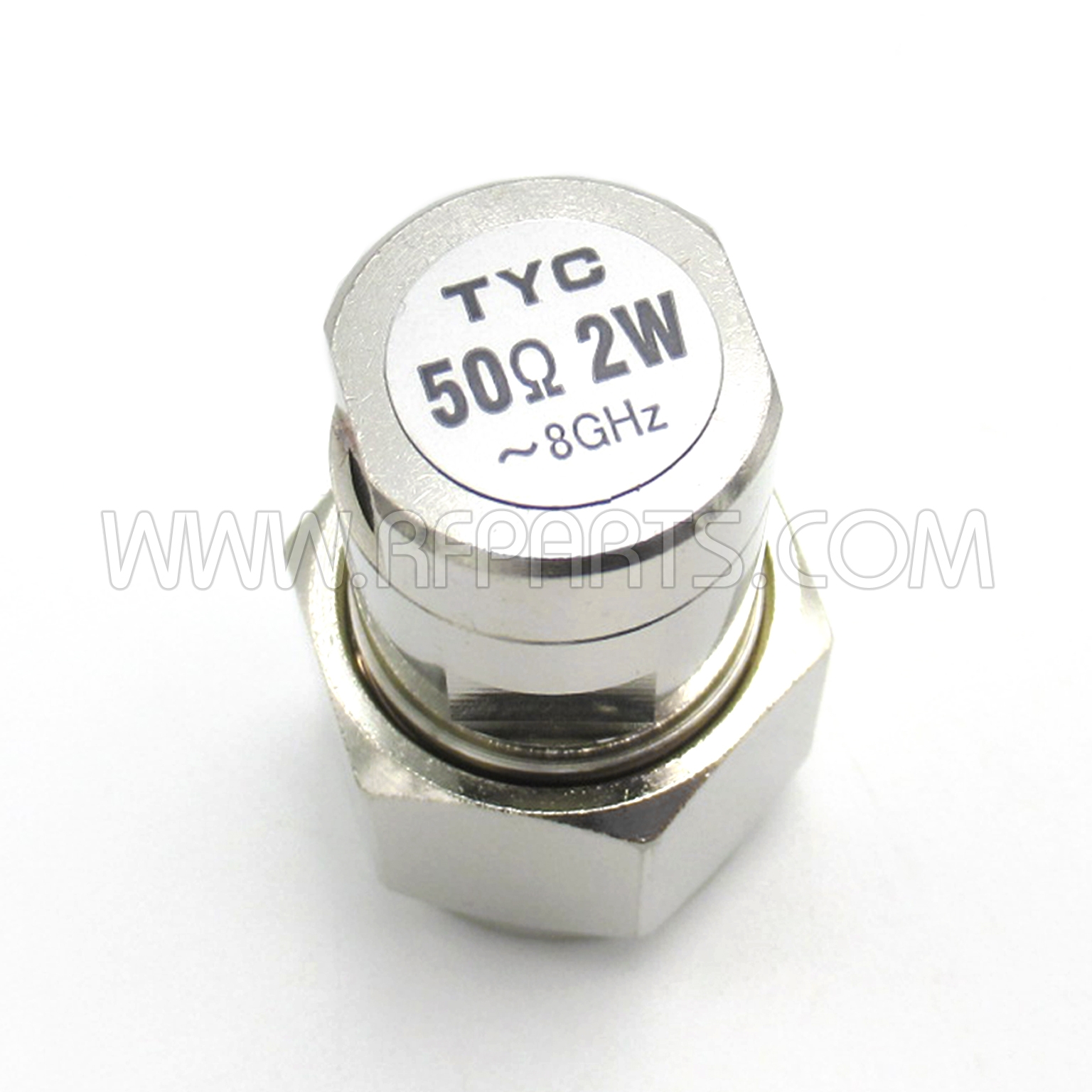

N50-2W TYC Type-N Male Dummy Load Termination 2 Watt IPx7
In Stock
$17.91
- Frequency - Max: 8 GHz
- Impedance: 50 Ohms
- Body: Nickel plated Brass
- Contact Material: Gold plated Brass
MFR: To-Conne Company, LTD.
Made in Taiwan
SKU: TYC30920
Details
N50-2W TYC Type-N Male Dummy Load Termination 2 Watt IPx7
N-type non-reflective terminator (termination). IPX7 waterproof specification. The mating part is a plug, and it is mainly used to fill the receptacle of equipment. It is a high-performance product that supports large-capacity power up to 2W and covers frequencies from DC to 8GHz. Voltage standing wave ratio (VSWR) is 1.2 or less (DC to 8GHz).
- Connector Style: N Type
- Connector Type: Plug, Male Pin
- Frequency - Max: 8 GHz
- Impedance: 50 Ohms
- Mounting Type: Free Hanging, Cap
- Body Finish: Nickel
- Contact Material: Brass
- Contact Finish: Gold
- Body Material: Brass
MFR: To-Conne Company, LTD.
Made in Taiwan
You may also be interested in the following product(s)
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | No |
| ISBN | No |
| NATO Stock Number | No |
| Manufacturer Part Number | No |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | To-Conne Company, LTD. |
