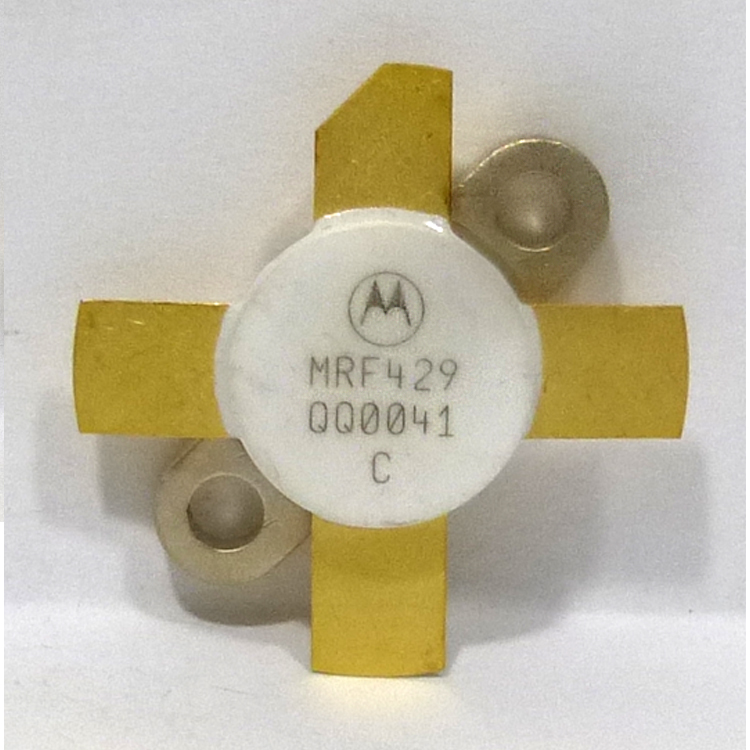

MRF429 Motorola NPN Silicon Transistor 150W (PEP) 30 MHz 50V (NOS)
Made in the USAIn Stock
$149.91
Designed primarily for high–voltage applications as a high–power linear amplifier from 2.0 to 30 MHz. Ideal for marine and base station equipment.
When ordering 50+ pieces, the order will require approval. This will take 1-2 days.
- Specified 50 V, 30 MHz Characteristics — Output power = 150 W (PEP), Minimum gain = 13 dB, Efficiency = 45%
- Intermodulation distortion @ 150 W (PEP) — IMD = –32 dB (Max)
- Diffused emitter resistors for superior ruggedness
- 100% tested for load mismatch at all phase angles with 30:1 VSWR @ 150 W CW
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF429-MOT
Details
MRF429 Motorola NPN Silicon Power Transistor 150W (PEP) 30 MHz 50V (NOS)
Designed primarily for high–voltage applications as a high–power linear amplifier from 2.0 to 30 MHz. Ideal for marine and base station equipment.
- Specified 50 V, 30 MHz Characteristics — Output power = 150 W (PEP), Minimum gain = 13 dB, Efficiency = 45%
- Intermodulation distortion @ 150 W (PEP) — IMD = –32 dB (Max)
- Diffused emitter resistors for superior ruggedness
- 100% tested for load mismatch at all phase angles with 30:1 VSWR @ 150 W CW
New Old Stock * No longer available for export
MFR: Motorola
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | Yes |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | Motorola |
| Condition | New |
| NOS | Yes |
| Call For Price | No |
| Manufacturer Name | FUTURE ELECTRONICS CORP |
