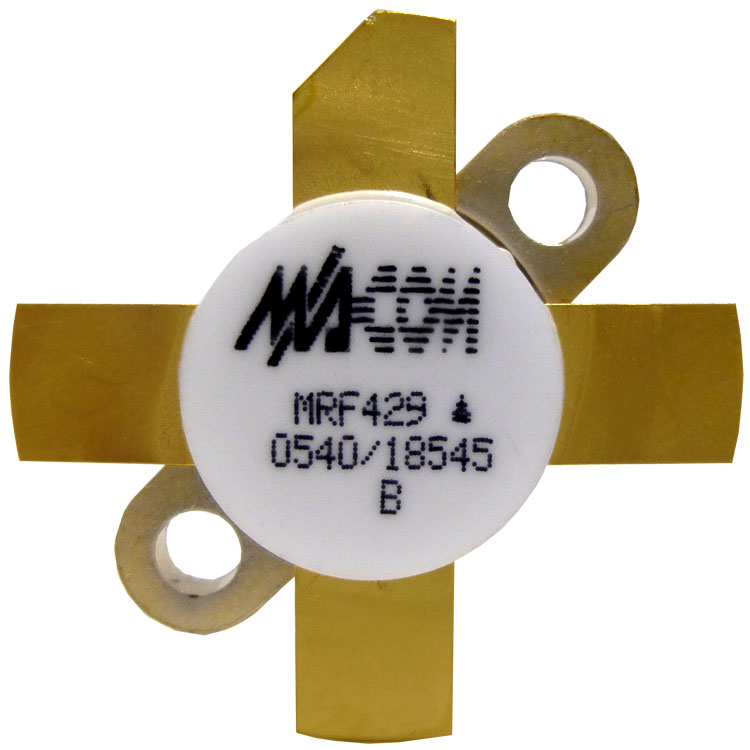

MRF429 M/A-COM NPN Silicon Power Transistor 150W (PEP) 30 MHz 50V

MRF429 M/A-COM NPN Silicon Power Transistor 150 W (PEP) 30 MHz 50 V

Designed primarily for high–voltage applications as a high–power linear amplifier from 2.0 to 30 MHz. Ideal for marine and base station equipment.

• Specified 50 V, 30 MHz Characteristics —  Output power = 150 W (PEP), Minimum gain = 13 dB, Efficiency = 45%
• Intermodulation distortion @ 150 W (PEP) —  IMD = –32 dB (Max)
• Diffused emitter resistors for superior ruggedness
• 100% tested for load mismatch at all phase angles with 30:1 VSWR @ 150 W C

MFR: M/A-COM
