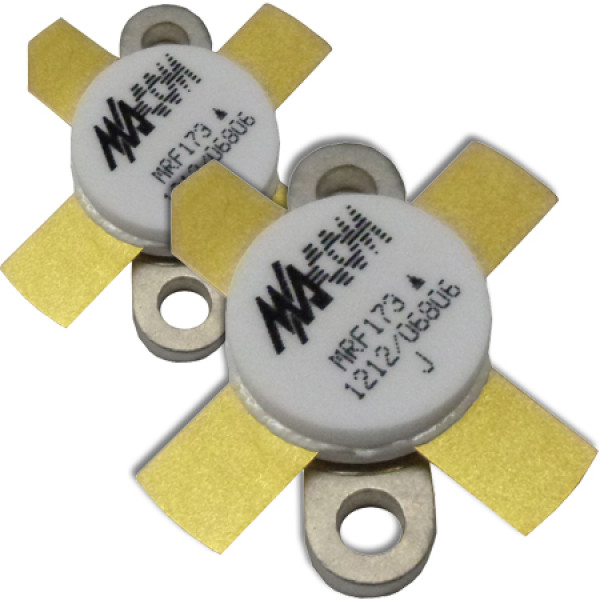

MRF173 M/A-COM RF MOFSET Transistor 80 watt 28v 175 MHz Matched Pair (2)

MRF173 M/A-COM RF MOFSET Transistor 80 watt 28v 175 MHz Matched Pair (2)

Designed for broadband commercial and military applications up to 200 MHz frequency range. The high–power, high–gain and broadband performance of this device make possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode MOSFET

• Guaranteed performance at 150 MHz, 28 V: Output power = 80 W, Gain = 11 dB (13 dB typ.), Efficiency = 55% min. (60% typ.)
• Low thermal resistance
• Ruggedness tested at rated output power
• Nitride passivated die for enhanced reliability
• Low noise figure — 1.5 dB typ at 2.0 A, 150 MHz
• Excellent thermal stability; suited for Class A operation

MRF: M/A-COM
