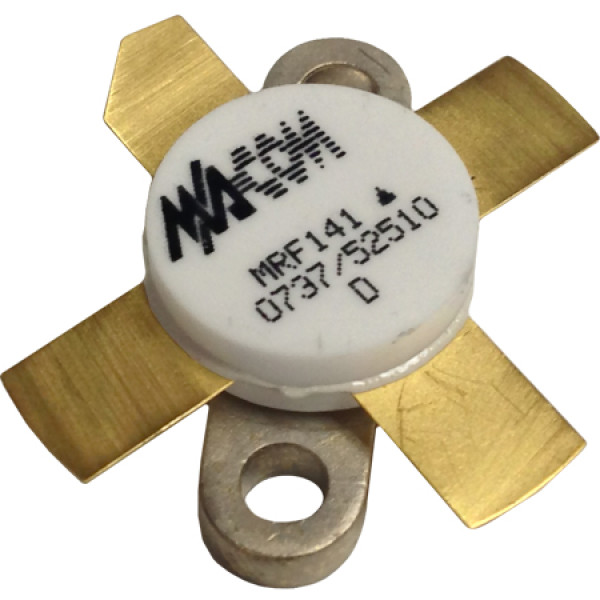

MRF141 M/A-COM Transistor RF Power FET 150W 175MHz 28V
In Stock
Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of this device is especially useful for FM broadcast or TV channel frequency band solid state transmitters and amplifiers.
- Guaranteed performance at 30 MHz, 28V: Output power: 150W Gain: 8dB (22dB Typ.) Efficiency: 40%
- Typical Performance at 175MHz, 50V: Output Power: 150 W Gain: 13 dB
- Low thermal resistance
- Ruggedness tested at rated output power
- Nitride passivated die for enhanced reliability
New Old Stock * No longer available for export
MFR: M/A-COM
SKU: MRF141-MA
Details
MRF141 M/A-COM Transistor RF Power FET 150W 175MHz 28V
Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of this device is especially useful for FM broadcast or TV channel frequency band solid state transmitters and amplifiers.
- Guaranteed performance at 30 MHz, 28V: Output power: 150W Gain: 8dB (22dB Typ.) Efficiency: 40%
- Typical Performance at 175MHz, 50V: Output Power: 150 W Gain: 13 dB
- Low thermal resistance
- Ruggedness tested at rated output power
- Nitride passivated die for enhanced reliability
New Old Stock * No longer available for export
MFR: M/A-COM
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | FIRST SOURCE INC. |
