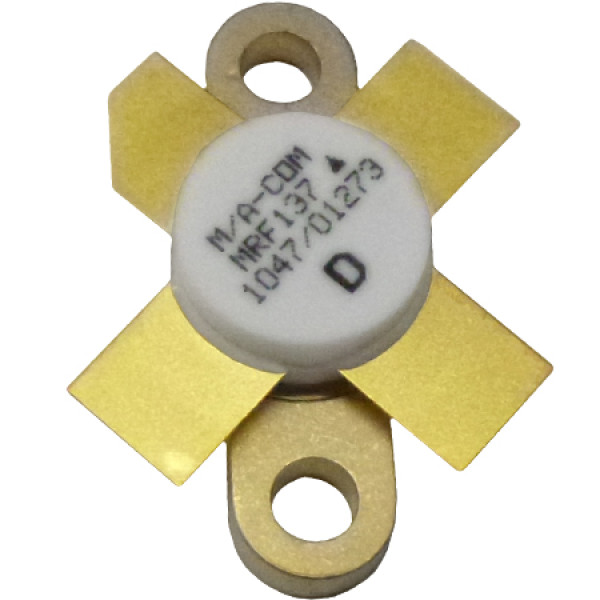

MRF137 M/A-COM Transistor 30W 28V 400 MHz
In Stock
Designed for wideband large signal output and drive stages Product Image up to 400 MHz range. N–Channel enhancement mode
• Guaranteed 28 V, 150 MHz performance Output power = 30 W Minimum gain = 13 dB Efficiency — 60% (Typical)
• Small– and large–signal characterization
• Typical performance at 400 MHz, 28 Vdc, 30 W output = 7.7 dB gain
• 100% tested for load mismatch at all phase angles with 30:1 VSWR
• Low noise figure — 1.5 dB (typ.) at 1.0 A, 150 MHz
• Excellent thermal stability, ideally suited for Class A operation
• Facilitates manual gain control, ALC and modulation techniques
Limit, 10 per customer.
MFR: M/A-COM
Details
MRF137 M/A-COM Transistor, 30 Watt, 28 Volt 400 MHz
Designed for wideband large signal output and drive stages Product Image up to 400 MHz range. N–Channel enhancement mode
• Guaranteed 28 V, 150 MHz performance Output power = 30 W Minimum gain = 13 dB Efficiency — 60% (Typical)
• Small– and large–signal characterization
• Typical performance at 400 MHz, 28 Vdc, 30 W output = 7.7 dB gain
• 100% tested for load mismatch at all phase angles with 30:1 VSWR
• Low noise figure — 1.5 dB (typ.) at 1.0 A, 150 MHz
• Excellent thermal stability, ideally suited for Class A operation
• Facilitates manual gain control, ALC and modulation techniques
MFR: M/A-COM
Additional Information
| Featured Product | No |
|---|---|
| Made in the USA | No |
| GTIN | N/A |
| ISBN | N/A |
| NATO Stock Number | N/A |
| Manufacturer Part Number | N/A |
| Manufacturer | No |
| Condition | New |
| NOS | No |
| Call For Price | No |
| Manufacturer Name | FIRST SOURCE INC. |
